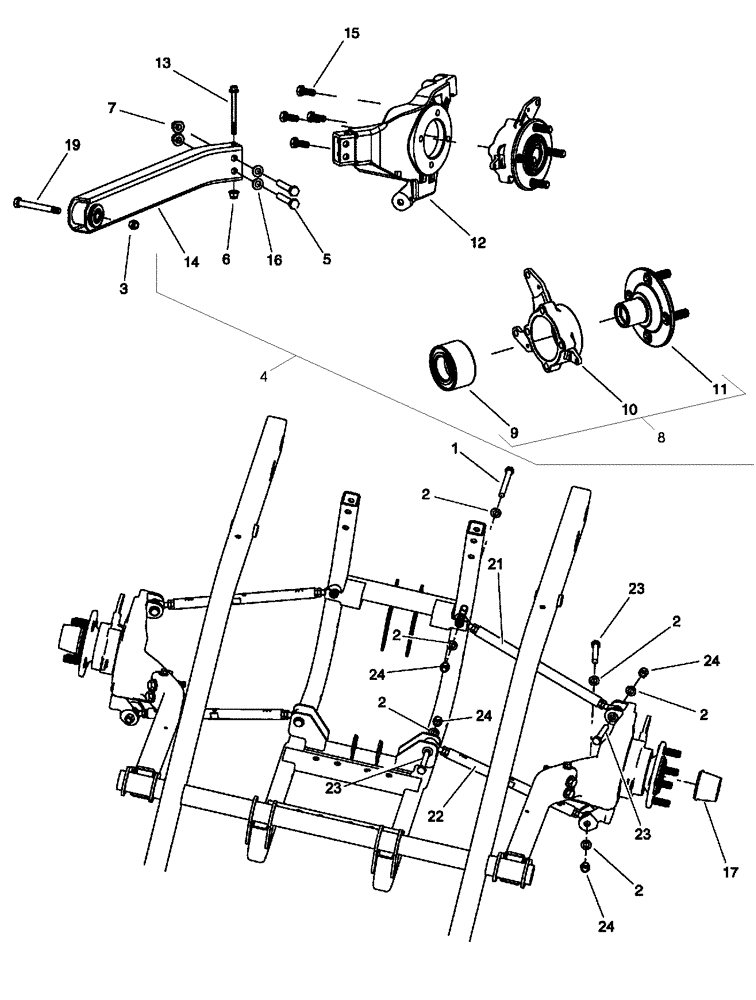

Запчасти Case IH SCOUT (48.114.01) - REAR SUSPENSION (48) - TRACKS & TRACK SUSPENSION

1

CLC8755

SCREW

2шт.

2

CLC1011990

WASHER

16шт.

3

CLC102620501

FLANGE NUT

2шт.

4

CLC103137601

ARM

Right Hand, Inc. 5-16

1шт.

4

CLC103145901

ARM

Left Hand, Inc. 5-16

1шт.

5

CLC101936101

SCREW

2шт.

6

CLC102618601

LOCK NUT

1шт.

7

CLC102670701

NUT

2шт.

8

CLC103105401

HUB

Inc. 9-11

1шт.

9

CLC102464301

BEARING ASSY

1шт.

10

CLC103105401

HUB

Bearing, Rear

1шт.

11

CLC103146201

HUB

Rear

1шт.

12

CLC103146101

ANCHOR

Trailing Arm, Right Hand

1шт.

13

CLC103146801

FLANGE BOLT

1шт.

14

CLC103146901

ARM

Swing

1шт.

15

CLC103147201

BOLT

4шт.

16

CLC96741046

WASHER

2шт.

17

CLC103145701

CAP

Wheel, Rubber

2шт.

18

CLC103146401

SLEEVE

Link, Short, (Not Shown)

2шт.

19

CLC103146501

FLANGE BOLT

2шт.

20

CLC103534001

SPACER

Lat-Link, (Not Shown)

14шт.

21

CLC103534402

LINK

Rear

2шт.

22

CLC103534403

LINK

Chrome

2шт.

23

CLC2402

SCREW

6шт.

24

CLC8754

LOCK NUT

8шт.
