(48.110.01) - FRONT SUSPENSION

Запчасти Case IH SCOUT (48.110.01) - FRONT SUSPENSION (48) - TRACKS & TRACK SUSPENSION

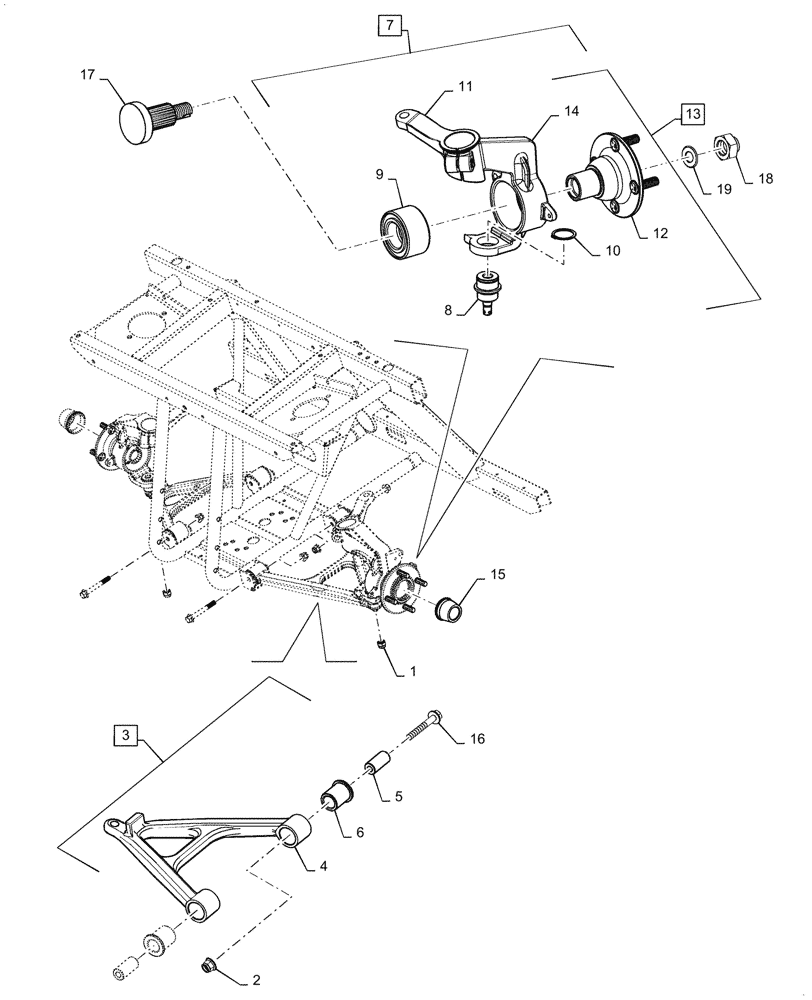

Схема запчастей Case IH SCOUT - (48.110.01) - FRONT SUSPENSION (48) - TRACKS & TRACK SUSPENSION
2
5
9
3
16
1
14
15
7
11
18
17
4
10
13
6
12
19
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

CLC102022901

LOCK NUT

M12 - 1.25, Nylon

2шт.

2

CLC102670701

NUT

M10 x 1.5, Nylon

4шт.

3

CLC103077201

ARM

A, Incl 4 - 6

2шт.

4

NSS

NOT SOLD SEPARAT

A - Arm, Incl in 3

1шт.

5

CLC103145801

SLEEVE

A - Arm

2шт.

6

CLC103148501

BUSHING

A - Arm, Front

2шт.

7

CLC103105101

BRACKET, SUPPORTING

Upright, RH, Incl 8 - 12

1шт.

8

CLC102361901

BALL JOINT

2шт.

9

CLC102464301

BEARING ASSY

2шт.

10

CLC102722301

RING

Retaining, 1-1/4" ID

2шт.

11

NSS

NOT SOLD SEPARAT

Strut, RH, Incl in 7

1шт.

12

CLC103147501

HUB

Wheel, Front

2шт.

13

CLC103105201

BRACKET, SUPPORTING

Upright, LH, Incl 8 - 10, 12, 14

1шт.

14

NSS

NOT SOLD SEPARAT

Strut, LH, Incl in 13

1шт.

15

CLC103145701

CAP

Wheel, Rubber

2шт.

16

CLC103147001

FLANGE BOLT

M10 x 1.5 x 80mm L

4шт.

17

CLC103444301

SHAFT

Retention, Front

2шт.

2WD Only

1шт.

18

CLC103596301

NUT

Halfshaft, M18

2шт.

19

CLC103600701

WASHER

18mm ID

2шт.
