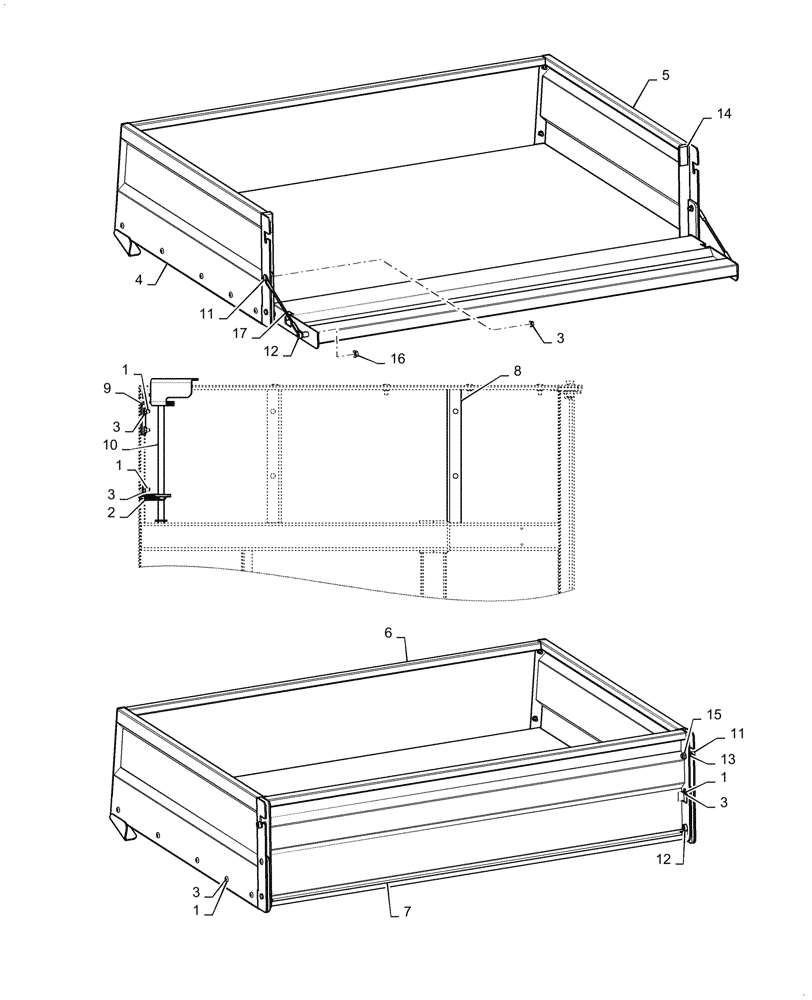

Запчасти Case IH SCOUT (39.100.01) - PICK-UP BOX (39) - FRAMES AND BALLASTING

1

CLC1014415

SCREW

1/4" - 20 X 3/4" L

25шт.

2

CLC1015391

LATCH

Spring Tilt

1шт.

3

CLC101835601

LOCK NUT

1/4" - 20

27шт.

4

CLC103433303

PANEL

Driver, Bed

1шт.

5

CLC103433304

PANEL

Passenger, Bed

1шт.

6

CLC103434202

PANEL

Front, Bed

1шт.

7

CLC103434502

TAILGATE

Bed

1шт.

8

CLC103435001

BRACKET

Bottom

1шт.

9

CLC103436301

BRACKET

Bed Latch

1шт.

10

CLC103436401

BRACKET

Handle

1шт.

11

CLC103487501

SCREW

1/4" - 20 x 1" L

2шт.

12

CLC103522502

M10 x 20mm L

2шт.

13

CLC103587201

BUSHING

12.7mm ID x 15.9mm OD

2шт.

14

CLC103587301

BUSHING

10mm ID x 16mm L

2шт.

15

CLC103595501

3шт.

16

CLC103602301

FLANGE NUT

M8 x 1.25

2шт.

17

CLC103787201

STRAP

Tether, Tailgate

2шт.
