(33.202.02[02]) - ACCELERATOR PEDAL, BRAKE PEDAL (AFTER AUG 1, 2011)

Запчасти Case IH SCOUT (33.202.02[02]) - ACCELERATOR PEDAL, BRAKE PEDAL (AFTER AUG 1, 2011) (33) - BRAKES & CONTROLS

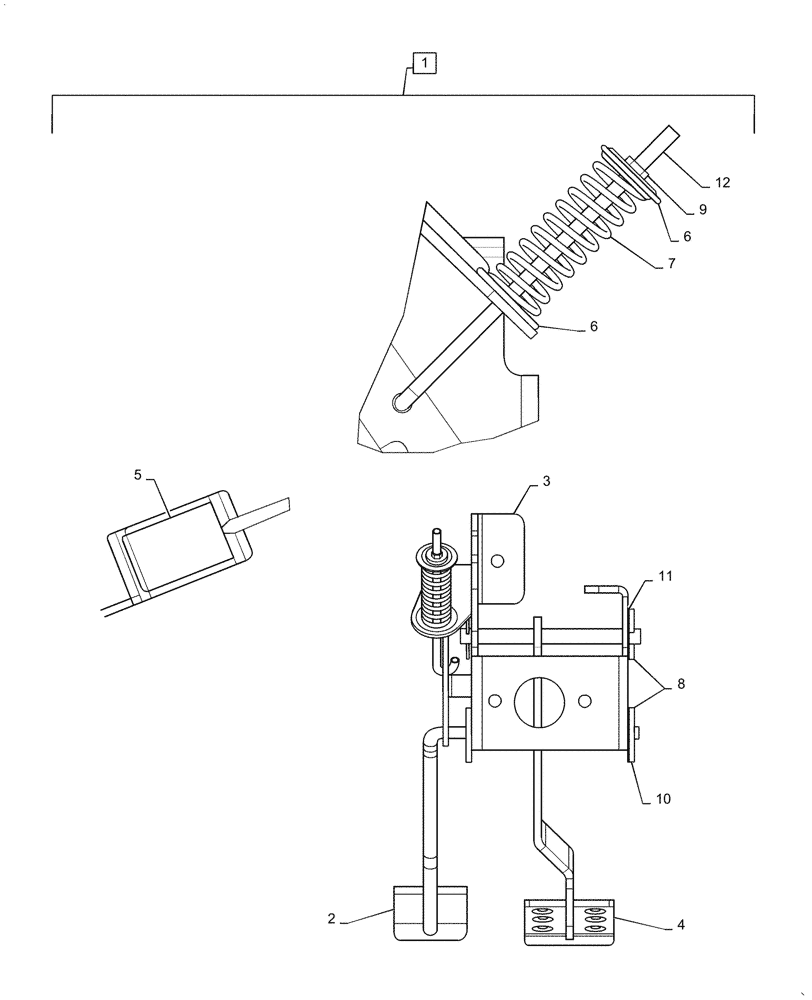

Схема запчастей Case IH SCOUT - (33.202.02[02]) - ACCELERATOR PEDAL, BRAKE PEDAL (AFTER AUG 1, 2011) (33) - BRAKES & CONTROLS
9
6
7
11
4
1
3
5
6
10
2
12
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

CLC103816801

PEDAL

Accelerator/Brake, Assy, Incl 2 - 12

1шт.

2

CLC103799501

PEDAL

Accelerator

1шт.

3

CLC103798701

BRACKET

Accelerator Pedal

1шт.

4

CLC103461601

PEDAL

Brake, 6 Hole

1шт.

5

CLC102479301

PAD

Brake Pedal

1шт.

6

CLC102461401

SPRING

Retaining

2шт.

7

CLC102445201

SPRING

Pedal Pullrod

1шт.

8

CLC102323101

SPRING

Bow Tie Locking Pin

4шт.

9

CLC102296401

NUT

M6 x 1.0

1шт.

10

CLC96741046

WASHER

M10

2шт.

11

CLC96701412

WASHER

M12

2шт.

12

CLC103923301

ROD

Accelerator Return

1шт.
