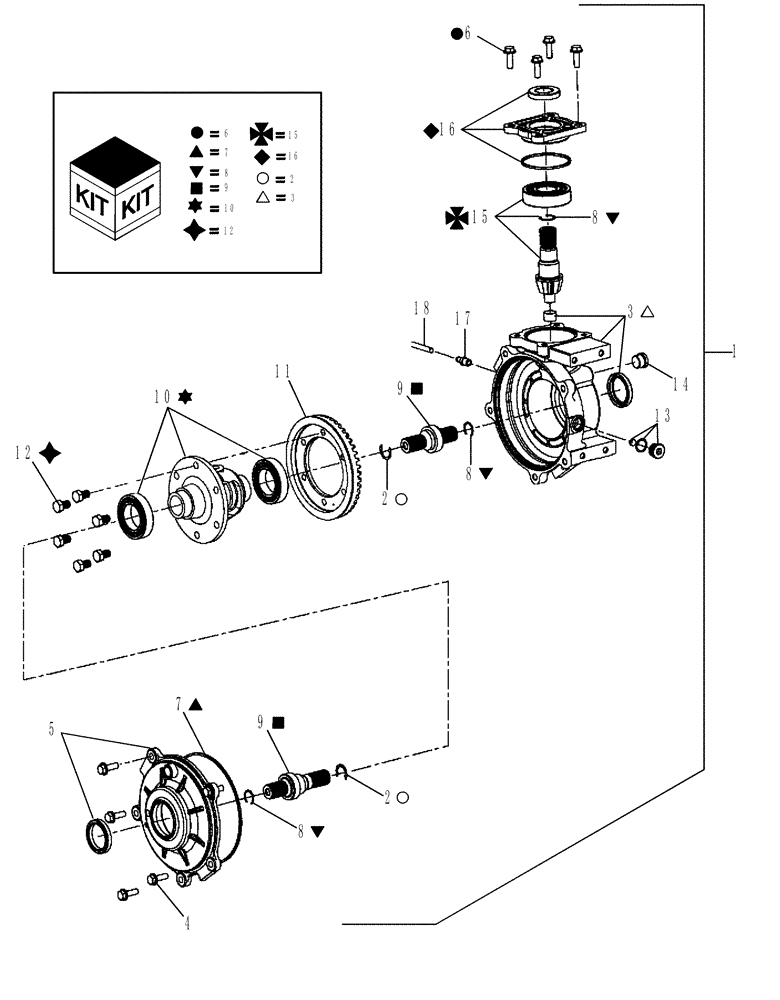

Запчасти Case IH SCOUT (21.184.01) - FRONT DIFFERENTIAL (21) - TRANSMISSION

1

CLC103416801

DIFFERENTIAL

Front, Model Year 2011 And Prior, Inc. 2-17

1шт.

1

CLC103787001

DIFFERENTIAL

Front, Model Year 2012

1шт.

2

CLC103569601

CIRCLIP

Internal Retaining Ring

1шт.

3

CLC103569501

KIT

Gearcase Assembly

1шт.

4

CLC102491001

BOLT

3/8-16 X 1.0 With Loctite

4шт.

5

CLC103568201

COVER

Output

1шт.

6

CLC103568301

KIT

Cover Bolt

1шт.

7

CLC103568401

KIT

Seal

1шт.

8

CLC103568501

KIT

External Retaining Ring, Qty 3, 1 For Input And 2 For Output Shaft

1шт.

9

CLC103568601

KIT

Stub Shaft

2шт.

10

CLC103568701

KIT

Open Differential

1шт.

11

CLC103568801

RING GEAR

1шт.

12

CLC103568901

BOLT

Ring Gear Bolt

1шт.

13

CLC103569001

DRAIN PLUG

1шт.

14

CLC103569101

PLUG

3/4-16 Hollow Head

1шт.

15

CLC103569201

KIT

Pinion Gear

1шт.

16

CLC103569301

KIT

Input Cover

1шт.

17

CLC103569401

FITTING

1шт.

18

CLC103601001

HOSE

Front Differential

1шт.

19

CLC103835901

SWITCH

SPST, Rocker, 4 x 4 (Not Shown)

1шт.
