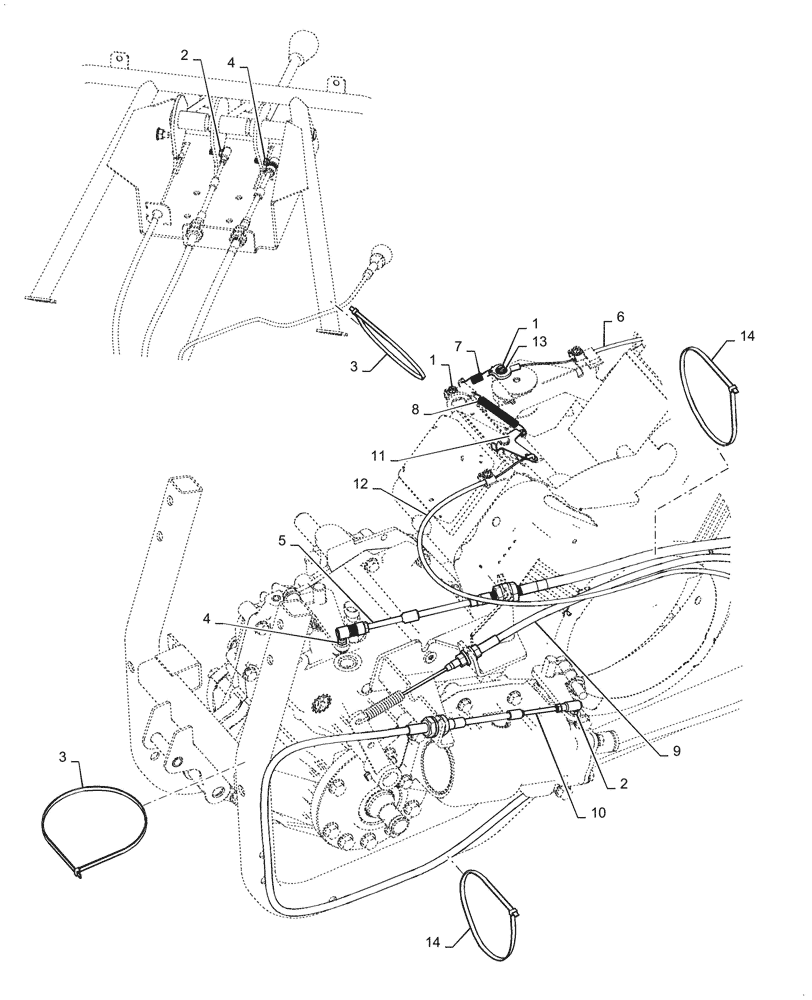

Запчасти Case IH SCOUT (21.135.02[02]) - CONTROL CABLES, 4WD (BEFORE AUG 1 2011) (21) - TRANSMISSION

1

CLC1012126

SCREW

#10 - 32 x 5/8" L

2шт.

2

CLC1012333

BALL JOINT

#10 - 32

2шт.

3

CLC102025401

SECURING STRAP

Tie Wrap, Heavy Duty

1шт.

4

CLC102615801

BALL JOINT

11/32" OD

2шт.

5

CLC103106401

CABLE

Transmission

1шт.

6

CLC103433201

CABLE

Choke

1шт.

7

CLC103481901

SPRING

9mm OD

1шт.

8

CLC103595601

SPRING

7mm OD x 55mm L

1шт.

9

CLC103599301

CABLE

Transmission, Differential Lock

1шт.

10

CLC103600201

CABLE

Transaxle, 3228mm L

1шт.

11

CLC103618701

BRACKET, SUPPORTING

Spring

1шт.

12

CLC103806801

CABLE

Accelerator

1шт.

When Ordering Cable CLC103799001, Also Order P/N CLC103799101, CLC103799201, CLC103799401

1шт.

13

CLC183

WASHER

#10

1шт.

14

CLC8639

STRAP

Tie

13шт.
