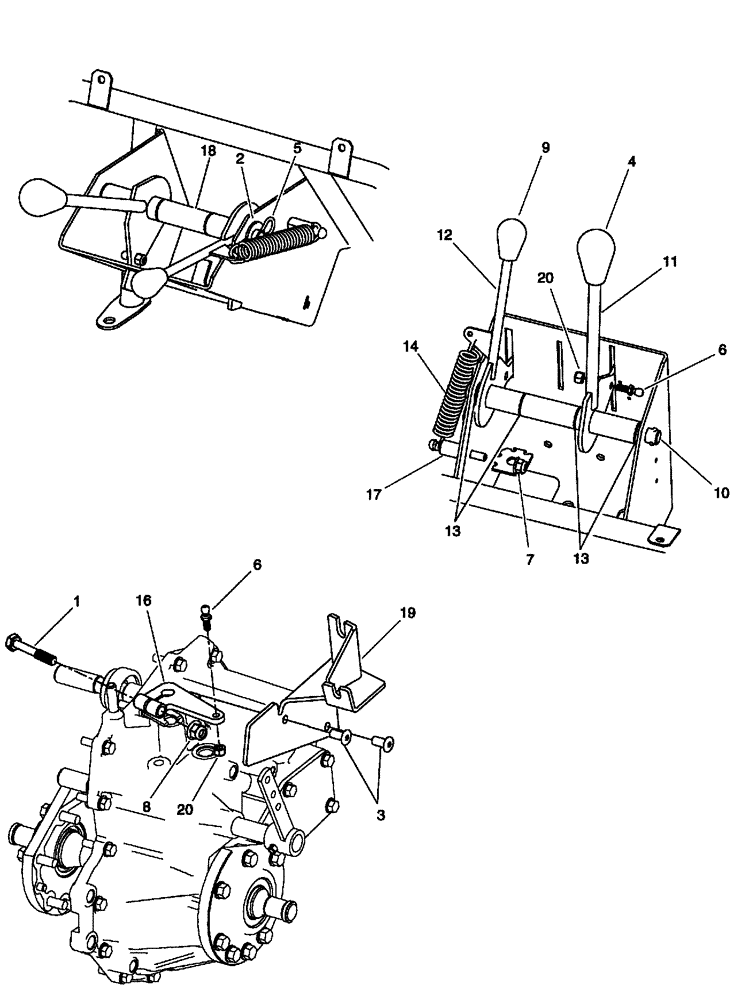

Запчасти Case IH SCOUT (21.135.01[02]) - FORWARD/REVERSE SHIFTER - 2WD (21) - TRANSMISSION

1

CLC96704960

BOLT

M10 X 1.5 X 60

1шт.

2

CLC1010193

WASHER

5/8 Type A Plain Flat

1шт.

3

CLC1016074

SCREW

M8-1.25 X 18mm

2шт.

4

CLC102376001

KNOB

1шт.

5

CLC102518901

PIN

Bow Tie 0.120 X 2.750

1шт.

6

CLC102615701

BALL

Stud, .346 Dia

2шт.

7

CLC102618601

LOCK NUT

M8 X 1.25 Nylon

1шт.

8

CLC102670701

NUT

M10 X 1.5 Nylon

1шт.

9

CLC103114801

KNOB

32mm Dia

1шт.

10

CLC103134001

PIN

Shifter, Controls, Model Year 2011 And Prior

1шт.

11

CLC103419201

BRACKET

Shifter, Dash

1шт.

10

CLC103893801

SHAFT

Shifter, Controls, Model Year 2012

1шт.

12

CLC103419501

BRACKET

Shifter, Differential

1шт.

13

CLC103420201

BUSHING

Flange

4шт.

14

CLC103420301

SPRING

22mm X 119mm

1шт.

15

CLC103430901

ACCESS COVER

Shifter

1шт.

16

CLC103438001

BRACKET

Lever

1шт.

17

CLC103482301

STUD

Mounting, Spring

1шт.

18

CLC103585201

SPACER

16.5 Id X 58mm

1шт.

19

CLC103597401

BRACKET

Cable, Model Year 2011 And Prior

1шт.

20

CLC8717

LOCK NUT

1/4-28 Nylon Insert

2шт.

19

CLC103597402

BRACKET

Cable, Model Year 2012

1шт.

21

CLCSVP1243101

KNOB

Billet Shifter, Plain, (Not Shown)

1шт.

21

CLCSVP1243103

KNOB

Billet Shifter, 4 x 4, (Not Shown)

1шт.
