(21.100.02[08]) - TRANSAXLE - 2WD AND 4WD (CONTINUED)

Запчасти Case IH SCOUT (21.100.02[08]) - TRANSAXLE - 2WD AND 4WD (CONTINUED) (21) - TRANSMISSION

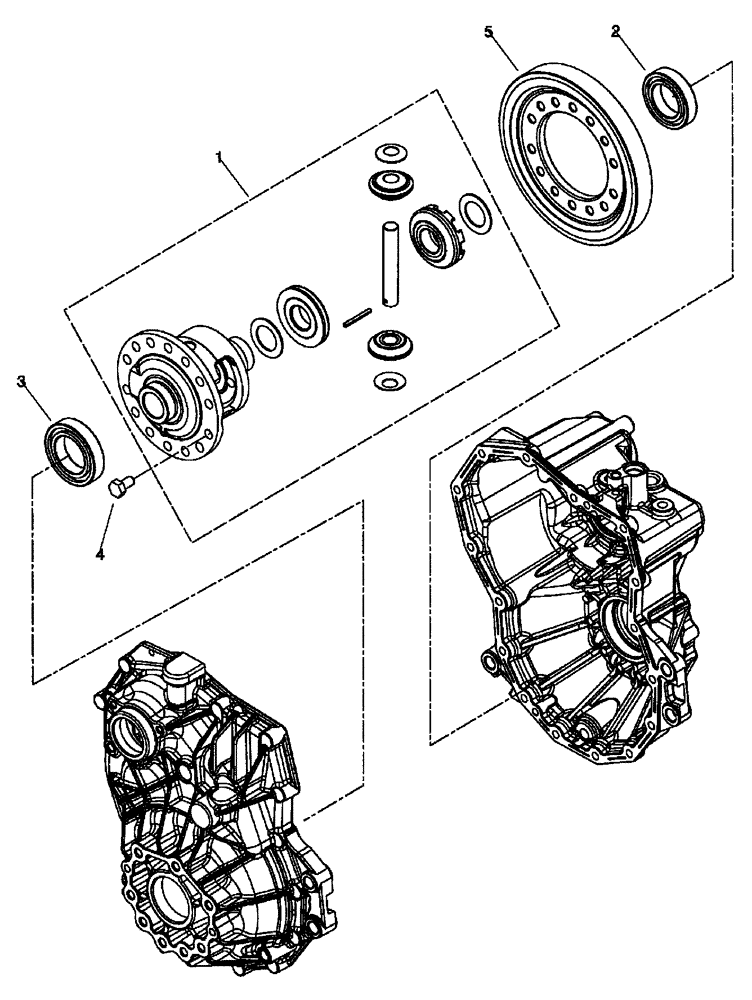

Схема запчастей Case IH SCOUT - (21.100.02[08]) - TRANSAXLE - 2WD AND 4WD (CONTINUED) (21) - TRANSMISSION
3
2
5
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

CLC103610501

DIFFERENTIAL ASSY

1шт.

2

CLC103610701

BEARING ASSY

Differential

1шт.

3

CLC103610801

BEARING ASSY

Differential

1шт.

4

CLC103610901

BOLT

10X20

14шт.

5

CLC103611701

GEAR

1шт.
