(21.100.02[07]) - TRANSAXLE - 2WD AND 4WD (CONTINUED)

Запчасти Case IH SCOUT (21.100.02[07]) - TRANSAXLE - 2WD AND 4WD (CONTINUED) (21) - TRANSMISSION

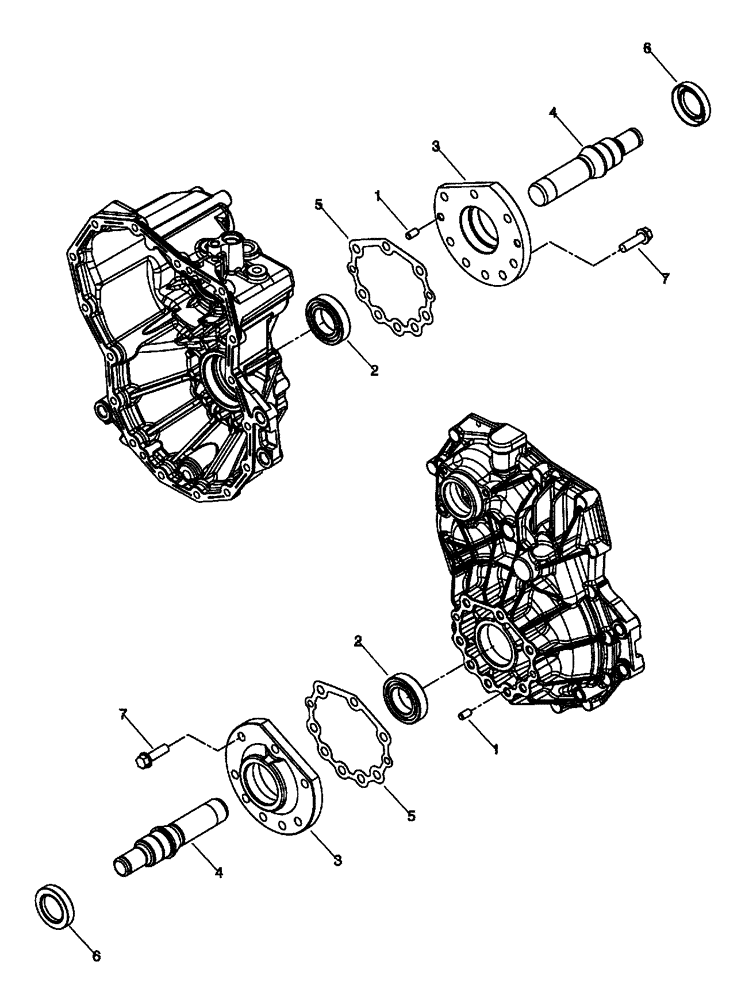

Схема запчастей Case IH SCOUT - (21.100.02[07]) - TRANSAXLE - 2WD AND 4WD (CONTINUED) (21) - TRANSMISSION
7
1
7
5
6
1
2
4
6
4
5
3
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

CLC103603301

PIN

8X14, Transaxle

4шт.

2

CLC103608801

BEARING ASSY

Transaxle

2шт.

3

CLC1036098

AXLE HOUSING

2шт.

4

CLC103609901

HALF SHAFT

Axle

2шт.

5

CLC103610001

PACKING

Axle Housing

2шт.

6

CLC103610101

SEAL

2шт.

7

CLC103610201

BOLT

10X35

16шт.
