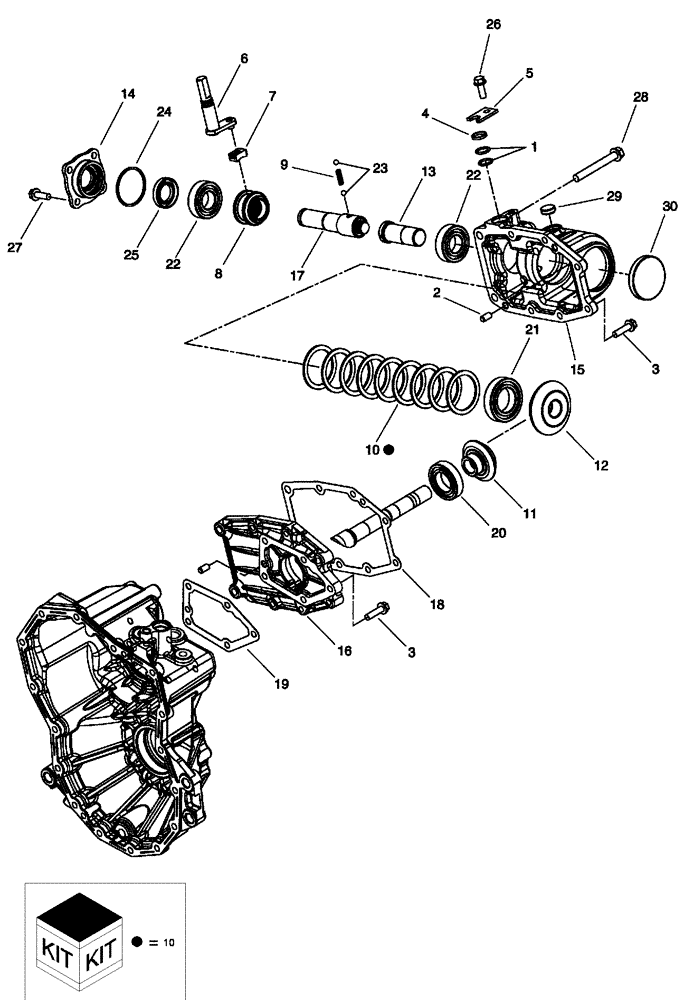

Запчасти Case IH SCOUT (21.100.02[06]) - TRANSAXLE - 4WD (CONTINUED) (21) - TRANSMISSION

1

CLC103603101

PACKING

Transaxle

2шт.

2

CLC103603301

PIN

8X14, Transaxle

2шт.

3

CLC103603501

BOLT

M8X30

11шт.

4

CLC103606801

COLLAR

Shift Arm

1шт.

5

CLC103606901

PLATE

Keep, Transaxle

1шт.

6

CLC103607301

ARM

Shift

1шт.

7

CLC103607401

BLOCK

Shift

1шт.

8

CLC103607501

COLLAR

Front Shift

1шт.

9

CLC103607601

SPRING

1шт.

10

CLC103607701

KIT

Shim

1шт.

11

CLC103607801

GEAR

Front Drive

1шт.

12

CLC103607901

GEAR

Front Drive

1шт.

13

CLC103608001

SHAFT

Front Drive

1шт.

14

CLC103608101

CAP

Front Drive

1шт.

15

CLC103608201

CASE

Front Drive

1шт.

16

CLC103608301

COVER

Front Drive

1шт.

17

CLC103608401

SHAFT

Transaxle

1шт.

18

CLC103608501

PACKING

Front Drive

1шт.

19

CLC103608601

PACKING

Front

1шт.

20

CLC103608701

BEARING ASSY

Front

1шт.

21

CLC103608801

BEARING ASSY

Transaxle

1шт.

22

CLC103608901

BEARING ASSY

Front

2шт.

23

CLC103609001

BALL

2шт.

24

CLC103609101

PACKING

Front

1шт.

25

CLC103609201

SEAL

Front

1шт.

26

CLC103609201

SEAL

Front

1шт.

27

CLC103609401

BOLT

Front

4шт.

28

CLC103609501

BOLT

Front

2шт.

29

CLC103609601

CAP

Sealing, Front

1шт.

30

CLC103609701

CAP

Sealing, Front

1шт.
