(21.100.02[03]) - TRANSAXLE - 4WD (CONTINUED)

Запчасти Case IH SCOUT (21.100.02[03]) - TRANSAXLE - 4WD (CONTINUED) (21) - TRANSMISSION

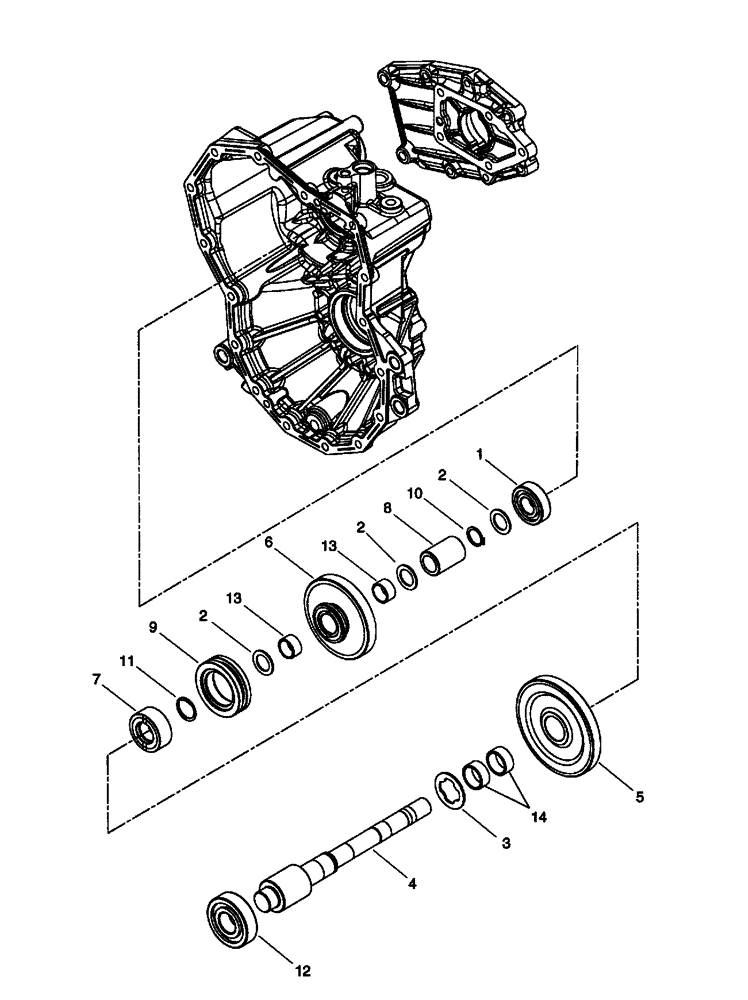

Схема запчастей Case IH SCOUT - (21.100.02[03]) - TRANSAXLE - 4WD (CONTINUED) (21) - TRANSMISSION
4
3
2
2
1
10
8
2
13
12
7
13
6
14
5
11
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

CLC103604101

BEARING ASSY

Transaxle

1шт.

2

CLC103604301

WASHER

20X30X1.6, Reduction Shaft

3шт.

3

CLC103604401

WASHER

25X44X2, Reduction Shaft

1шт.

4

CLC103604501

SHAFT

Reduction

1шт.

5

CLC103604601

GEAR

Reduction, Forward

1шт.

6

CLC103604701

GEAR

Reduction, Reverse

1шт.

7

CLC103604801

COLLAR

Spline, Reduction Shaft

1шт.

8

CLC103604901

COLLAR

Reduction Shaft

1шт.

9

CLC103605001

SHIFTING UNIT

Reduction Shaft

1шт.

10

CLC103605101

RING GEAR

Transaxle

1шт.

11

CLC103605201

RING GEAR

Reduction Shaft

1шт.

12

CLC103605301

BEARING ASSY

Reduction Shaft

1шт.

13

CLC103605401

NEEDLE BEARING

Reduction Shaft

1шт.

14

CLC103605501

NEEDLE BEARING

Transaxle

2шт.
