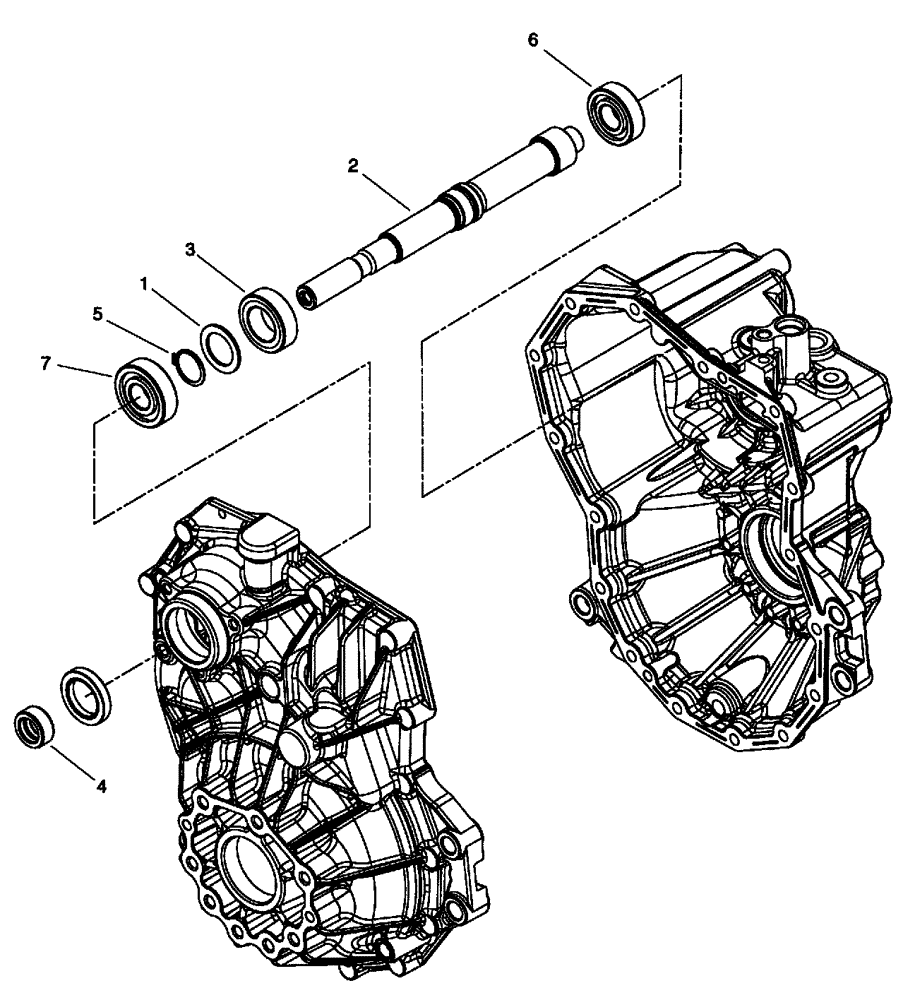

Запчасти Case IH SCOUT (21.100.02[02]) - TRANSAXLE - 2WD AND 4WD (CONTINUED) (21) - TRANSMISSION

1

CLC103603601

WASHER

27mm ID x 40mm OD x 2mm Thk

1шт.

2

CLC103603701

SHAFT

Input, Transaxle

1шт.

3

CLC103603801

GEAR

Input

1шт.

4

CLC103603901

SLEEVE

20mm ID x 30mm OD x 13mm Thk

1шт.

5

CLC103604001

RING

1шт.

6

CLC103604101

BEARING ASSY

Transaxle

1шт.

7

CLC103604201

BEARING ASSY

1шт.
