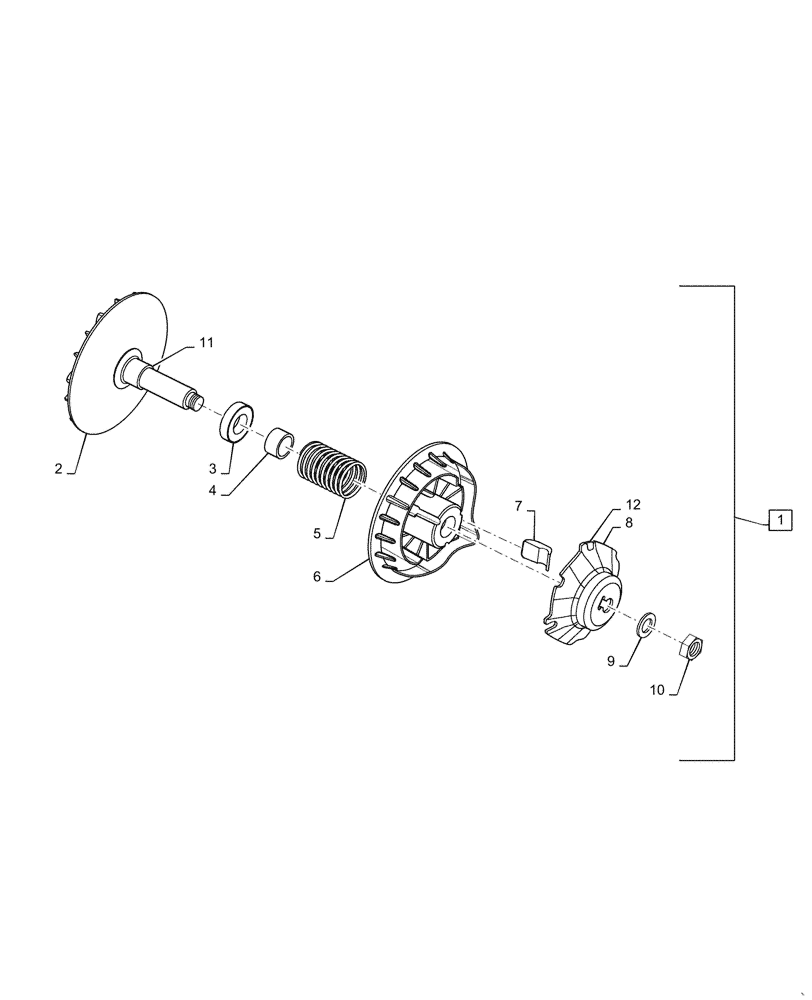

Запчасти Case IH SCOUT (18.110.02) - DRIVE CLUTCH (18) - CLUTCH

1

CLC103414401

CLUTCH

Drive, Inc. 2-10

1шт.

1

CLC103869801

CLUTCH

Drive, Inc. 2-12, ASN YBXCB5498 And YBXCC5008

1шт.

2

CLC103518501

DRIVEN PLATE

Fixed Flange

1шт.

3

CLC103518601

SPRING SEAT

Drive

1шт.

4

CLC103518701

STOP

Drive

1шт.

5

CLC103518801

SPRING

Drive

1шт.

6

CLC103518901

FLANGE

Sliding, Drive

1шт.

7

CLC103519001

BLOCK

6шт.

8

CLC103519101

CAP

1шт.

9

CLC103519201

LOCK WASHER

1шт.

10

CLC103519301

NUT

1шт.

11

CLC103683401

BEARING

ASN YBXCB5498 And YBXCC5008

1шт.

12

CLC103683701

GUIDE

ASN YBXCB5498 And YBXCC5008

3шт.

13

CLC103414001

BOLT

Retaining (Not Shown)

1шт.

14

CLC103414601

WASHER

Retaining (Not Shown)

1шт.
