(10.406.01) - ENGINE SHROUD

Запчасти Case IH SCOUT (10.406.01) - ENGINE SHROUD (10) - ENGINE

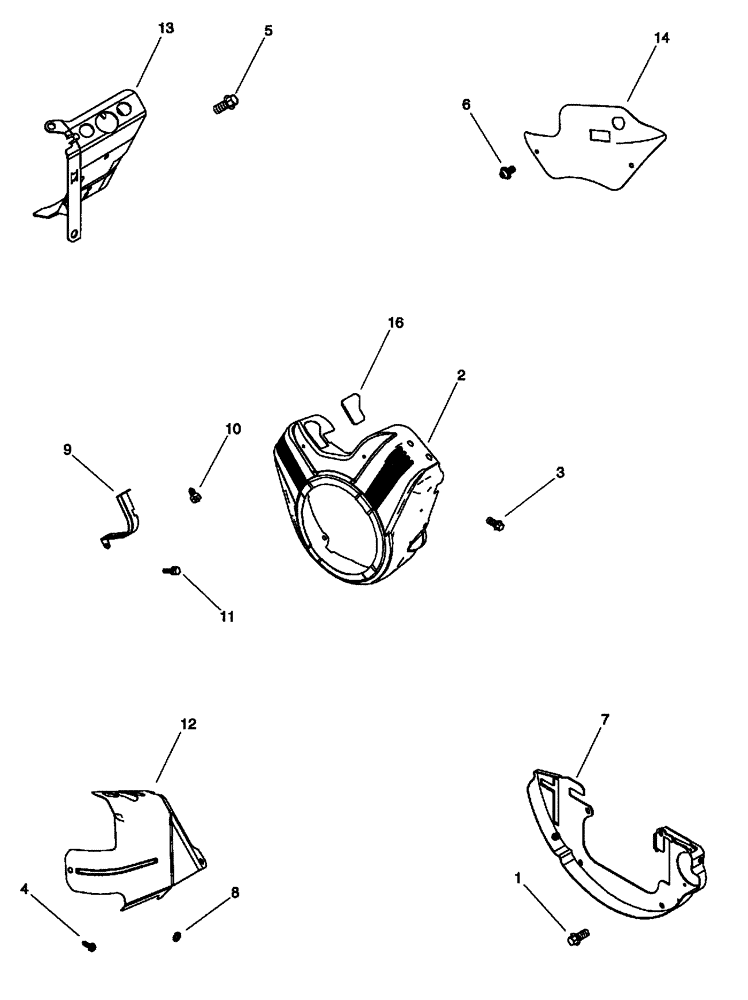

Схема запчастей Case IH SCOUT - (10.406.01) - ENGINE SHROUD (10) - ENGINE
10
8
12
5
9
1
13
2
4
16
3
11
7
14
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

CLC103551201

SCREW

4шт.

2

CLC103552501

BUSHING

Blower

1шт.

3

CLC103553601

SCREW

Housing, Blower

6шт.

4

CLC103554301

SCREW

Cylinder Head Cover, 1

6шт.

5

CLC103556501

SCREW

Air Guide cover

10шт.

6

CLC103557501

SCREW

Carburetor Cover

2шт.

7

CLC103559101

PLATE

Back

1шт.

8

CLC103560401

WASHER

Cylinder Head Cover, 1

6шт.

9

CLC103561501

COVER

Starter Drive

1шт.

10

CLC103561801

SCREW

Starter Drive Cover, 1

1шт.

11

CLC103561901

SCREW

Starter Drive Cover, 2

1шт.

12

CLC103563601

COVER

Air Guide, 1

1шт.

13

CLC103563701

COVER

Air Guide, 2

1шт.

14

CLC103564101

COVER

Carburetor

1шт.

15

NSS

NOT SOLD SEPARAT

LABEL, Emissions, (Not Shown)

1шт.

16

CLC103566901

PLUG

Blower, Housing

1шт.
