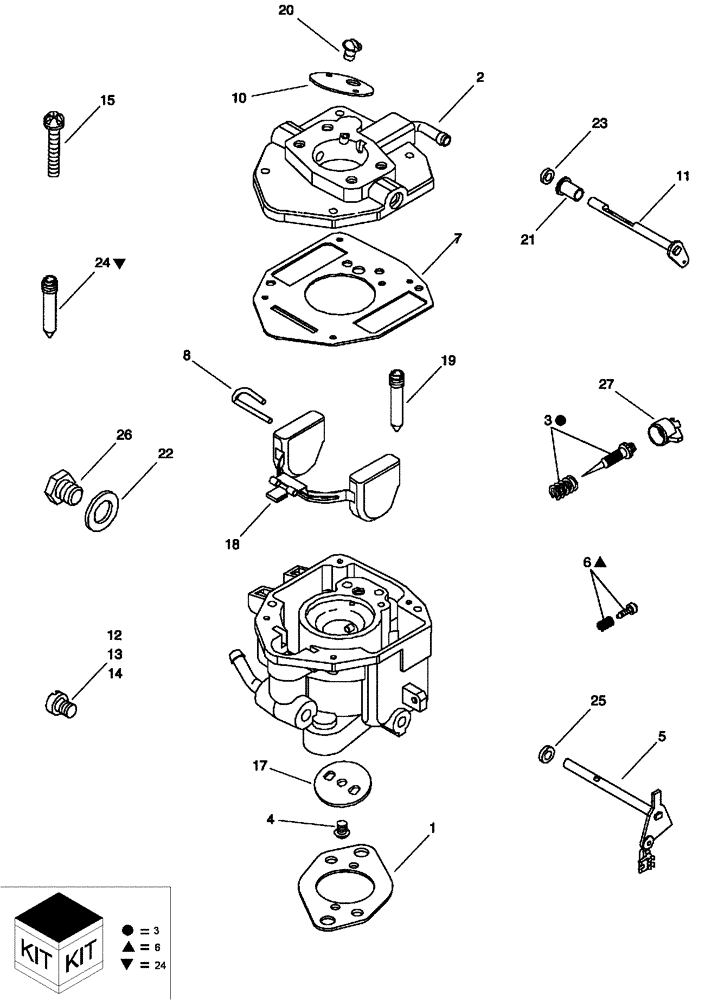

Запчасти Case IH SCOUT (10.236.01) - CARBURETOR (10) - ENGINE

1

CLC103547701

GASKET

Intake, Manifold

1шт.

2

CLC103548401

CARBURETOR

Upper

1шт.

3

CLC103548501

KIT

Idle Mixture

1шт.

4

CLC103548601

SCREW

Throttle Valve

1шт.

5

CLC103548701

SHAFT

Throttle

1шт.

6

CLC103548801

KIT

Idle Speed

1шт.

7

CLC103548901

GASKET

Carburetor Body

1шт.

8

CLC103549001

PIN

Float Hinge

1шт.

9

CLC103549101

NEEDLE VALVE

Float Needle, (Not Shown)

1шт.

10

CLC103549201

CHOKE

1шт.

11

CLC103549301

SHAFT

Choke

1шт.

12

CLC103549401

JET

Main, 0-5000 Ft (0-1500m)

1шт.

13

CLC103549501

JET

Main, 5000-9000 Ft (1500-2700m)

1шт.

14

CLC103549601

JET

Main, 9000-up Ft (2700m up)

1шт.

15

CLC103549701

SCREW

Caburetor Body

4шт.

16

CLC103549801

KIT

Carburetor Overhaul, (Not Shown)

1шт.

17

CLC103550101

VALVE

Throttle

1шт.

18

CLC103550201

FLOAT

Carburetor

1шт.

19

CLC103550301

NOZZLE

Carburetor, Standard

1шт.

20

CLC103552101

SCREW

Choke Valve

1шт.

21

CLC103552501

BUSHING

Choke Shaft

1шт.

22

CLC103553101

SEALING WASHER

Carburetor Plug

1шт.

23

CLC103560201

SEAL

Choke and Throttle Shaft

1шт.

24

CLC103560901

KIT

Needle and Seat

1шт.

25

CLC103562901

SPACER

Throttle

1шт.

26

CLC103564701

PLUG

Carburetor

1шт.

27

CLC103567501

CAP

Limiter

1шт.

28

CLC103550001

CARBURETOR

Complete (Not Shown)

1шт.
