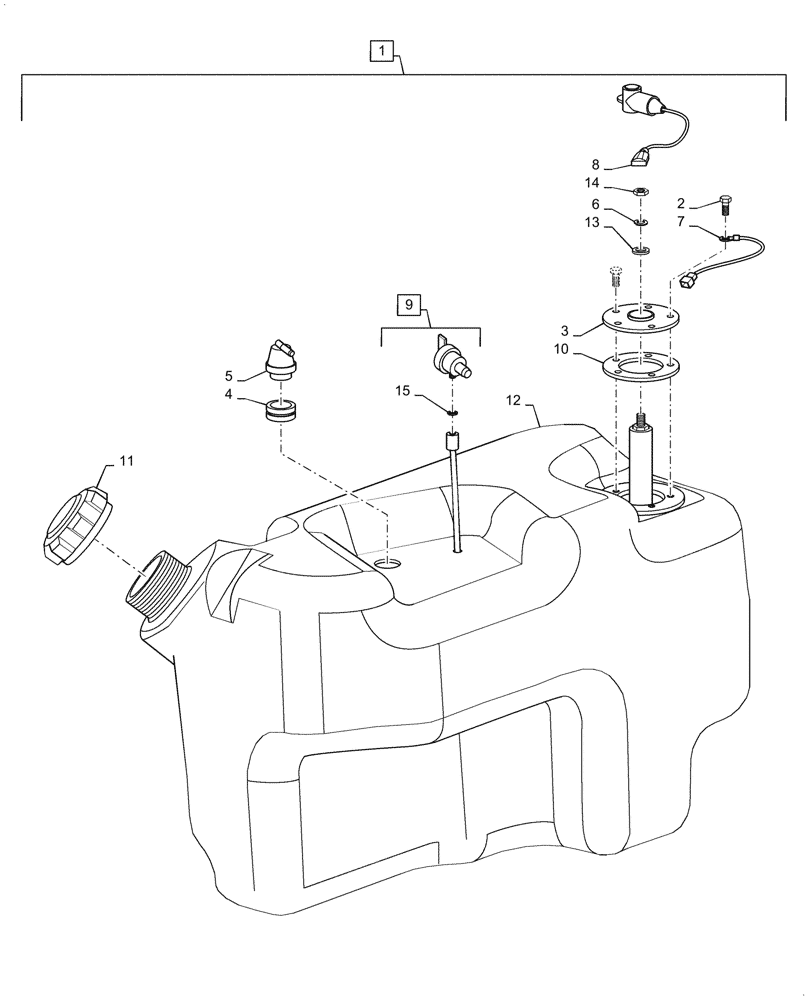

Запчасти Case IH SCOUT (10.216.02) - FUEL TANK & ASSOCIATED PARTS (10) - ENGINE

1

CLC103450002

FUEL TANK

Assy, Incl 2 - 15

1шт.

2

CLC1013461

SCREW

M10 - 16

5шт.

3

CLC1013462

FUEL GAUGE

Level

1шт.

4

CLC1015139

GROMMET

Insulation

1шт.

5

CLC1015143

VENTILATOR

Fuel Tank

1шт.

6

CLC1016

LOCK WASHER

10mm ID

1шт.

7

NSS

NOT SOLD SEPARAT

Wire Harness Assy, Black, 170mm

1шт.

8

NSS

NOT SOLD SEPARAT

Wire Harness Assy, Orange, 170mm

1шт.

9

CLC102513701

VALVE

Fuel Pickup Tube, Years: -31-MAY-11

1шт.

Screw On Style

1шт.

9

CLC103372301

VALVE

Fuel Pickup Tube, Incl 15, Start Year: 01-JUN-11

1шт.

Push On Style

1шт.

10

CLC102522001

GASKET

Rubber

1шт.

11

CLC102751601

CAP

Fuel Tank, Gasoline

1шт.

12

CLC103449901

FUEL TANK

1шт.

13

CLC183

WASHER

10mm ID

1шт.

14

CLC8797

NUT

M10 - 32

1шт.

15

CLC102406701

BUSHING

Fuel Tank Vent Valve

1шт.
