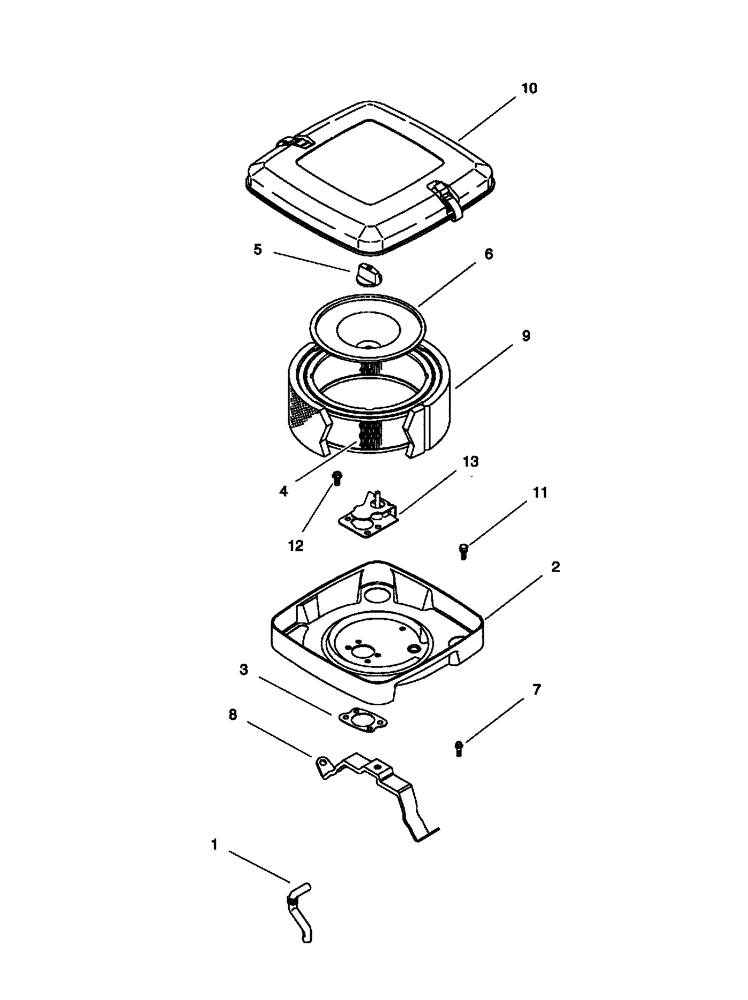

Запчасти Case IH SCOUT (10.202.01) - AIR CLEANER (10) - ENGINE

1

CLC103544701

VENTILATION PIPE

Breather

1шт.

2

CLC103550601

BASE

Air Cleaner, Metal

1шт.

3

CLC103550701

GASKET

Air Cleaner

1шт.

4

CLC103556401

AIR FILTER

Air Cleaner Cartridge

1шт.

5

CLC103556701

KNOB

Air Cleaner

1шт.

6

CLC103560601

RETAINER

Air Filter

1шт.

7

CLC103563301

SCREW

Air Cleaner Mounting Strap

2шт.

8

CLC103563501

STRAP

Air Cleaner Mounting

1шт.

9

BS272490S

AIR CLEANER

Pre Cleaner

1шт.

10

CLC103564901

COVER

Air Cleaner

1шт.

11

CLC103565001

SCREW

Air Cleaner Base To Cart, 1

4шт.

12

CLC103565101

SCREW

Air Cleaner Base To Cart, 2

4шт.

13

CLC103565401

SHIELD

Carburetor

1шт.
