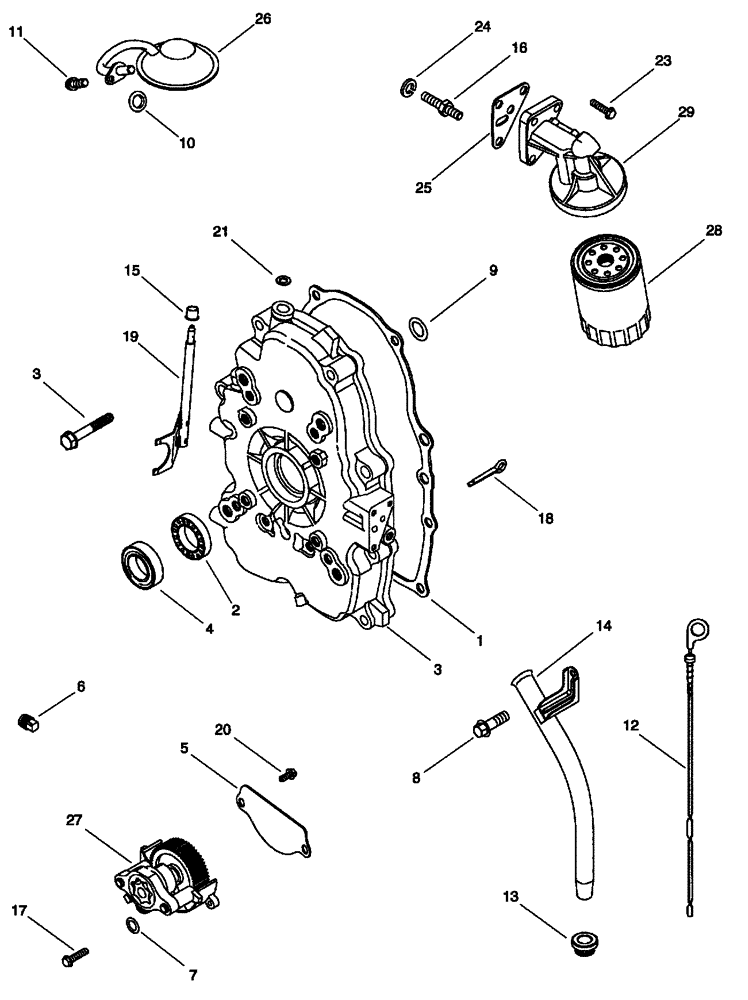

Запчасти Case IH SCOUT (10.102.01) - OIL PUMP, OIL FILTER AND CRANKCASE COVER (10) - ENGINE

1

CLC103544801

GASKET

Crankcase

1шт.

2

CLC103545201

BALL BEARING

1шт.

3

CLC103545301

COVER

Crankcase

1шт.

4

CLC103545401

OIL SEAL

PTO Side

1шт.

5

CLC103547101

DEFLECTOR

Oil

1шт.

6

CLC103548301

PLUG

Oil

1шт.

7

CLC103552801

SEALING RING

SEALRING Oil Pump

1шт.

8

CLC103553401

SCREW

Dipstick Tube

1шт.

9

CLC103556301

SEALING RING

SEALRING Crankcase Cover

1шт.

10

CLC103556801

SEALING RING

SEALRING Oil Pump Screen

1шт.

11

CLC103557001

SCREW

Oil Pump Screen

1шт.

12

CLC103557901

DIPSTICK

1шт.

13

CLC103558001

SEALING RING

SEALRING Dipstick Tube

1шт.

14

CLC103558101

TUBE

Dipstick

1шт.

15

CLC103558601

BUSHING

Governor Crank, 2

1шт.

16

CLC103558901

STUD

Oil Filter Adapter

3шт.

17

CLC103559501

SCREW

Oil Pump

2шт.

18

CLC103559901

RETAINER

Governor Shaft

1шт.

19

CLC103560001

CRANK

Governor

1шт.

20

CLC103560701

SCREW

Oil Deflector

2шт.

21

CLC103561101

SEAL

Governor Shaft

1шт.

22

CLC103561301

COVER

Oil Filter, (Not Shown)

1шт.

23

CLC103562001

SCREW

Oil Filter Adapter

3шт.

24

CLC103563101

WASHER

Oil Filter Adapter

3шт.

25

CLC103565201

GASKET

Oil Adapter, 1

1шт.

26

CLC103565601

PRESCREENER

Oil Pump

1шт.

27

CLC103566001

ENGINE OIL PUMP

1шт.

28

CLC103566401

ENGINE OIL FILTER

1шт.

29

CLC103566501

ADAPTER

Oil Filter

1шт.
