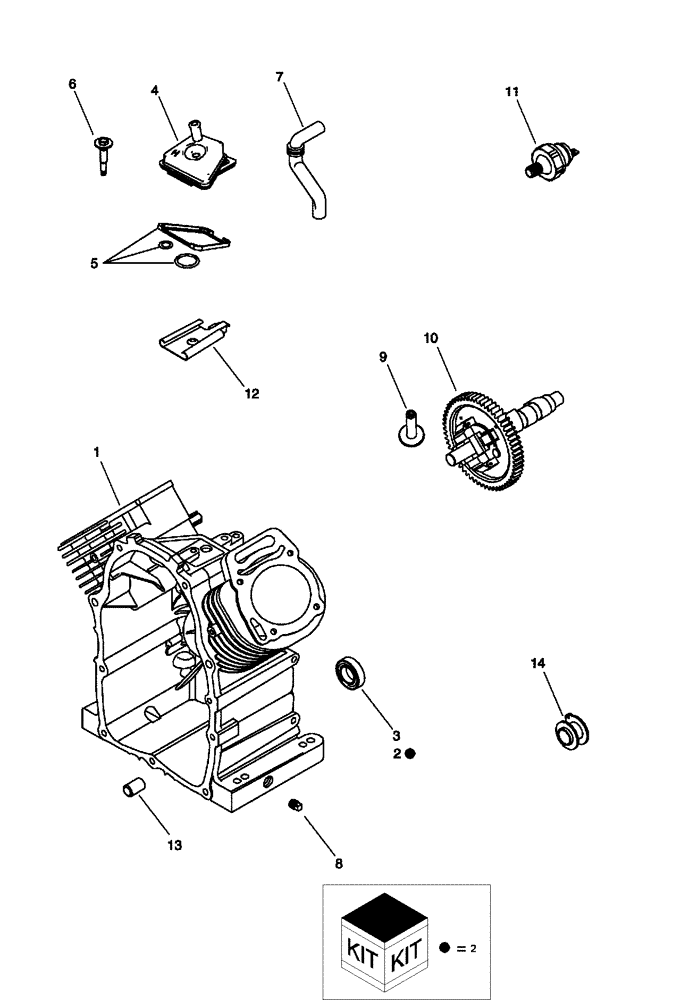

Запчасти Case IH SCOUT (10.101.02) - CYLINDER ASSEMBLY (10) - ENGINE

1

CLC103543701

BLOCK,2 Cylinders

1шт.

2

CLC103543801

KIT

Magneto Side

1шт.

3

CLC103543901

OIL SEAL

Magneto Side

1шт.

4

CLC103544301

BREATHER

1шт.

5

CLC103544401

GASKET

Breather

1шт.

6

CLC103544501

SCREW

Breather Assembly

1шт.

7

CLC103544701

VENTILATION PIPE

Breather

1шт.

8

CLC103545001

DRAIN PLUG

Oil

1шт.

9

CLC103547401

TAPPET

Valve

4шт.

10

CLC103547501

CAMSHAFT

1шт.

11

CLC103552301

SWITCH

Oil Pressure

1шт.

12

CLC103559001

BREATHER

1шт.

13

CLC103561401

PIN

Locating

2шт.

14

CLC103566101

GOVERNOR

1шт.
