(10.101.01) - CYLINDER HEAD AND VALVES

Запчасти Case IH SCOUT (10.101.01) - CYLINDER HEAD AND VALVES (10) - ENGINE

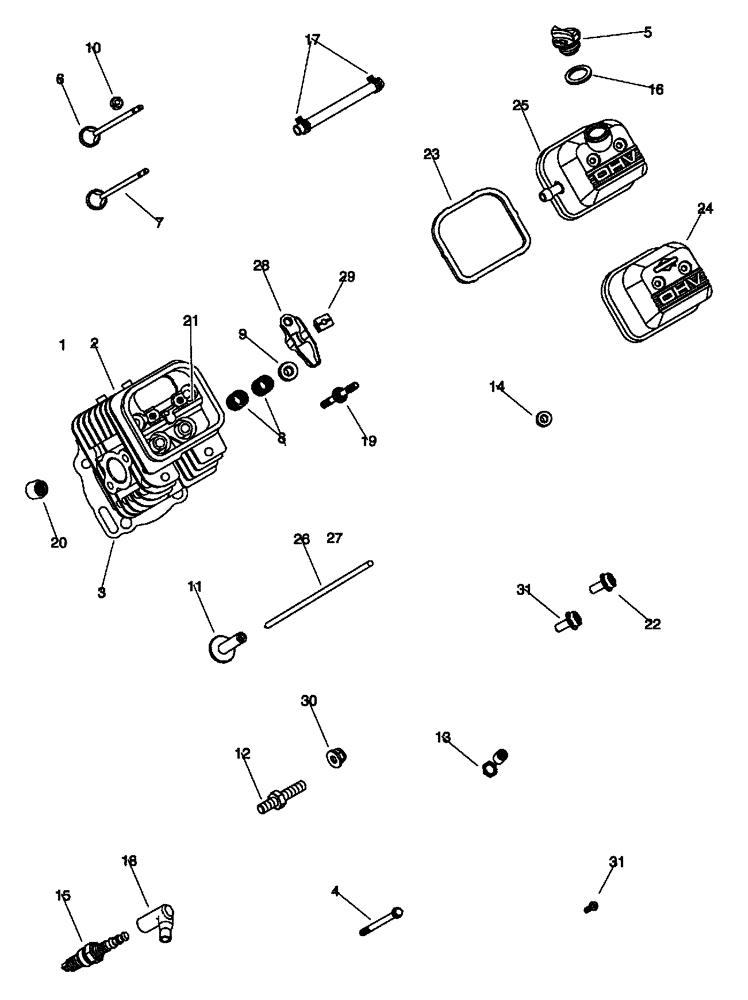

Схема запчастей Case IH SCOUT - (10.101.01) - CYLINDER HEAD AND VALVES (10) - ENGINE
13
4
26
31
5
18
22
12
28
10
3
2
21
25
8
27
6
14
29
1
31
7
19
11
24
23
9
17
16
20
15
30
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

CLC103544001

CYLINDER HEAD

1

1шт.

2

CLC103544101

CYLINDER HEAD

2

1шт.

3

CLC103544201

CYLINDER HEAD GASKET

2шт.

4

CLC103544901

SCREW

Cylinder Head

8шт.

5

CLC103545501

FILLER CAP

Oil

1шт.

6

CLC103546701

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE Exhaust

2шт.

7

CLC103546801

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE Intake

2шт.

8

CLC103546901

VALVE SPRING

4шт.

9

CLC103547201

RETAINER

Valve

4шт.

10

CLC103547301

RETAINER

Valve

4шт.

11

CLC103547401

TAPPET

Valve

4шт.

12

CLC103550501

STUD

Exhaust Manifold

4шт.

13

CLC103551101

ADJUSTER

Rocker Arm

4шт.

14

CLC103553001

SEALING WASHER

Rocker, Cover

4шт.

15

CLC103554801

SPARK PLUG

2шт.

16

NSS

NOT SOLD SEPARAT

Seal Dipstick, Incl in 5

1шт.

17

CLC103559701

HOSE CLAMP

2шт.

18

CLC103560301

BOOT

Spark Plug

2шт.

19

CLC103563201

STUD

Rocker Arm

4шт.

20

CLC103563801

OIL SEAL

Valve, Exhaust

4шт.

21

CLC103563901

BUSHING

Valve Guide

4шт.

22

CLC103565001

SCREW

1шт.

23

CLC103565701

GASKET

Rocker Cover

2шт.

24

CLC103565801

COVER

Rocker, 1

1шт.

25

CLC103565901

COVER

Rocker, 2

1шт.

26

CLC103566201

PUSH ROD

Intake, Steel

2шт.

27

CLC103566301

PUSH ROD

Exhaust, Aluminum

2шт.

28

CLC103566601

ROCKER ARM

4шт.

29

CLC103567701

PIVOTING ARM

Rocker

4шт.

30

CLC103567901

NUT

Exhaust Manifold

4шт.

31

CLC103568001

SCREW

Rocker Cover Stud

4шт.
