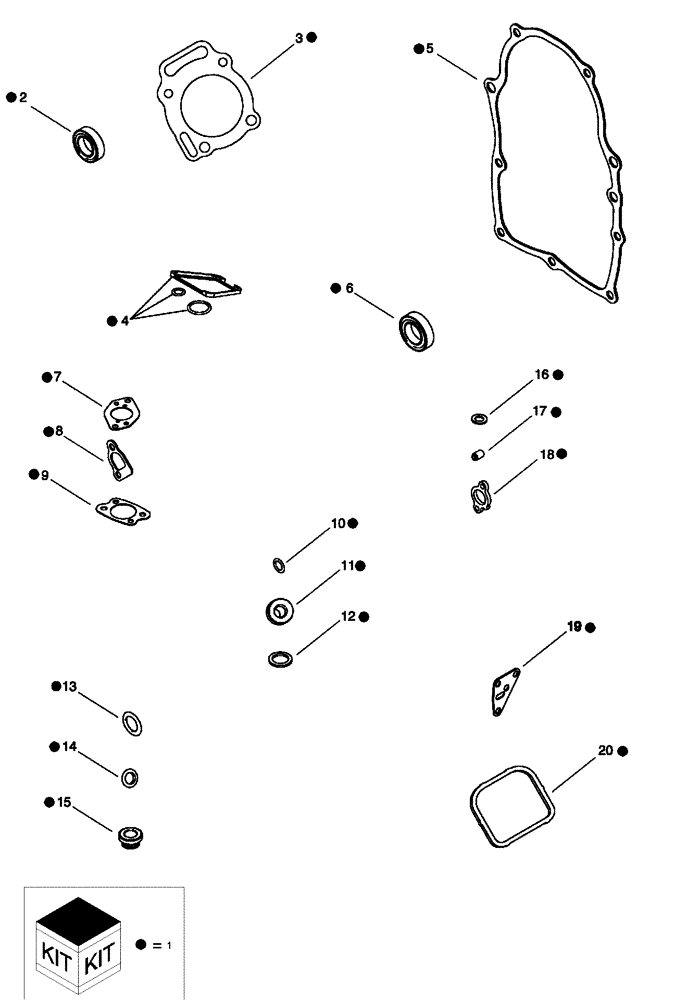

Запчасти Case IH SCOUT (00.000.01) - ENGINE GASKETS AND SEALS (00) - GENERAL & PICTORIAL INDEX

1

CLC103555201

GASKET

Set, Engine, Inc. 2-20

1шт.

2

CLC103543901

OIL SEAL

Magneto Side

1шт.

3

CLC103544201

CYLINDER HEAD GASKET

Head

2шт.

4

CLC103544401

GASKET

Breather

1шт.

5

CLC103544801

GASKET

Crankcase

1шт.

6

CLC103545401

OIL SEAL

PTO Side

1шт.

7

CLC103547701

GASKET

Intake, Manifold

1шт.

8

CLC103547801

GASKET

Intake

2шт.

9

CLC103550701

GASKET

Air Cleaner

1шт.

10

CLC103552801

SEALING RING

SEALRING Oil Pump

1шт.

11

CLC103553001

SEALING WASHER

Rocker, Cover

4шт.

12

CLC103554901

SEAL

Dipstick

1шт.

13

CLC103556301

SEALING RING

SEALRING Crankcase Cover

1шт.

14

CLC103556801

SEALING RING

SEALRING Oil Pump Screen

1шт.

15

CLC103558001

SEALING RING

SEALRING Dipstick Tube

1шт.

16

CLC103561101

SEAL

Governor Shaft

1шт.

17

CLC103563801

OIL SEAL

Valve, Exhaust

4шт.

18

CLC103564201

GASKET

Exhaust

2шт.

19

CLC103565201

GASKET

Oil Adapter

1шт.

20

CLC103565701

GASKET

Rocker Cover

2шт.
