(90.120.01) - BENCH SEATS

Запчасти Case IH SCOUT (90.120.01) - BENCH SEATS (90) - PLATFORM, CAB, BODYWORK AND DECALS

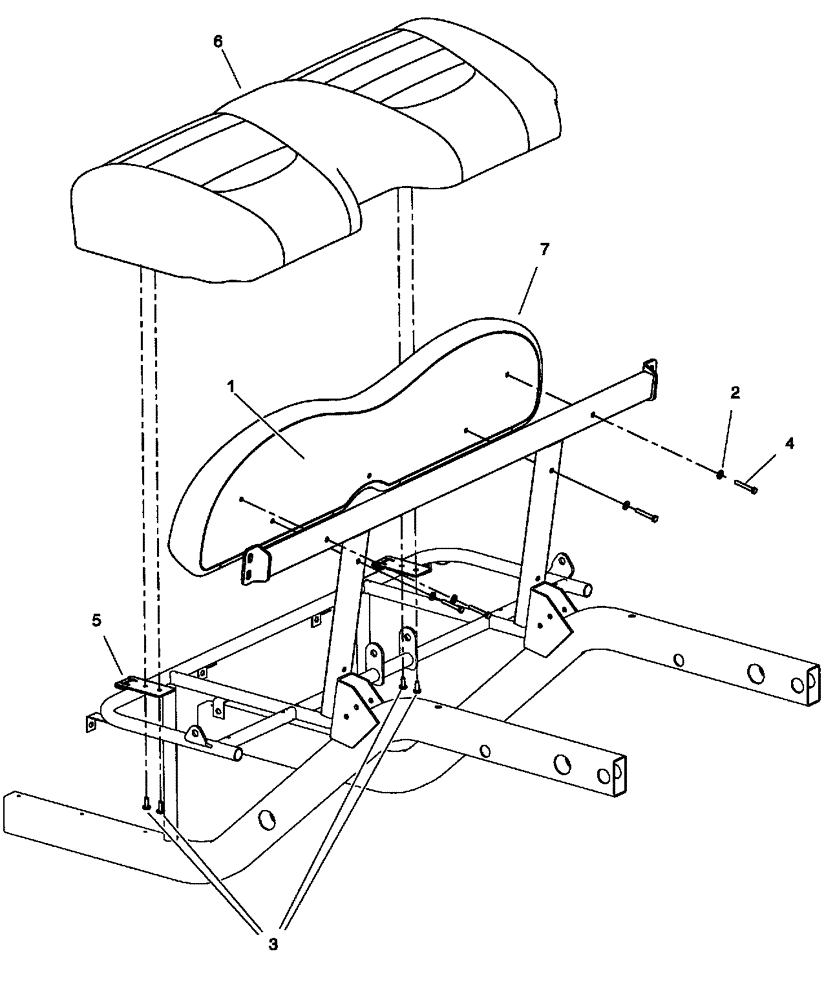

Схема запчастей Case IH SCOUT - (90.120.01) - BENCH SEATS (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
6
3
1
4
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

CLC103580301

CAP

Seatback, One Piece

1шт.

2

CLC1011964

WASHER

4шт.

3

CLC1014415

SCREW

4шт.

4

CLC102343601

SCREW

4шт.

5

CLC103443201

PLATE

Hinge, Seat

2шт.

6

CLC103455003

SEAT

Bottom, Wheat

1шт.

6

CLC103455002

SEAT

Bottom, Black

1шт.

7

CLC103456003

SEAT BACK

Wheat

1шт.

7

CLC103456002

SEAT BACK

Black

1шт.
