(90.118.05[01]) - HEAT SHIELD

Запчасти Case IH SCOUT (90.118.05[01]) - HEAT SHIELD (90) - PLATFORM, CAB, BODYWORK AND DECALS

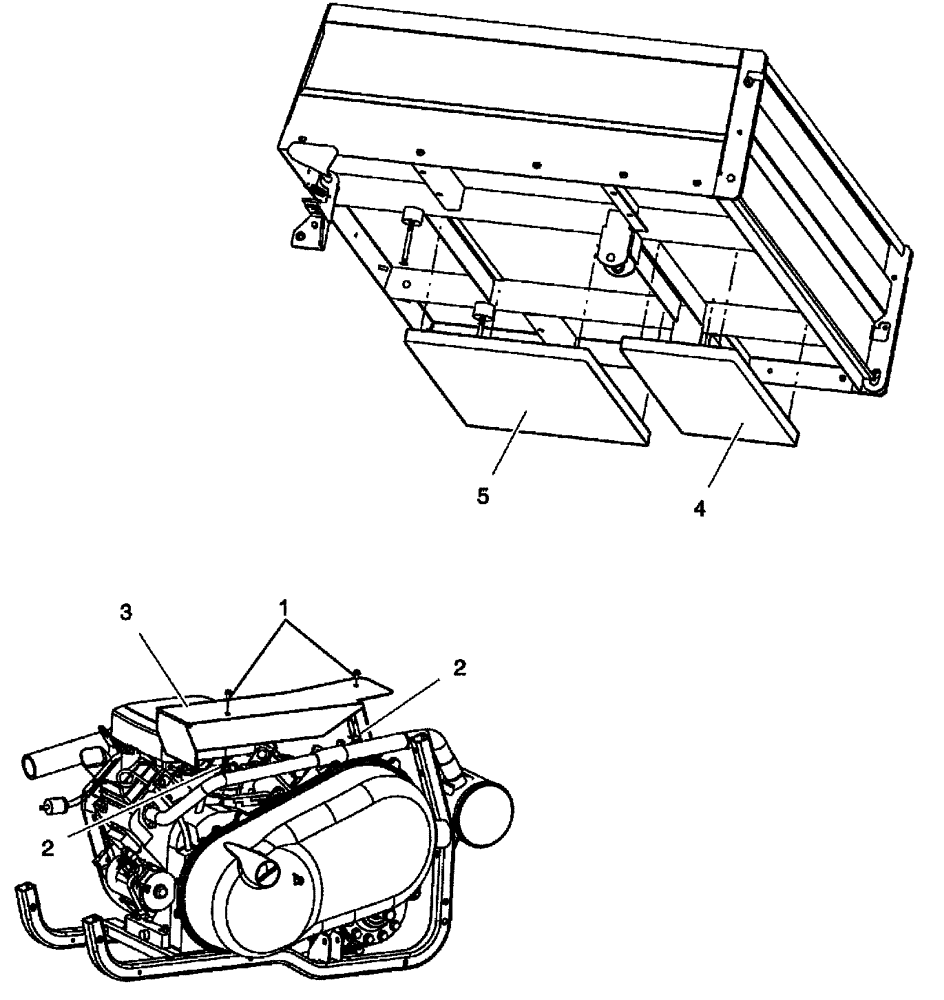

Схема запчастей Case IH SCOUT - (90.118.05[01]) - HEAT SHIELD (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
2
5
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

CLC103541501

SELF-TAP SCREW

2шт.

2

CLC1014116

NUT

2шт.

3

CLC103525701

HEAT SHIELD

Exhaust

1шт.

4

CLC103534701

FOAM INSULATION

Barrier, Heat, Bed, Rear

1шт.

5

CLC103534801

FOAM INSULATION

Barrier, Heat, Bed, Front

1шт.
