(88.156.01) - DIA KIT, WINDSHIELD

Запчасти Case IH SCOUT (88.156.01) - DIA KIT, WINDSHIELD (88) - ACCESSORIES

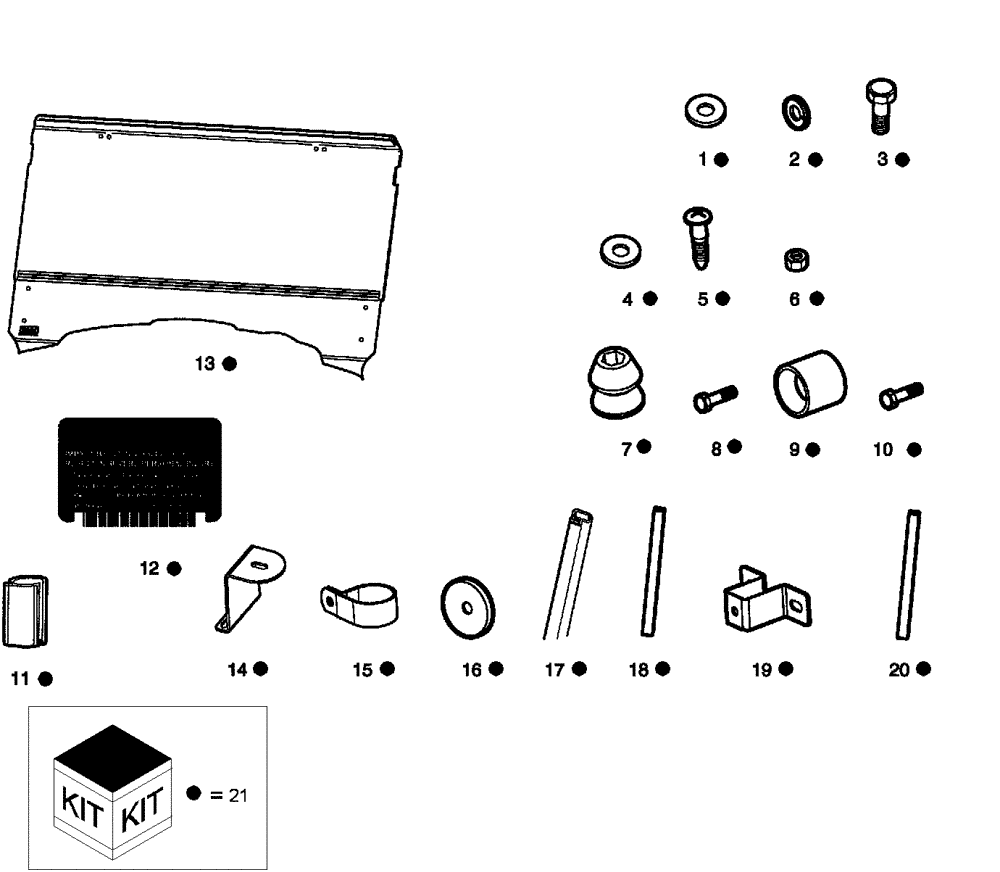

Схема запчастей Case IH SCOUT - (88.156.01) - DIA KIT, WINDSHIELD (88) - ACCESSORIES
21
12
21
5
21
21
21
21
21
13
14
21
21
21
21
21
8
21
4
21
11
21
6
19
2
20
16
3
21
18
9
15
21
17
21
21
10
21
7
21
1
21
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

CLC332

WASHER

4шт.

2

CLC451

LOCK WASHER

2шт.

3

CLC1012769

SCREW

4шт.

4

CLC1014306

WASHER

4шт.

5

CLC103539901

SCREW

4шт.

6

CLC101887601

LOCK NUT

10шт.

7

CLC102059001

BASE

Seat Holder

2шт.

8

CLC102059401

SCREW

2шт.

9

CLC102061101

CUP

Seat Holder

2шт.

10

CLC102059501

FLANGE BOLT

6шт.

11

CLC103186303

CLIP

Windshield, 61 mm

2шт.

12

CLC103391701

WARNING DECAL

Windshield

1шт.

13

NSS

NOT SOLD SEPARAT

WINDSHIELD

1шт.

14

NSS

NOT SOLD SEPARAT

BRACKET, Supporting, Windshield

2шт.

15

CLC103595801

CLAMP

4шт.

16

CLCAM1219801

SEALING WASHER

16шт.

17

CLC103596101

RUBBER SEAL

Upper Windshield, 1434 mm

1шт.

18

CLC103596201

SEAL

Lower Windshield, 1257 mm

1шт.

19

CLC103598401

BRACKET

Windshield Latch

2шт.

20

CLC103596202

SEAL

Side Windshield, 394 mm

1шт.

21

CLC103575601

DIA KIT, ADD PROD

Windshield, Inc. 1-20

1шт.
