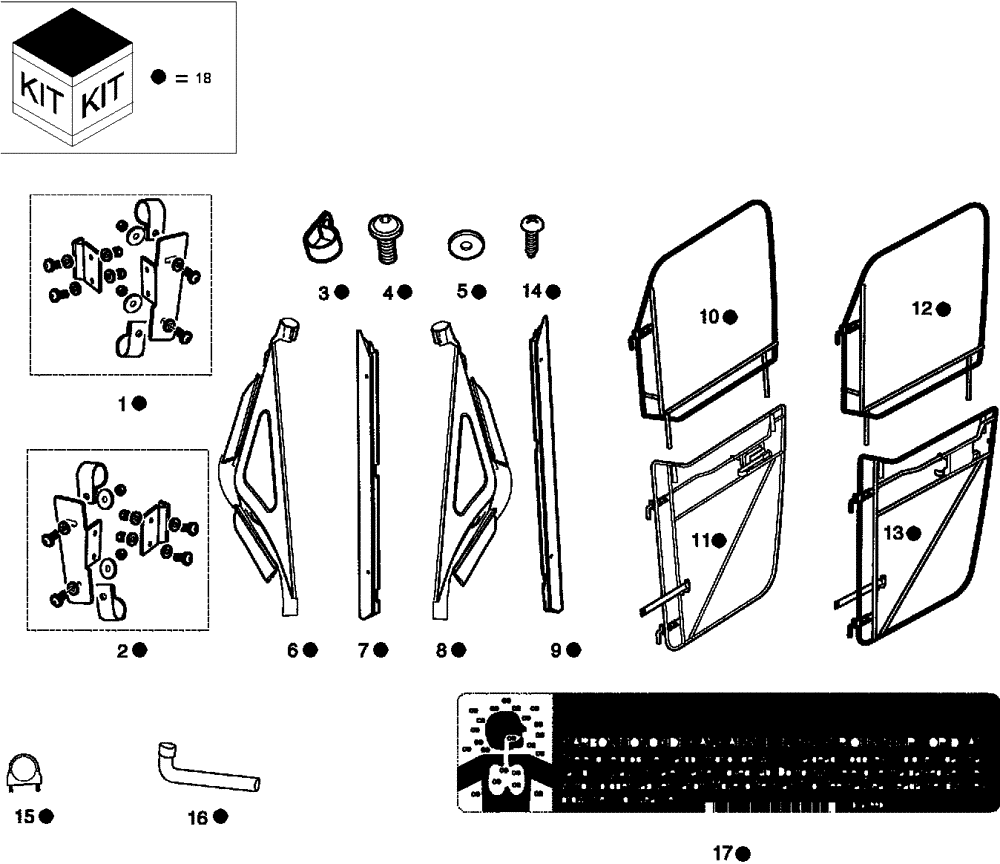

Запчасти Case IH SCOUT (88.150.03) - DIA KIT, CAB DOORS (SET OF 2) (88) - ACCESSORIES

1

NSS

NOT SOLD SEPARAT

STRIKER PLATE ASSEMBLY, Right Hand

1шт.

2

NSS

NOT SOLD SEPARAT

STRIKER PLATE ASSEMBLY, Left Hand

1шт.

3

NSS

NOT SOLD SEPARAT

CLAMP

4шт.

4

NSS

NOT SOLD SEPARAT

SCREW, Allen Head

4шт.

5

NSS

NOT SOLD SEPARAT

WASHER, Flat

8шт.

6

NSS

NOT SOLD SEPARAT

HINGE PILLAR FABRIC ASSEMBLY, Right Hand

1шт.

7

NSS

NOT SOLD SEPARAT

HINGE PILLAR, Right Hand

1шт.

8

NSS

NOT SOLD SEPARAT

HINGE PILLAR FABRIC ASSEMBLY, Left Hand

1шт.

9

NSS

NOT SOLD SEPARAT

HINGE PILLAR, Left Hand

1шт.

10

NSS

NOT SOLD SEPARAT

DOOR SKIN, Upper, Right Hand

1шт.

11

NSS

NOT SOLD SEPARAT

DOOR SKIN, Lower, Right Hand

1шт.

12

NSS

NOT SOLD SEPARAT

DOOR SKIN, Upper, Left Hand

1шт.

13

NSS

NOT SOLD SEPARAT

DOOR SKIN, Lower Left Hand

1шт.

14

NSS

NOT SOLD SEPARAT

SCREW

4шт.

15

CLC103618501

PIPE

Clamp

1шт.

16

CLC103618601

CLAMP

Tailpipe

1шт.

17

CLC103619901

WARNING DECAL

Carbon Monoxide

1шт.

18

CLC103524002

DIA KIT, ADD PROD

Cab Doors, Inc. 1-17

1шт.
