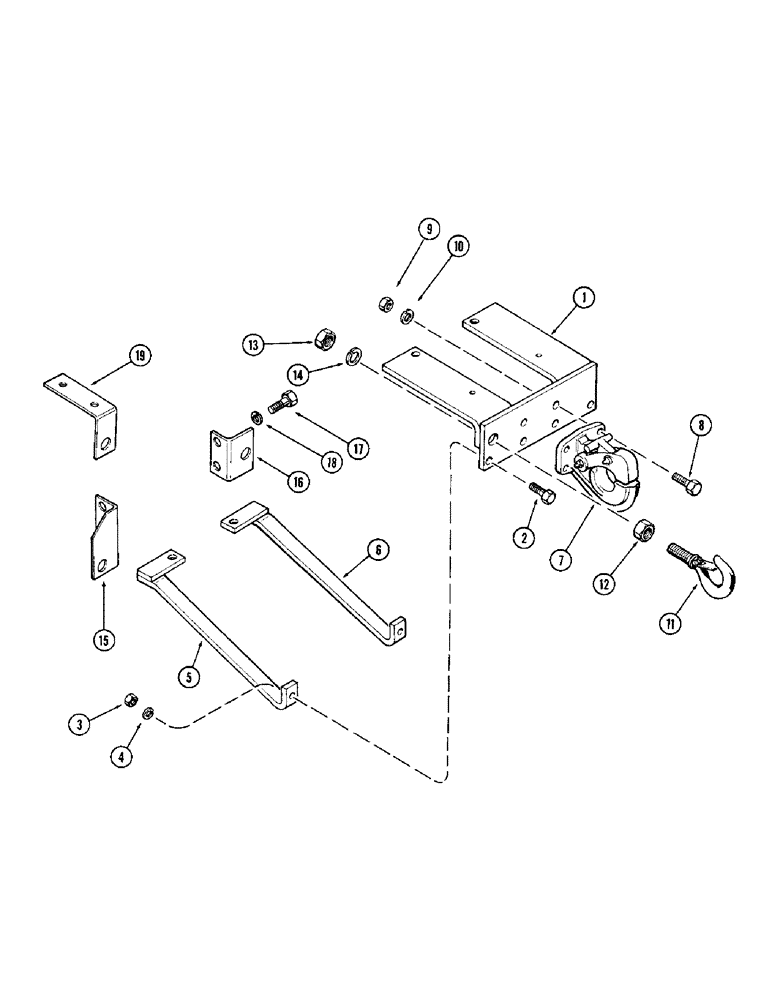

Запчасти Case IH M570AT (105A) - FRONT DRAWBAR (09) - CHASSIS

1

A38690

BRACKET - pintle mounting

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

3

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

4

92-8

LOCK WASHER,1/2"

6шт.

5

A38694

SUPPORT - R.H., pintle bracket

1шт.

6

A38695

SUPPORT - L.H., pintle bracket

1шт.

7

G45406

PIN

HOOK - pintle, drawbar

1шт.

8

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- 1/2" x 1-1/2" N.F. hex.

4шт.

9

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

4шт.

10

92-8

LOCK WASHER,1/2"

4шт.

11

G45417

HOOK - safety, pintle bar

1шт.

12

25-1014

NUT,7/8"-9, G5

1шт.

13

25-1414

NUT,Jam, 7/8"-9, G5

- jam, 7/8" N.C. hex.

1шт.

14

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

1шт.

15

A38969

BRACKET - hose coupling, R.H.

1шт.

16

A38839

BRACKET - hose coupling, L.H.

1шт.

17

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

4шт.

18

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

19

A38844

BRACKET - rear, tube support

1шт.
