(100) - HEATER AND DEFROSTER

Запчасти Case IH M570AT (100) - HEATER AND DEFROSTER (09) - CHASSIS

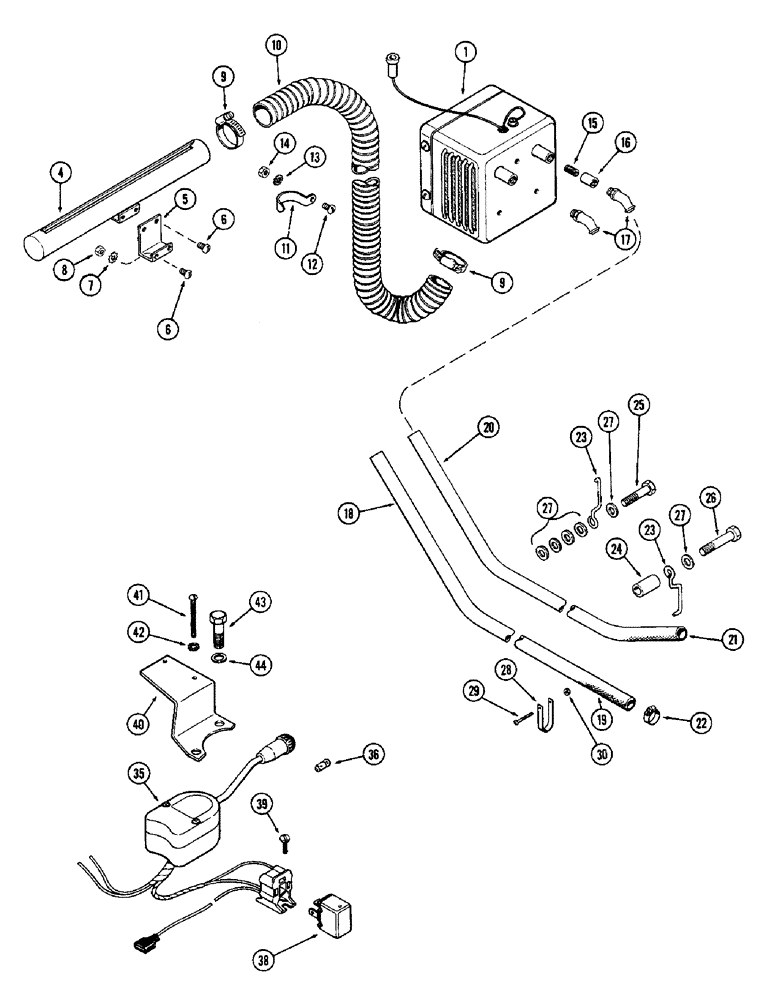

Схема запчастей Case IH M570AT - (100) - HEATER AND DEFROSTER (09) - CHASSIS
23
40
38
42
1
11
6
14
27
10
36
27
20
30
7
43
19
26
9
13
29
6
16
25
5
17
24
18
22
15
8
21
41
4
23
39
44
35
28
27
12
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A38123

HEATER ASSY. - cab

1шт.

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

(Heater mtg.) (Not illust.) Hex, 1/4"-20 x 5/8", G5, Full Thd

3шт.

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, 1/4" int. - ext. Shakeproof (On bolt)

6шт.

4

A38125

DEFROSTER - cab windshield

1шт.

5

NSS

NOT SOLD SEPARAT

BRACKET - adapter, defroster

1шт.

6

193-515

SCREW,SEMS, But Hd, 1/4"-20 x 1/2"

- sems, 1/4 x 1/2" N.C. Truss hd.

4шт.

7

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, 1/4" int. - ext. Shakeproof

2шт.

8

25-104

NUT,1/4"-20, G5

2шт.

9

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

Assy - defroster tube #36, 1.81/2.75 Type F Worm

2шт.

10

A38801

- air, defroster (2" I.D. x 36" lg.)

1шт.

11

A38802

CLAMP

- air tube

1шт.

12

175-300

SCREW - mach., #10 x 3/4" N.F. Truss hd.

1шт.

13

193-42

WASHER, LOCK,Ext-Int Tooth, #10

WASHER - lock, #10 int. - ext. Shakeproof

1шт.

14

129-37

NUT,#10-32

1шт.

15

217-202

NIPPLE, LUBE

NIPPLE - close, 3/8" P.T. x 1" lg. (Brass)

2шт.

16

221-1328

X

COUPLING - 3/8" P.T. (Galvanized)

2шт.

17

A36104

ELBOW - adapter, 3/8" P.T. x 3/4" hose

4шт.

18

A36105

HOSE

- lower, heater (62")

1шт.

19

A36106

SLEEVE - lower heater hose asbestos (67")

1шт.

20

A38803

HOSE

- upper, heater (69")

1шт.

21

A38804

SLEEVE - upper heater hose (77")

1шт.

22

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP ASSY. - heater hose (1-3/16" to 1-3/4")

4шт.

23

A36402

SUPPORT

CLIP - heater hose support

2шт.

24

A38141

SPACER - hose clip (front clip)

1шт.

25

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

(Rear clip) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

1шт.

26

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

1шт.

27

195-41

WASHER,5/8"

6шт.

28

G15894

STRAP - tie, heater hose

1шт.

29

173-219

SCREW - mach, #10 x 1-1/2" N.F. rd. hd.

1шт.

30

193-1000

NUT,Keps, w/LW,#10-32

- keps, #10 N.F.

1шт.

35

A39030

SWITCH

ASSY. - turn signal (12 volt), Includes: Ref. 36 and 38, switch

1шт.

36

B50213

BULB

- flasher switch (12 volt), turn signal

1шт.

38

A42893

FLASHER - signal switch (12 volt), turn

1шт.

39

187-570

SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"

SCREW - mach., #10 x 1/4" type "B", turn signal switch

2шт.

40

A38051

PLATE - mounting, turn signal switch

1шт.

41

173-266

SCREW - mach., #6 x 1-3/4" N.C. rd. hd., turn signal switch

2шт.

42

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, , Turn signal switch Ext-Int Tooth, #6

2шт.

43

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Turn signal switch Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

44

92-5

LOCK WASHER,5/16"

turn signal switch 5/16"

2шт.
