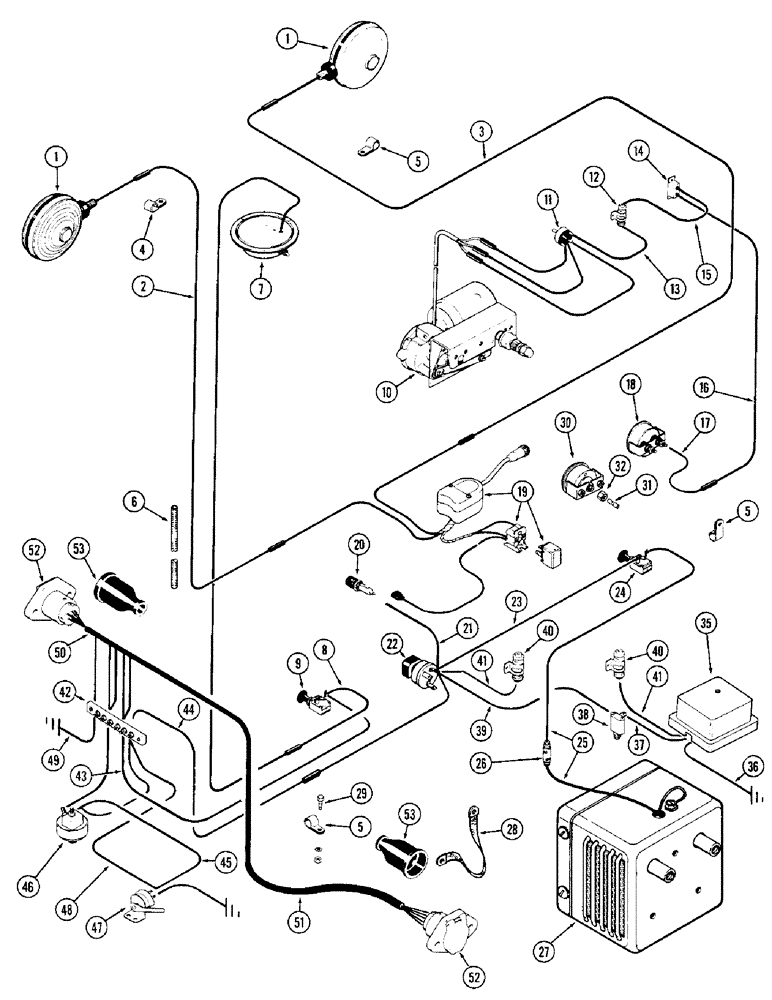

Запчасти Case IH M570AT (098) - CAB ELECTRICAL, WITH TRAILER OUTLETS (09) - CHASSIS

1

A34853

LAMP

ASSY. - turn signal (Repairs figure 102)

2шт.

2

A38121

WIRE - R.H. turn lamp (Red 106")

1шт.

3

A38122

WIRE - L.H. turn lamp (Green 106")

1шт.

4

A36402

SUPPORT

CLIP - wire retainer

1шт.

5

A38799

CLAMP

CLIP - wire retainer

2шт.

6

NSS

NOT SOLD SEPARAT

LOOM - cab wiring (38-1/2" long)

1шт.

7

A38120

LIGHT ASSY. - dome (Includes wire)

1шт.

8

A11945

WIRE - light switch to dome light

1шт.

9

G13142

IGNITION SWITCH

SWITCH ASSY. - light

1шт.

10

A36092

MOTOR ASSY. - windshield wiper

1шт.

11

A36120

SWITCH ASSY. - wiper

1шт.

12

NSS

NOT SOLD SEPARAT

CAPACITOR - electrical

1шт.

13

A36124

WIRE - wiper switch to capacitor (3")

1шт.

14

A36122

BREAKER

- circuit

1шт.

15

A36125

WIRE - capacitor to circuit breaker

1шт.

16

A36127

WIRE ASSY. - circuit, Serial Range: breaker-ammeter

1шт.

17

A36067

WIRE -, Serial Range: ammeter-wiper

1шт.

18

A38046

AMMETER - electrical

1шт.

19

A39030

SWITCH

ASSY. - turn signal (Repairs figure 92)

1шт.

20

A22874

HOLDER

ASSY. - fuse (Repairs figure 42)

1шт.

21

A22875

ELECTRICAL WIRE

WIRE - fuse to ignition switch (Red 4")

1шт.

22

A35984

SWITCH ASSY. - ignition

1шт.

23

G13086

WIRE - ignition switch to heater switch (Black 16")

1шт.

24

A36103

SWITCH

ASSY. - heater

1шт.

25

A38124

WIRE ASSY. - heater to heater switch

1шт.

26

NSS

NOT SOLD SEPARAT

FUSE - (5 amp.)

1шт.

27

A38123

HEATER ASSY. - cab (12 volt)

1шт.

28

A36141

CABLE - strap, cab ground

1шт.

29

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

30

L10387

GAUGE - air pressure, trailer brakes

1шт.

31

NLS

NO LONGER SERVICED

TUBE - air pressure gauge (1/8" O.D. x 18-1/2")

1шт.

32

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

COUPLING - 1/8 O.D. x 1/8" P.T.

1шт.

35

A38787

BUZZER

- warning, air pressure

1шт.

36

A38850

STRAP - ground, warning buzzer

1шт.

37

G44082

WIRE - pressure switch to buzzer (Black 19")

1шт.

38

L10372

SWITCH

- air pressure warning

1шт.

39

G44090

CABLE

WIRE - pressure switch to ignition (Black 18")

1шт.

40

A38042

COIL SPRING

CAPACITOR - by-pass

2шт.

41

A38043

WIRE - to capacitor (Black 4-1/2")

2шт.

42

A38738

BLOCK - terminal, trailer wire

1шт.

43

G13087

CABLE PULLING GRIP

WIRE - stop light switch (Blue 22")

1шт.

44

A38700

WIRE - stop light switch

1шт.

45

A38704

WIRE - air pressure stop light switch to mechanical stop light switch

1шт.

46

A38747

SWITCH - air pressure stop light

1шт.

47

A33977

SWITCH

- mechanical stop light

1шт.

48

A38703

WIRE - mechanical stop light switch (Yellow)

1шт.

49

G44084

WIRE - ground, terminal

1шт.

50

G44088

CABLE - rear, trailer connector

1шт.

51

G44089

CABLE - front, trailer connector

1шт.

52

A38739

CONNECTOR, ELEC

CONNECTOR - trailer cable, Includes: Ref. 53

2шт.

53

A38740

GUARD

BOOT - connector cover

2шт.
