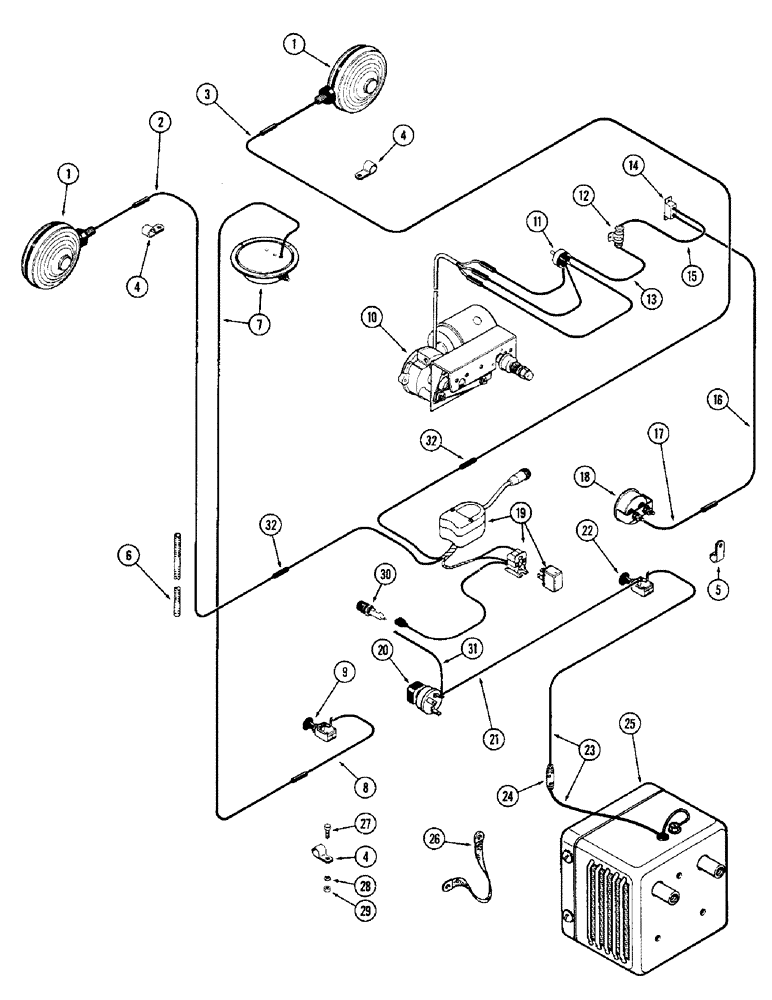

Запчасти Case IH M570AT (096) - CAB ELECTRICAL (09) - CHASSIS

1

A34853

LAMP

ASSY. - turn signal (Repairs Fig. 102)

2шт.

2

A38121

WIRE - turn lamp R.H. to switch (Red - 106" lg.)

1шт.

3

A38122

WIRE - turn lamp L.H. to switch (Green - 106" lg.)

1шт.

4

A36402

SUPPORT

CLIP - wire retainer

3шт.

5

A38799

CLAMP

CLIP - wire retainer

1шт.

6

NSS

NOT SOLD SEPARAT

LOOM - cab wiring (38.5" lg.)

2шт.

7

A38120

LIGHT ASSY. - dome, cab (w/wire)

1шт.

NSS

NOT SOLD SEPARAT

SCREW - sems, #10 x 3/8" rd. hd. (Type Z) (Not illust.)

3шт.

8

A11945

WIRE - light swt. to dome conn. (Black)

1шт.

9

G13142

IGNITION SWITCH

SWITCH ASSY. - light

1шт.

10

A36092

MOTOR ASSY. - windshield wiper

1шт.

11

A36120

SWITCH ASSY. - wiper

1шт.

12

NSS

NOT SOLD SEPARAT

CAPACITOR - electrical

1шт.

13

A36124

WIRE - wiper swt. to capacitor (3")

1шт.

14

A36122

BREAKER

- circuit

1шт.

15

A36125

WIRE - capacitor to circuit breaker aux. term. (2-1/4")

1шт.

16

A36127

WIRE ASSY. - circuit breaker to amm. wire (67-1/2")

1шт.

17

A36067

WIRE - ammeter to wiper wire

1шт.

18

A38046

AMMETER - electrical

1шт.

19

A39030

SWITCH

ASSY. - turn signal (Repairs Fig. 100)

1шт.

20

A35984

SWITCH ASSY. - ignition (Keyless)

1шт.

21

G13086

WIRE - ignition switch to heater switch

1шт.

22

A36103

SWITCH

ASSY. - heater

1шт.

23

A38124

WIRE ASSY. - heater to heater switch

1шт.

24

NSS

NOT SOLD SEPARAT

FUSE - electrical (5 amp. Agc.)

1шт.

25

A38123

HEATER ASSY. - cab (12 volt) (Repairs Fig. 100)

1шт.

26

A36141

CABLE - strap, cab grounding to inst. panel

1шт.

27

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

28

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, 1/4" int. - ext. Shakeproof

1шт.

29

25-104

NUT,1/4"-20, G5

1шт.

30

A22874

HOLDER

ASSY. - fuse

1шт.

31

A38921

WIRE - fuse to ignition switch (Red 12")

1шт.

32

F21330

CONNECTOR - wire, single

4шт.
