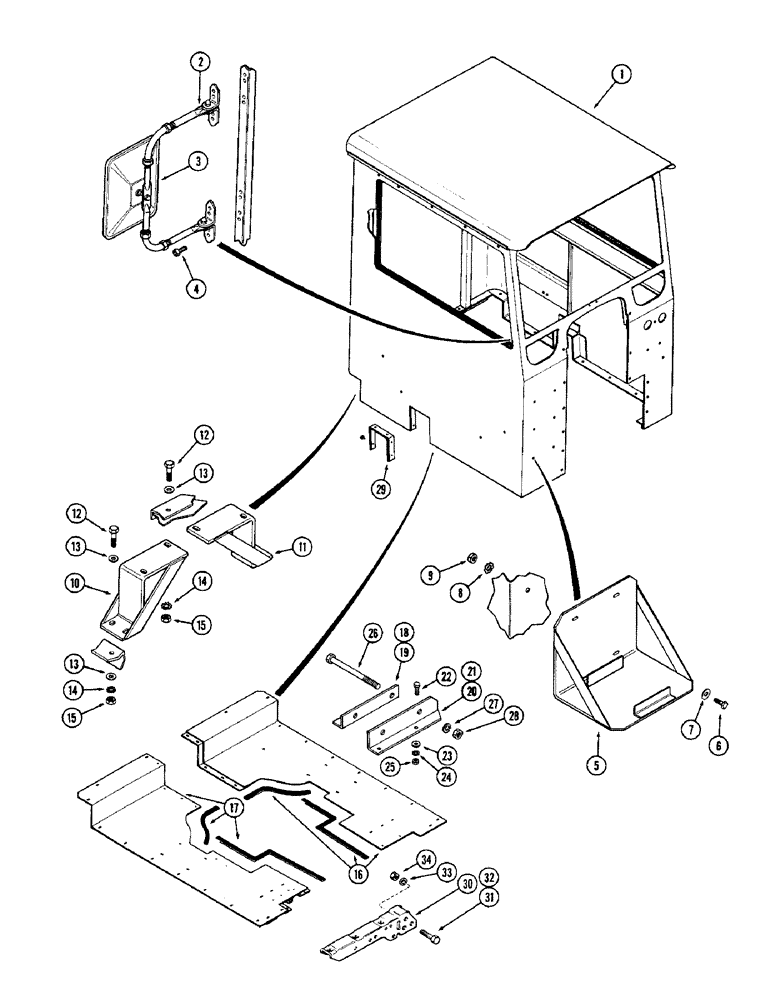

Запчасти Case IH M570AT (094) - CAB, PLATFORM, MIRROR AND BATTERY TRAY (09) - CHASSIS

1

A38698

CAB - operator's

1шт.

2

A36051

MIRROR ASSY. - rear view

2шт.

3

NSS

NOT SOLD SEPARAT

HEAD ASSY. - mirror (Order A36051), Includes: Ref. 3 and 4

1шт.

4

NSS

NOT SOLD SEPARAT

SCREW - mirror mounting

4шт.

5

A38800

TRAY - battery

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

7

95-6

WASHER,3/8"

- plain, 3/8"

4шт.

8

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - lock, 3/8" int. - ext. Shakeproof

4шт.

9

25-106

NUT,3/8"-16, G5

- hex., 3/8" N.C.

4шт.

10

A38130

BRACKET - stabilizer, R.H.

1шт.

11

A38129

BRACKET - stabilizer, L.H.

1шт.

12

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

8шт.

13

95-6

WASHER,3/8"

- plain, 3/8"

16шт.

14

193-47

WASHER - lock, 7/16" int. - ext. Shakeproof

8шт.

15

25-107

NUT,7/16"-14, G5

- hex., 7/16" N.C.

8шт.

16

A39039

PLATE ASSY. - floor L.H.

1шт.

17

A39038

PLATE ASSY. - floor, R.H.

1шт.

18

A39061

ANGLE - floor plate, L.H. rear (Shown)

1шт.

19

A39060

ANGLE - floor plate, R.H. rear

1шт.

20

A39062

ANGLE - mtg., floor plate, front L.H. (Shown)

1шт.

21

A39063

ANGLE - mtg., floor plate, front R.H.

1шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

18шт.

23

95-6

WASHER,3/8"

- plain, 3/8"

36шт.

24

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - lock, 3/8" int. - ext. Shakeproof

18шт.

25

25-106

NUT,3/8"-16, G5

- hex., 3/8" N.C.

18шт.

26

NSS

NOT SOLD SEPARAT

BOLT - hex. hd., angle to axle mtg.

4шт.

27

NSS

NOT SOLD SEPARAT

WASHER - lock, angle mtg. bolt

8шт.

28

NSS

NOT SOLD SEPARAT

NUT - hex., angle mtg. bolt

4шт.

29

A38128

SEAL - weather, axle (16")

2шт.

30

A38689

SUPPORT - platform front

2шт.

31

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- hex. hd., 3/8" x 1-3/4" N.F.

4шт.

32

14-632

BOLT,Hex, 3/8" - 24 x 2", Gr 5

- hex. hd., 3/8" x 2" N.F.

2шт.

33

92-6

LOCK WASHER,3/8"

6шт.

34

25-116

NUT,Hex, 3/8"-24, G5

- hex., 3/8" N.F.

6шт.
