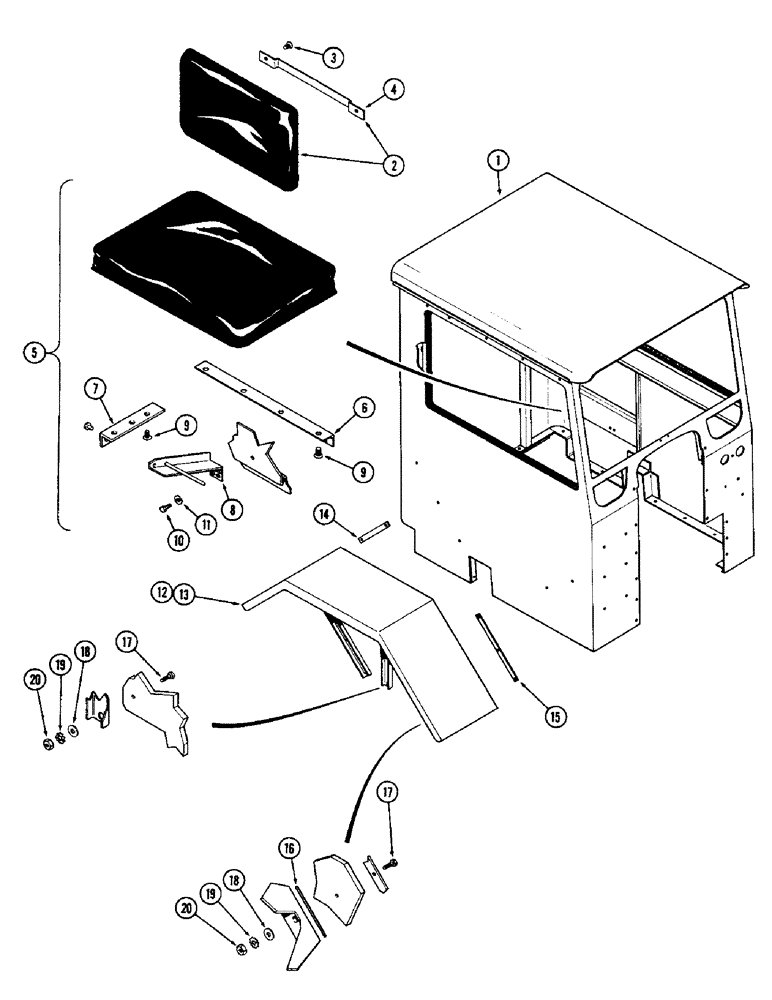

Запчасти Case IH M570AT (092) - CAB, PASSENGER SEAT AND FENDERS (09) - CHASSIS

1

A38698

CAB - operator's

1шт.

2

A36065

BACKREST ASSY. - seat, Includes: Ref. 2 - 4

1шт.

3

193-515

SCREW,SEMS, But Hd, 1/4"-20 x 1/2"

- sems mach., 1/4 x 1/2" N.C.

2шт.

4

NSS

NOT SOLD SEPARAT

BRACKET - backrest, seat

1шт.

5

A36066

SEAT ASSY. - passenger, cab, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

HINGE ASSY. - seat

1шт.

7

NSS

NOT SOLD SEPARAT

ANGLE - seat support

2шт.

8

NSS

NOT SOLD SEPARAT

SUPPORT ASSY. - seat

1шт.

9

186-80

SCREW - wood, 1/4 x 3/4" rd. hd.

10шт.

10

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

8шт.

11

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, 1/4" int. - ext. Shakeproof

8шт.

12

A39068

FENDER - cab R.H. (Shown)

1шт.

13

A39069

FENDER - cab L.H.

1шт.

14

A39071

STRIP - fender backing, rear

2шт.

15

A39072

STRIP - fender backing, front

2шт.

16

A38106

BEAD - weather (66")

2шт.

17

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

34шт.

18

95-5

WASHER,3/8" x 7/8" x .083"

- plain, 5/16"

49шт.

19

193-45

WASHER,Ext-Int Tooth, 5/16"

- lock, 5/16" int. - ext. Shakeproof

34шт.

20

9635082

NUT,5/16" - 18, Gr 5

- hex., 5/16" N.C.

32шт.
