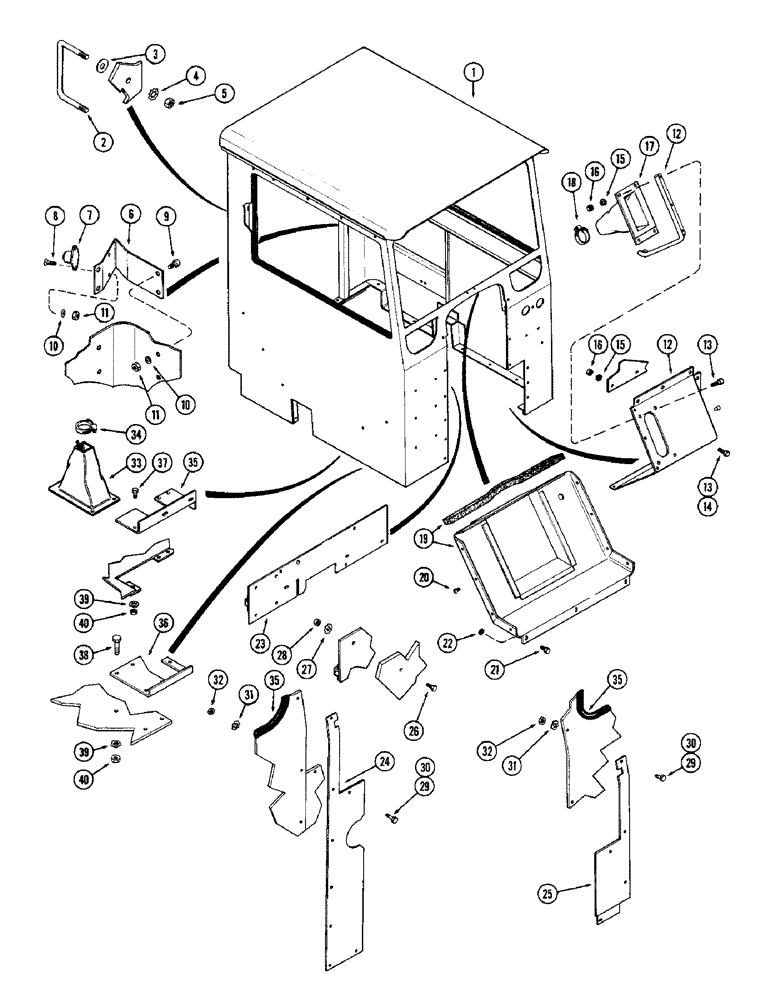

Запчасти Case IH M570AT (090) - CAB, PANELS AND ENCLOSURES (09) - CHASSIS

1

A38698

CAB - operator's

1шт.

2

A36081

HANDLE - grab, cab

1шт.

3

95-7

WASHER,7/16"

- plain, 1/2" I.D. x 1-1/4"

2шт.

4

193-48

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

5

25-108

NUT,1/2"-13, G5

- hex., 1/2" N.C.

2шт.

6

A36076

BRACKET - door check

1шт.

7

A36077

SOCKET - door check

1шт.

8

68-416

SCREW - mach., 1/4 x 1" N.C. oval hd.

2шт.

9

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

10

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, 1/4" int. - ext. Shakeproof

6шт.

11

25-104

NUT,1/4"-20, G5

6шт.

12

A38112

HOUSING ASSY. - clutch pedal

1шт.

13

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

9шт.

14

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

3шт.

15

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, 1/4" int. ext. Shakeproof

12шт.

16

25-104

NUT,1/4"-20, G5

12шт.

17

A36072

BOOT - clutch pedal

1шт.

18

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP ASSY. - boot (1-3/16" to 1-3/4")

1шт.

19

A38107

CLOSURE ASSY. - instrument panel

1шт.

20

187-525

SCREW - mach., #8 x 1/2" blunt pt. rd. hd.

8шт.

21

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

22

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, 1/4" int. - ext. Shakeproof

4шт.

23

A38101

CLOSURE ASSY. - front

1шт.

24

A39066

FILLER - front, R.H.

1шт.

25

A39067

FILLER - front, L.H.

1шт.

26

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

27

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - lock, 3/8" int. - ext. Shakeproof

3шт.

28

25-106

NUT,3/8"-16, G5

- hex., 3/8" N.C.

3шт.

29

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

7шт.

30

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

5шт.

31

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, 1/4" int. - ext. Shakeproof

12шт.

32

25-104

NUT,1/4"-20, G5

12шт.

33

A36069

BOOT ASSY. - brake pedal

1шт.

34

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP ASSY. - boot (1-3/16" to 1-3/4")

1шт.

35

A39065

CLOSURE - brake pedal

1шт.

36

A39070

RETAINER - brake boot

1шт.

37

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

38

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

39

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, 1/4" int. - ext. Shakeproof

7шт.

40

25-104

NUT,1/4"-20, G5

7шт.
