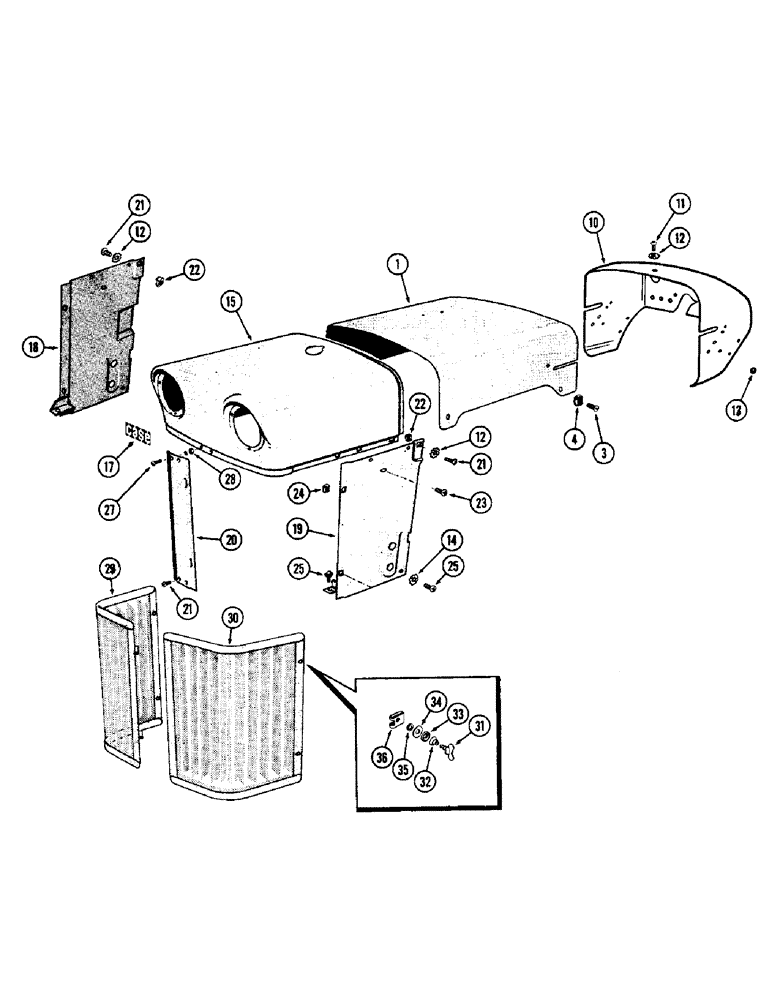

Запчасти Case IH M570AT (082) - HOOD, GRILLE AND SIDE PANELS (09) - CHASSIS

1

A37822

HOOD - engine

1шт.

3

175-429

SCREW,Phil Truss Hd, 5/16" - 24 x 5/8"

- 5/16" x 5/8" N.F. truss hd.

2шт.

4

131-123

NUT,Ret, 5/16"-24

- cage, 5/16" N.F. (On fuel tank)

2шт.

10

A38712

PANEL - instrument

1шт.

11

175-431

SCREW - 1/4" x 3/8" truss hd.

3шт.

12

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, int. - ext. Shakeproof

7шт.

13

A27338

GROMMET

- panel wiring

2шт.

14

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

15

A38983

CAP - grille, radiator (w/o compressor)

1шт.

15

A38984

CAP - grille, radiator (w/compressor)

1шт.

17

321-1570

DECAL

- Case trademark

1шт.

18

A38828

PANEL - R.H. side, radiator

1шт.

19

A36681

PANEL - L.H. side, radiator

1шт.

20

G30275

BRACE - center, radiator grille

1шт.

21

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- 1/4 x 1/2" N.C. truss hd.

8шт.

22

131-102

SPRING NUT,Ret, 1/4"-20

4шт.

23

174-429

SCREW - 5/16 x 5/8" N.F. truss hd.

2шт.

24

131-123

NUT,Ret, 5/16"-24

- cage, 5/16" N.F. (To radiator)

2шт.

25

175-437

SCREW,Phil Truss Hd, 5/16" - 18 x 5/8"

- 5/16 x 5/8" N.C. truss hd.

4шт.

27

175-408

SCREW,Phil Truss Head, 1/4" - 20 x 3/4"

- 1/4 x 3/4" N.C. truss hd.

2шт.

28

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

29

A36686

GRILLE

- screen R.H., radiator

1шт.

30

A36687

GRILLE - screen L.H., radiator

1шт.

31

A32881

STUD

- grille lock

4шт.

32

A32882

VALVE SPRING

SPRING - lock stud

4шт.

33

A32883

WASHER

- wear, grille stud

4шт.

34

A34012

WASHER

- grille stud

4шт.

35

A36041

RETAINER

RING - snap, stud retaining

4шт.

36

A36042

CLIP

RECEPTACLE - grille stud

4шт.
