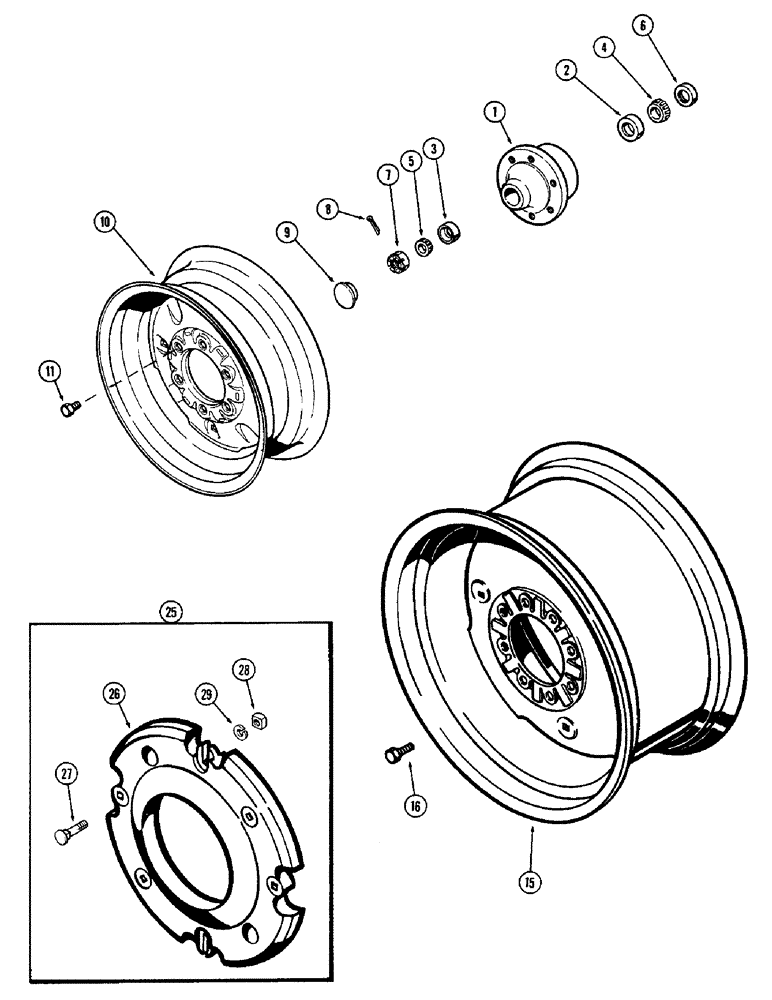

Запчасти Case IH M570AT (078) - FRONT WHEELS (06) - POWER TRAIN

1

G13065

X

HUB ASSY. - front wheel, Includes: Ref. 2 and 3

2шт.

2

G57451

BEARING, CUP

CUP - inner bearing

1шт.

3

B12410

BEARING, CUP,1.782" OD

CUP - outer bearing

1шт.

4

G57452

ROLLER BEARING

CONE - inner bearing

2шт.

5

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - outer bearing

2шт.

6

G13053

OIL SEAL

- oil, inner

2шт.

7

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - hub to spindle (3/4" N.F. slotted)

2шт.

8

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

9

B13280

HUB CAP

CAP - hub

2шт.

10

A38067

WHEEL - front (7.50 x 16 tire)

2шт.

11

A30064

BOLT

-, Serial Range: wheel-hub

12шт.

15

A38974

WHEEL - integral (14.9 x 24 tire)

2шт.

16

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - wheel to hub (5/8" N.F. x 1")

16шт.

25

G12612

WEIGHT ATTACHMENT - rear wheel (Machy. item), Includes: Ref. 26 - 29

1шт.

26

NSS

NOT SOLD SEPARAT

WEIGHT - (78 lbs.)

2шт.

27

11-1048

BOLT - 5/8 x 3" N.C. rd. hd. sq. nk.

8шт.

28

25-1010

NUT,5/8"-11, G5

8шт.

29

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.
