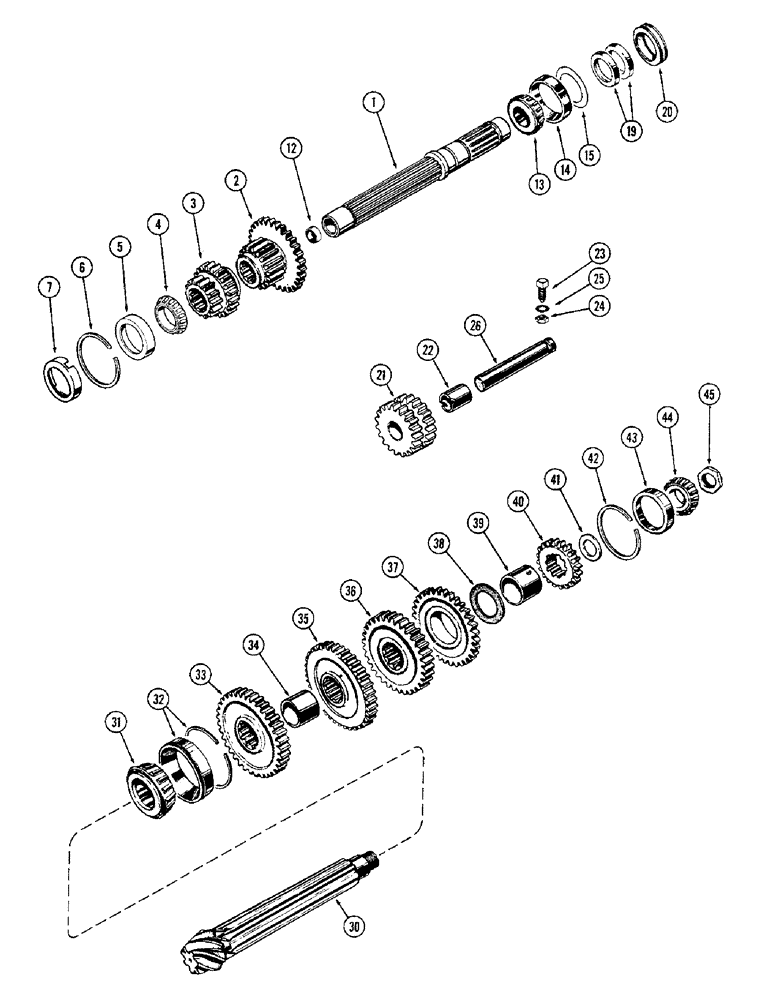

Запчасти Case IH M570AT (062) - TRANSMISSION SHAFTS AND GEARS (06) - POWER TRAIN

1

G13462

SHAFT

- main, trans. drive gear (14-19/32" lg.)

1шт.

2

A38917

GEAR

- 3rd gear (28T) & 4th gear (44T)

1шт.

3

A38630

GEAR

- 1st gear (16T) & 2nd gear (25T)

1шт.

4

A29976

ROLLER BEARING

CONE - rear bearing, main shaft

1шт.

5

A29977

BEARING CUP

CUP - rear bearing, mainshaft

1шт.

6

A29971

RING

- snap, rear bearing

1шт.

7

G10616

CUP

- oiling

1шт.

12

A38534

PLUG

- cup, main shaft rear (1-1/16")

1шт.

13

G10424

CONE

- front bearing, main shaft

1шт.

14

G10425

CUP

- front bearing, main shaft

1шт.

15

G10340

SHIM,.007" Thk

Bearing adjusting .007" Thk

1шт.

15

G10341

SHIM,.005" Thk

Bearing adjusting .005" Thk

1шт.

19

G10422

OIL SEAL

- oil, main shaft front

2шт.

20

G10311

COLLAR

- pilot

1шт.

21

A37803

GEAR ASSY. - reverse idler, Includes: Ref. 22

1шт.

22

A30196

BUSHING

- gear

1шт.

23

181-249

SCREW - set, 3/8 x 1-1/2" N.C. sq. hd. dog point

1шт.

24

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

25

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

26

G10328

SHAFT

- reverse idler

1шт.

30

NSS

NOT SOLD SEPARAT

COUNTERSHAFT (Order from Fig. 64)

1шт.

31

A30116

ROLLER BEARING,1.625" ID x 1.1875"

CONE - rear bearing, countershaft

1шт.

32

A30115

CUP

- rear bearing, countershaft

1шт.

33

CASA38157

GEAR

- countershaft 1st (47T)

1шт.

34

A36619

BUSHING

SPACER - 1st & 2nd gear (1-5/8" long)

1шт.

35

A37732

GEAR

- countershaft 2nd (38T)

1шт.

36

A37731

GEAR

- countershaft 3rd (35T)

1шт.

37

A37730

GEAR

- oil slinger (35T)

1шт.

38

G46070

WASHER

- slinger gear (1-5/8 I.D. x 2-3/8" O.D.)

1шт.

39

G13260

BUSHING

SPACER - 4th gear (1-1/4" lg.)

1шт.

40

G16527

GEAR

- countershaft 4th (19T)

1шт.

41

G10790

SPACER

- countershaft (.164")

1шт.

41

G16530

SPACER

- countershaft (.169")

1шт.

41

G10791

SPACER

- countershaft (.174")

1шт.

41

G16531

SPACER

- countershaft (.179")

1шт.

41

G10792

SPACER

- countershaft (184")

1шт.

41

G16532

SPACER

- countershaft (.189")

1шт.

41

G10793

SPACER

- countershaft (.194")

1шт.

41

G16533

SPACER

- countershaft (.199")

1шт.

41

G10794

SPACER

- countershaft (.204")

1шт.

41

G16534

X

SPACER - countershaft (.209")

1шт.

41

G10795

SPACER

- countershaft (.214")

1шт.

41

G16535

SPACER

- countershaft (.219")

1шт.

41

G16510

SPACER

- countershaft (.224")

1шт.

41

G16536

SPACER

- countershaft (.229")

1шт.

41

G16511

SPACER

- countershaft (.234")

1шт.

41

G16537

X

SPACER - countershaft (.239")

1шт.

41

G16512

SPACER

- countershaft (.244")

1шт.

42

A29971

RING

- snap, front bearing

1шт.

43

A29977

BEARING CUP

CUP - front bearing, countershaft

1шт.

44

A30072

ROLLER BEARING,1.19" ID x 0.771"

CONE - front bearing, countershaft

1шт.

45

G49010

LOCK NUT

- adjusting, countershaft

1шт.
