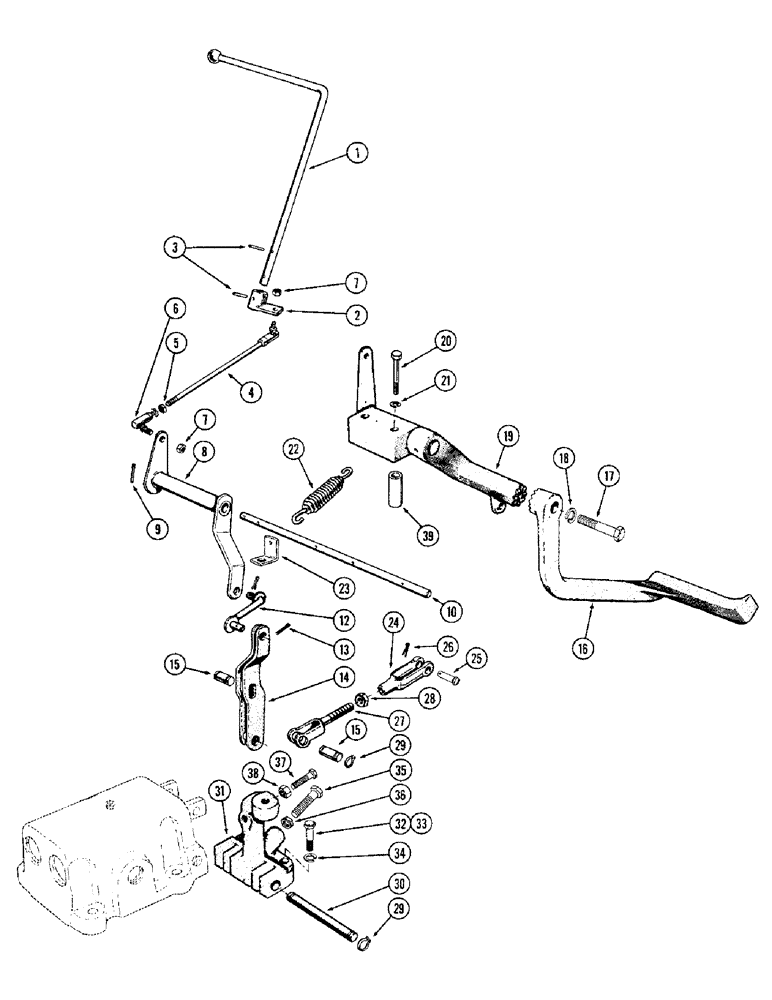

Запчасти Case IH M570AT (056) - CONTROL VALVE LINKAGE, TORQUE CONVERTER DRIVE (06) - POWER TRAIN

1

G15621

HANDLE

- direct drive control

1шт.

2

G1338

LEVER

- lower, direct drive

1шт.

3

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, 5/32" x 7/8", Slotted

2шт.

4

G45232

BALL

LINK ASSY. - ball joint, Includes: Ref. 5 and 6

1шт.

5

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

1шт.

6

G45350

BALL JOINT

- front

1шт.

7

131-902

NUT,1/4"-28

- lock, 1/4" N.F.

2шт.

8

A35645

SHAFT ASSY.

LEVER - cross shaft, direct drive

1шт.

9

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

10

A35637

SHAFT - cross

1шт.

12

G30260

LINK

- cross shaft lever

1шт.

13

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

14

G14133

LINK - direct drive spool

1шт.

15

G16824

AXLE PIN

PIN -, Serial Range: link-spool

2шт.

16

G1301

PEDAL - foot, converter drive

1шт.

17

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- 1/2 x 2-1/4" N.C. hex. hd.

1шт.

18

92-8

LOCK WASHER,1/2"

1шт.

19

G30324

LEVER

ASSY. - converter drive

1шт.

20

13-676

CAPSCREW,Hex, 3/8" - 16 x 4 3/4", Gr 5

BOLT - 3/8 x 4" N.C. hex. hd.

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

G48509

VALVE SPRING

SPRING - pedal return

1шт.

23

G15666

CLIP - return spring

1шт.

24

2133

YOKE - control pedal

1шт.

25

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

1шт.

26

132-26

COTTER PIN

PIN- split (Cotter), 3/32" x 3/4"

1шт.

27

G46228

YOKE

- converter drive spool

1шт.

28

25-155

JAM NUT,Jam, 5/16"-24, G5

- 5/16" N.F. hex. jam

1шт.

29

G46146

SNAP RING,#37, Ext

RING - snap, , pivot & link pin #37, Ext

6шт.

30

G16825

PIN

- pivot

1шт.

31

G1381

SUPPORT - direct drive link

1шт.

32

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

33

13-634

BOLT,Hex, 3/8" - 16 x 2-1/8", Gr 5

1шт.

34

92-6

LOCK WASHER,3/8"

2шт.

35

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Pedal adjusting Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

36

25-146

JAM NUT,Jam, 3/8"-16, G5

- jam, 3/8" N.C. hex.

1шт.

37

123-100

BOLT,Hex, 5/16"-18 x 1 1/2", G5, Full Thd

- spool adjusting, 5/16 x 1-1/2" N.C. hex.

1шт.

38

25-145

JAM NUT,Jam, 5/16"-18, G5

- jam, 5/16" N.C. hex.

1шт.

39

A38985

HOUSING

SPACER - support, clutch lever

2шт.
