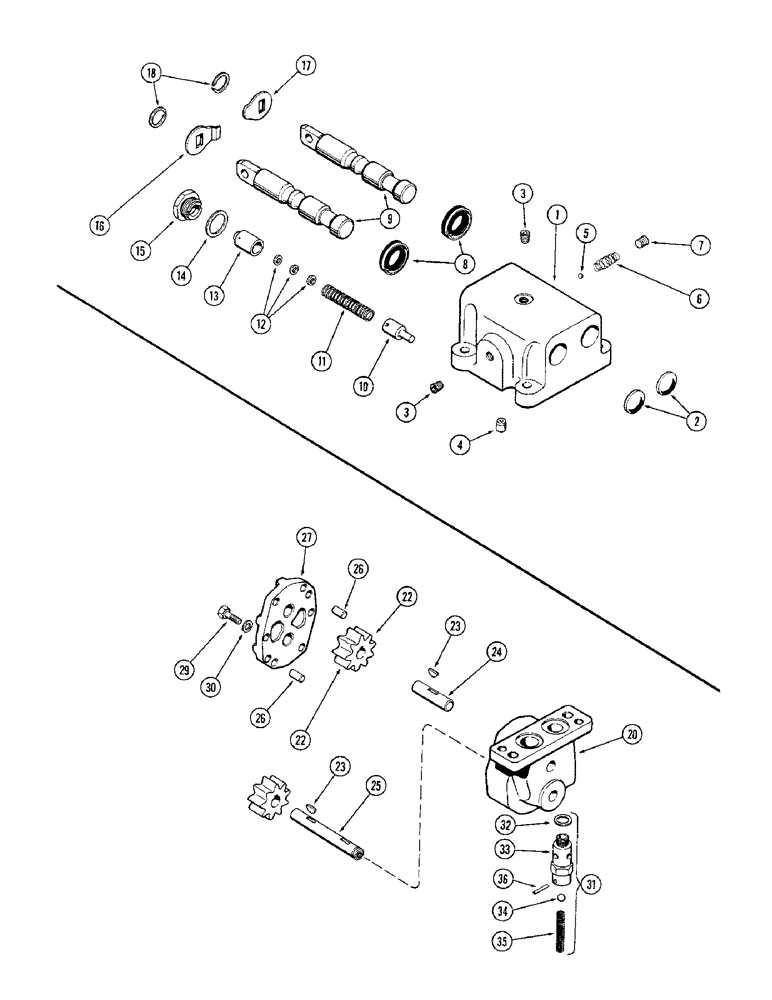

Запчасти Case IH M570AT (052) - VALVE, TORQUE CONVERTER DRIVE, HYDRAULIC PUMP (06) - POWER TRAIN

G14458

VALVE ASSY - complete, Includes: Ref. 1 - 18

1шт.

1

A11504

BODY - valve

1шт.

2

41-16

PLUG,Exp, 1"

- spool opening

2шт.

3

221-1840

PLUG

- pipe, 1/8" hex. socket hd.

1шт.

4

A20092

PLUG

- pressure, regulator orifice

1шт.

5

211-7

BALL,1/4" Dia

- steel, check valve 1/4" Dia

1шт.

6

A11517

VALVE SPRING

SPRING - check valve

1шт.

7

221-1849

PLUG

- pipe, 1/8" hex. socket hd.

1шт.

8

A11507

OIL SEAL

- oil, spool

2шт.

9

A11506

SPOOL - valve

2шт.

10

A11510

PLUNGER

- small, pressure regulator

1шт.

11

A11512

VALVE SPRING

SPRING - pressure regulator

1шт.

12

195-9

WASHER - 3/16" plain

1шт.

13

A11511

PLUNGER

- large, pressure regulator

1шт.

14

A11513

GASKET

- cap, pressure regulator

1шт.

15

A11514

CAP - pressure regulator

1шт.

16

G16809

PLATE ASSY.

PLATE - interlock, R.H. spool

1шт.

17

G16808

PLATE ASSY.

PLATE - interlock, L.H. spool

1шт.

18

A29329

RING, SNAP

RING - snap, interlock plate

2шт.

G45386

PUMP

ASSY. - complete, Includes: Ref. 20 - 36, hydraulic

1шт.

20

A11535

HOUSING ASSY. - pump, hydraulic

1шт.

22

A11523

GEAR

- drive and idler, hydraulic pump

2шт.

23

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

Gear to shaft, Hydraulic pump #3, 1/8" x 1/2"

2шт.

24

A11525

SHAFT

- idler gear, hydraulic pump

1шт.

25

A11522

SHAFT

- drive gear, hydraulic pump

1шт.

26

A11528

PIN,7.81mm OD x 14.29mm L

- dowl, cover to housing, hydraulic pump

2шт.

27

A11536

COVER ASSY. - pump, hydraulic

1шт.

29

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Cover, Hydraulic pump Hex, 1/4"-20 x 3/4", G5, Full Thd

6шт.

30

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Hydraulic pump 1/4"

6шт.

31

G30570

VALVE

ASSY. - relief, Includes: Ref. 32 - 36, hydraulic pump

1шт.

32

A11530

GASKET

- valve to housing, hydraulic pump

1шт.

33

NSS

NOT SOLD SEPARAT

BODY - (Order G30570), hydraulic pump

1шт.

34

211-9

BALL,5/16" Dia

- 5/16" chrome, hydraulic pump

1шт.

35

G48512

SPRING

- valve, hydraulic pump

1шт.

36

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, , Hydraulic pump 1/8" x 3/4", Slotted

1шт.
