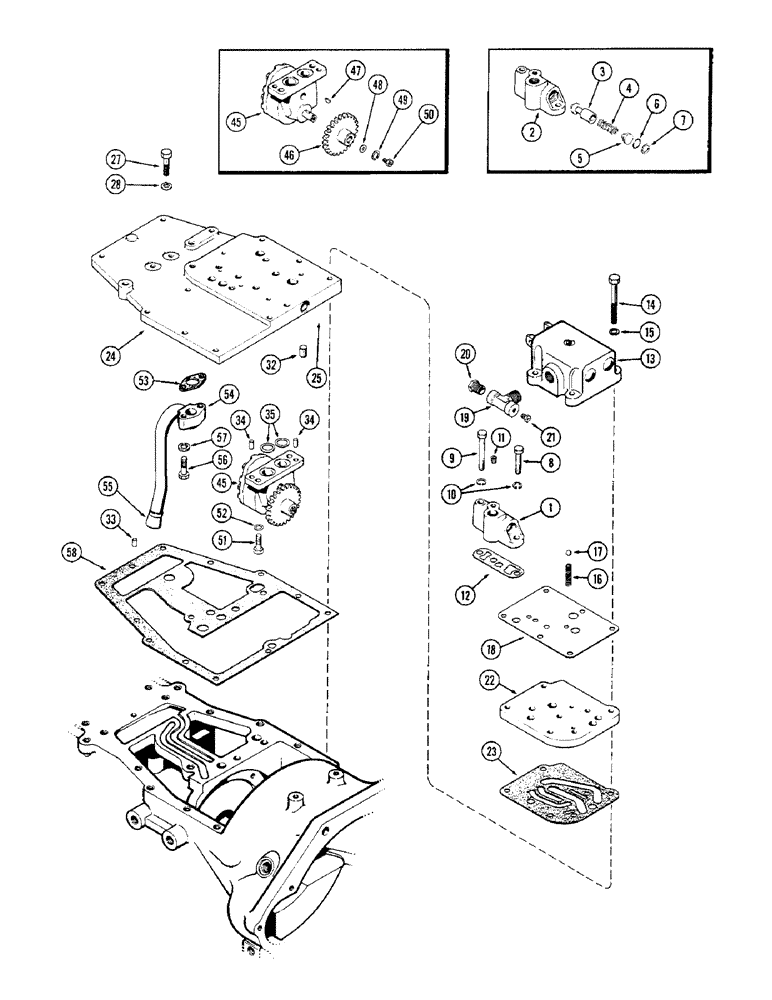

Запчасти Case IH M570AT (050) - CONVERTER PUMP AND VALVE ADAPTER, TORQUE CONVERTER DRIVE (06) - POWER TRAIN

1

A36898

VALVE

ASSY. - regulator, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - (Order A36898)

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - (Order A36898)

1шт.

4

A30106

VALVE SPRING

SPRING - valve spool

1шт.

5

G16779

CAP

PLUG - end

1шт.

6

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

"O" RING - plug

1шт.

7

G46150

SNAP RING,0.75", Int, #75

RING - snap, , end plug 0.75", Int, #75

1шт.

8

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

9

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8 x 3-1/4" N.C. hex.

1шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

221-1840

PLUG

- pipe, 1/8" hex. socket hd.

1шт.

12

G46824

GASKET

- regulator valve

1шт.

13

G14458

VALVE ASSY. - control (Repairs Fig. 52)

1шт.

14

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" x 2" N.C. hex.

2шт.

14

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8 x 3" N.C. hex.

2шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

A29285

SPRING

- detent, valve spool

2шт.

17

211-13

BALL,1/2" Dia

- detent, valve spool 1/2" Dia

2шт.

18

A36294

GASKET

- control, Serial Range: valve-plate

1шт.

19

G48005

TEE

FITTING - tee, control valve, Includes: Ref. 20 and 21

1шт.

20

222-506

TUBE NUT,11/16"-16

NUT - cooling tube (1/2" tube)

1шт.

21

222-500

TUBE NUT,5/16" - 24 NPT

NUT - pressure tube (1/8" tube)

1шт.

22

G1250

PLATE - oil distribution

1шт.

23

G46822

GASKET

-, Serial Range: plate-adapter

1шт.

24

A38989

HOUSING - adapter

1шт.

27

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

7шт.

27

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

28

92-6

LOCK WASHER,3/8"

9шт.

32

G10711

PIN

- dowel, housing rear (1/2" O.D. x 3/4" lg.)

1шт.

33

A29426

AXLE PIN

PIN - dowel, housing front (3/8" O.D. x 3/4" lg.)

1шт.

34

A11528

PIN,7.81mm OD x 14.29mm L

- dowel, pump (5/16" O.D. x 9/16" lg.)

2шт.

35

A7075

GASKET

GASKET -, Serial Range: pump-housing

2шт.

45

G45386

PUMP

ASSY. - converter oil (Repairs Fig. 52)

1шт.

46

G16798

GEAR

- pump drive

1шт.

47

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

Gear to pump #3, 1/8" x 1/2"

1шт.

48

G49045

WASHER

- retainer, drive gear

1шт.

49

G46147

SNAP RING,0.625", Int, #62

RING - snap, , drive gear 0.625", Int, #62

1шт.

50

165-101

HEX SOC SCREW,Prev Torque, 1/4" - 28 x 3/8"

SCREW - lock, 1/4 x 3/8" socket hd.

1шт.

51

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Pump Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

52

92-6

LOCK WASHER,3/8"

2шт.

53

A38212

GASKET

- suction tube

1шт.

54

A37943

TUBE

ASSY. - pump to torque tube, Includes: Ref. 55

1шт.

55

A35212

SCREEN

- suction tube

1шт.

56

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.C. hex.

2шт.

57

92-5

LOCK WASHER,5/16"

2шт.

58

G46818

GASKET

- adapter housing

1шт.
