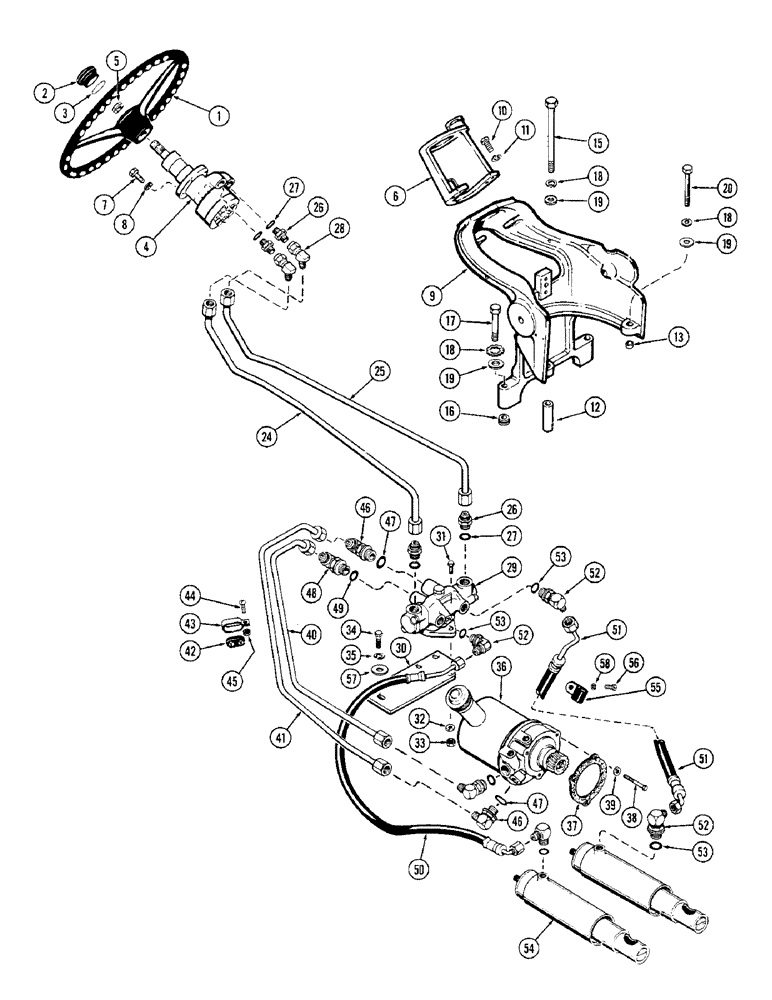

Запчасти Case IH M570AT (068) - STEERING WHEEL, PUMPS AND VALVES, HYDROSTATIC STEERING (05) - STEERING

1

A35602

STEERING WHEEL

WHEEL - steering

1шт.

2

A38785

CYLINDER END CAP

MEDALLION - steering wheel

1шт.

3

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - medallion (2-1/2 x 2-3/4 x 1/8")

1шт.

4

A35579

PUMP

ASSY. - manual (Repairs, Fig. 70), Includes: Ref. 5

1шт.

5

A14567

JAM NUT

- str. wheel to hand pump

1шт.

6

A38019

COIL SPRING

COLUMN - steering upper

1шт.

7

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Hand pump Hex, 5/16"-18 x 1", G5, Full Thd

3шт.

8

92-5

LOCK WASHER,5/16"

3шт.

9

A36178

SUPPORT - steering column, lower

1шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Column to support Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

11

92-6

LOCK WASHER,3/8"

3шт.

12

G49623

SUPPORT TUBE,0.625" OD x 1.255" L

SPACER - support, frt. (1-1/4" lg.)

1шт.

13

G11270

SPACER

SLEEVE - support, frt. (3/8 x 5/8 x 1/4")

2шт.

15

13-688

BULB,Hex, 3/8" - 16 x 5 1/2", Gr 5

BOLT - (3/8 x 5-1/2" N.C. hex.)

1шт.

16

A35627

BUSHING

SPACER - support, (3/8" lg.)

4шт.

17

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

Rear support Hex, 3/8"-16 x 2 3/4", G5

2шт.

18

193-72

LOCK WASHER

- lock, 3/8" int. - ext. Shakeproof

4шт.

19

195-525

WASHER,3/8", SAE

- (3/8 x 3/4 x 5/64")

4шт.

20

13-634

BOLT,Hex, 3/8" - 16 x 2-1/8", Gr 5

1шт.

24

A35600

TUBE

- pump to valve, right hand

1шт.

25

A35601

TUBE

- pump to valve, left hand

1шт.

26

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, HYD., , Assy (at valve & pump), Incl. Ref 27 3/4"-16, 37º x 3/4"-16, O-Ring

4шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- connector (41/64" I.D. x 5/64")

1шт.

28

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- (at pump) (45 degree swivel)

2шт.

29

A37980

VALVE

ASSY. - control (Repairs, Fig. 70)

1шт.

30

A35581

SPLIT PIN/SAFETY PIN

PLATE - valve mounting

1шт.

31

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Valve to plate Hex, 3/8"-16 x 1 1/8", G5, Full Thd

3шт.

32

92-6

LOCK WASHER,3/8"

3шт.

33

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

3шт.

34

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Plate Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

35

92-5

LOCK WASHER,5/16"

2шт.

36

A36559

PUMP

ASSY. - power (Repairs, Fig. 72)

1шт.

37

A30042

GASKET

- power strg. pump

1шт.

38

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- pump (3/8 x 3-1/4" N.C. hex.)

3шт.

39

92-6

LOCK WASHER,3/8"

3шт.

40

A35730

TUBE ASSY.

TUBE - pressure (30-3/8" lg.)

1шт.

41

A35731

TUBE - return (33-1/8" lg.)

1шт.

42

G46835

GROMMET

- cushion, pump tubes

1шт.

43

G46194

CLAMP

- tube cushion

1шт.

44

174-203

SCREW,Phil Rnd Hd, #10 - 32 x 3/4"

- clamp (#10 x 3/4" N.F. rd. hd.)

1шт.

45

193-1000

NUT,Keps, w/LW,#10-32

- (#10 N.F. hex.)

1шт.

46

A37080

ELBOW

ASSY. - pump lines, 90 degrees, Includes: Ref. 47

3шт.

47

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - elbow (41/64" I.D. x 5/64")

1шт.

48

A35613

ELBOW

ASSY. - pump tube (90 degrees), Includes: Ref. 49

1шт.

49

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Elbow

1шт.

50

A36806

TUBE ASSY.

HOSE - valve to right hand cyl. (37-1/2" lg.)

1шт.

51

A37081

TUBE ASSY.

HOSE - valve to L.H. cyl.

1шт.

52

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSY. - hoses (90 degrees), Includes: Ref. 53

4шт.

53

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

54

A36761

CYLINDER ASSY. - steering (Repairs, Fig. 72)

1шт.

55

A32569

CLAMP - hose, cylinder

2шт.

56

13-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5, Full Thd

Clamp Hex, 5/8"-11 x 3/4", G5, Full Thd

1шт.

57

95-5

WASHER,3/8" x 7/8" x .083"

- plain, 5/16"

2шт.

58

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.
