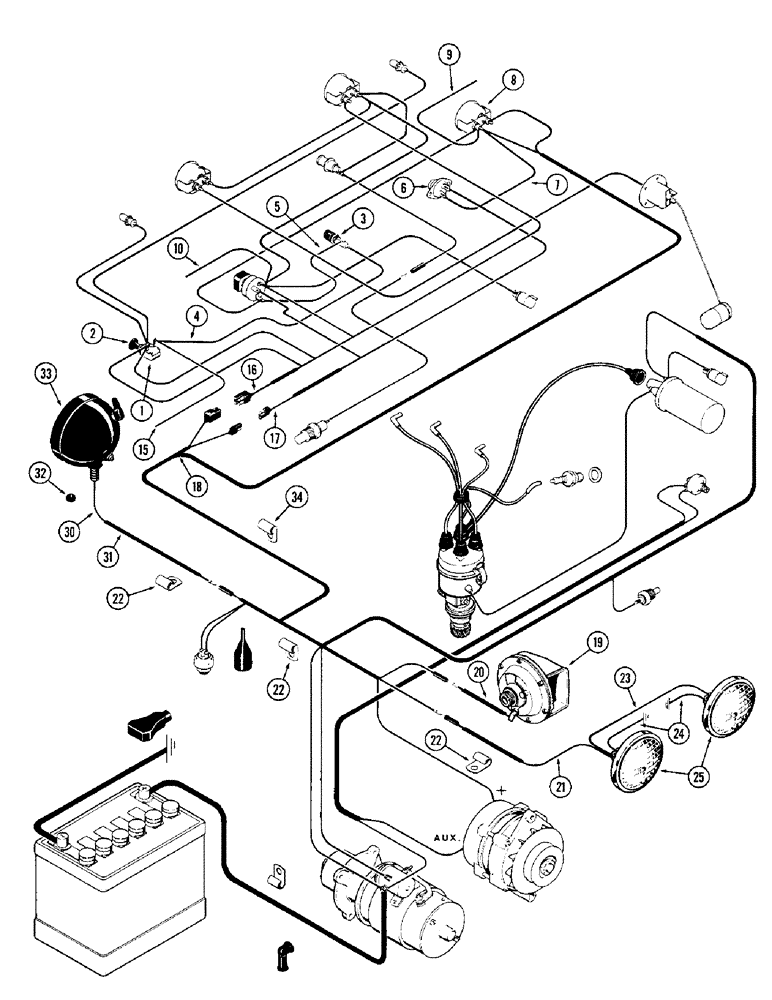

Запчасти Case IH M570AT (042) - LIGHTS AND ACCESSORY WIRING (04) - ELECTRICAL SYSTEMS

1

G13142

IGNITION SWITCH

SWITCH ASSY. - light, Includes: Ref. 2

1шт.

2

G13141

KNOB

- light switch

1шт.

3

A22874

HOLDER

ASSY. - fuse (Repairs Fig. 34)

1шт.

4

A22876

ELECTRICAL WIRE

WIRE - fuse to light switch (Red 8-1/2")

1шт.

5

A22875

ELECTRICAL WIRE

WIRE - fuse to starting switch (Red 4")

1шт.

6

A36948

SWITCH

- horn

1шт.

7

A38048

WIRE - horn button to ammeter (Red 8")

1шт.

8

A38046

GAUGE ASSY. - ammeter

1шт.

9

A36067

WIRE - ammeter to wiper (Black 20")

1шт.

10

G13086

WIRE - starting switch to heater switch (Black 16")

1шт.

15

A11945

WIRE - light switch to dome light (Black 12")

1шт.

16

A21613

HARNESS

ASSY. - panel wiring (W/black plug)

1шт.

17

A38044

HARNESS ASSY. - panel wiring (W/red plug)

1шт.

18

A39000

HARNESS

ASSY. - main wiring

1шт.

19

A19581

HORN

- warning (Order from figure 44)

1шт.

20

A38049

WIRE - horn to harness (White 12")

1шт.

21

A11943

WIRE - harness to head lamp (Black 21")

1шт.

22

A37179

CLIP

- wire to hood & fender

7шт.

23

A11764

WIRE - cross, head lamp (Black 16")

1шт.

24

A33439

WIRE - ground, head lamp (Black 12")

2шт.

25

A24572

LAMP

- head (Order from Fig. 44)

1шт.

30

A38068

WIRE - harness to tail lamp (Black 86-1/2")

1шт.

31

A38069

LOOM - tail lamp wire

1шт.

32

A27338

GROMMET

- wire, cab & fender

4шт.

33

A20965

LAMP BASE

LAMP - tail (Order from page 44)

1шт.

34

A38066

CLIP

- light, Serial Range: wire-axle

1шт.
