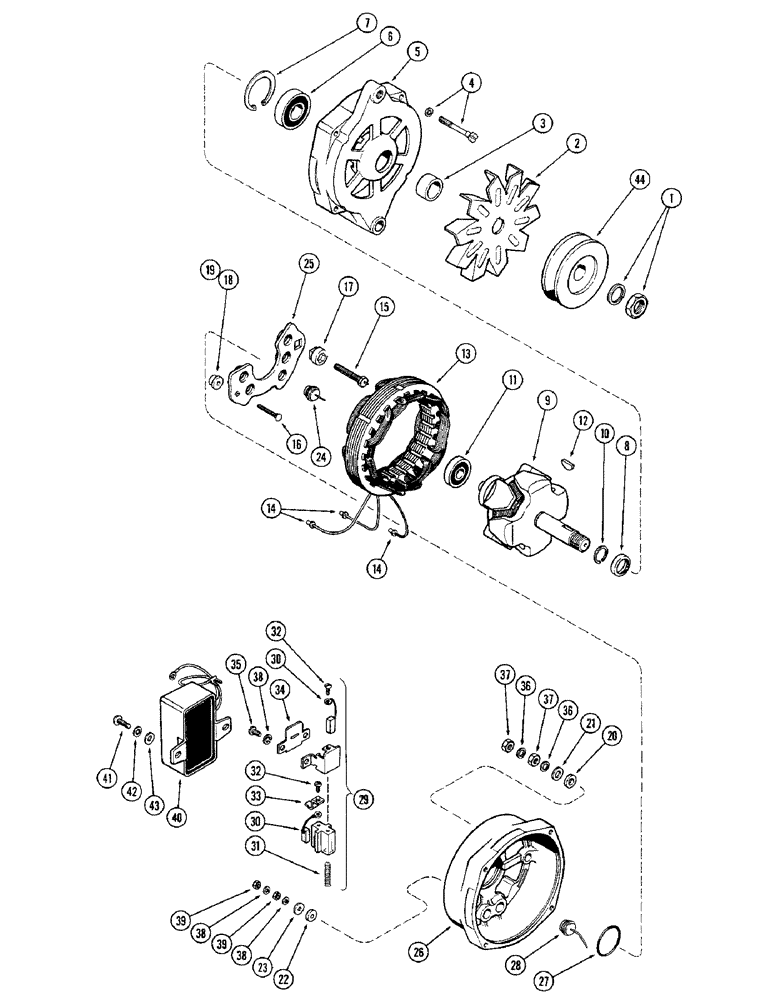

Запчасти Case IH M570AT (038) - ALTERNATOR, (159) SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

A41380

ALTERNATOR

ASSY. (12 V-40 amp.), Includes: Ref. 1 - 39

1шт.

1

A40581

KIT

NUT & WASHER KIT - shaft end

1шт.

2

A41373

FAN

- ventilating

1шт.

3

A41378

SPACER - rotor shaft

1шт.

4

A41128

BOLT KIT - thru (Set of 4 w/washers)

1шт.

5

A41374

HEAD

ASSY. - drive end, Includes: Ref. 6 and 7

1шт.

6

A41068

BALL BEARING

BEARING - ball, drive end

1шт.

7

NSS

NOT SOLD SEPARAT

RING - snap, bearing retainer

1шт.

8

A40579

PROTECTOR - rotor ring

1шт.

9

A41377

ROTOR

ASSY., Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

RING - snap, rotor retainer

1шт.

11

A41077

BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"

BEARING - ball, rotor shaft

1шт.

12

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Pulley to shaft #6, 5/32" x 5/8", HT

1шт.

13

A41136

STATOR ASSY.

1шт.

14

A41065

KIT

EYELET KIT - wire end (Set of 6)

3шт.

A41379

STUD KIT - terminal, Includes: Ref. 15 - 23

1шт.

15

NSS

NOT SOLD SEPARAT

STUD - battery terminal

1шт.

16

NSS

NOT SOLD SEPARAT

STUD - auxiliary terminal

1шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - insulation, batt. terminal

1шт.

18

NSS

NOT SOLD SEPARAT

BUSHING - insulation, aux. terminal

1шт.

19

NSS

NOT SOLD SEPARAT

BUSHING - insulation, aux. terminal

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER - insulating, batt. terminal

1шт.

21

NSS

NOT SOLD SEPARAT

WASHER - plain, batt. terminal

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER - insulating, aux. terminal

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER - plain, aux. terminal

1шт.

24

A41075

DIODE

RECTIFIER - diode, positive

3шт.

25

A41376

PLATE

- rectifier

1шт.

26

A41375

X

HEAD ASSY. - slip ring end, Includes: Ref. 27 and 28

1шт.

27

A41072

O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro

"O" RING - sealing

1шт.

28

A41071

DIODE

RECTIFIER - diode, negative

3шт.

29

A42495

HOLDER

ASSY. - brush, Includes: Ref. 30 - 33

1шт.

30

A41063

BRUSH, COMMUTATOR

BRUSH KIT - armature (Set of 2)

1шт.

31

A41064

VALVE SPRING

SPRING KIT - brush (Set of 2)

1шт.

32

NSS

NOT SOLD SEPARAT

SCREW - mach., brush retainer

2шт.

33

NSS

NOT SOLD SEPARAT

CLIP - brush holder

1шт.

34

A41073

COVER

INSULATION - cover, brush holder

1шт.

35

187-1012

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - mach., #10-24 x 3/8"

2шт.

36

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

37

131-902

NUT,1/4"-28

- hex., 1/4" N.F.

2шт.

38

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

6шт.

39

129-667

NUT,#10-32, LH

- jam, #10-32 hex.

2шт.

40

A41955

REGULATOR

- voltage

1шт.

41

NSS

NOT SOLD SEPARAT

SCREW - mach., regulator mounting

2шт.

42

NSS

NOT SOLD SEPARAT

WASHER - lock, mounting screw

2шт.

43

NSS

NOT SOLD SEPARAT

WASHER - plain, mounting screw

2шт.

44

A40949

PULLEY

- drive

1шт.
