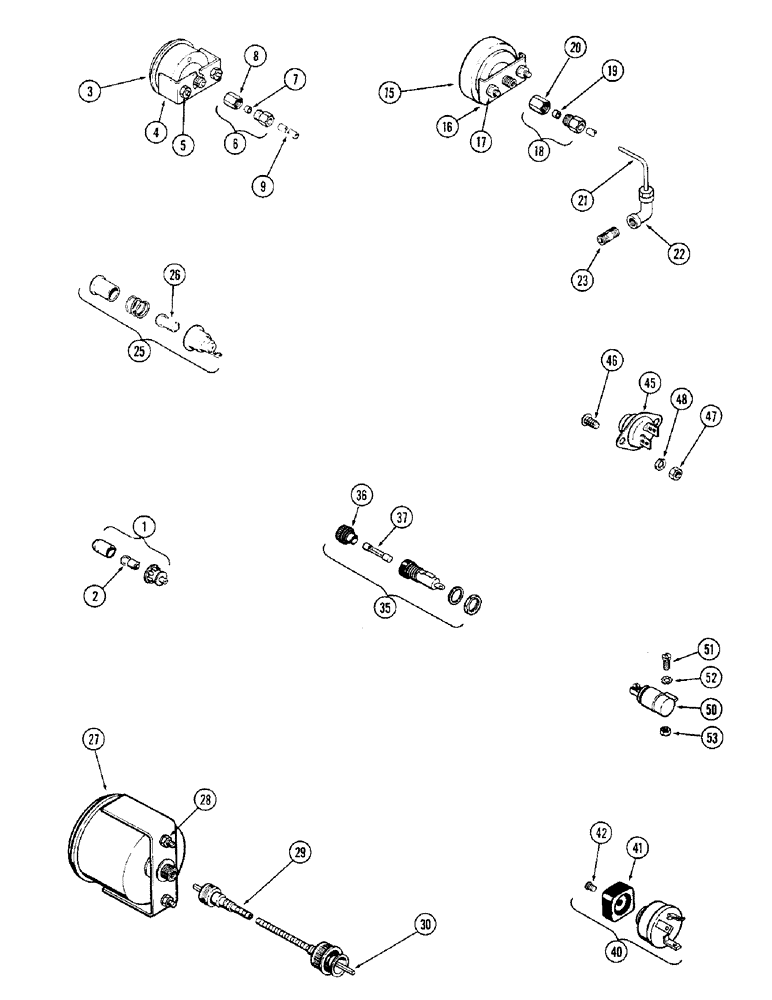

Запчасти Case IH M570AT (034) - INSTRUMENTS AND HARDWARE, (159) SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

1

A24087

LAMP BASE

LAMP ASSY. - instrument panel, Includes: Ref. 2

2шт.

2

A22349

BULB

- panel lamp

1шт.

3

G45257

GAUGE ASSY.

- converter pressure

1шт.

4

G46227

BRACKET - gauge mounting

1шт.

5

129-18

NUT,#12-24

- hex., hex. #12-24

2шт.

6

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

COUPLING - tube to gauge & valve, Includes: Ref. 7 and 8

2шт.

7

222-100

TUBE NUT,1/8" Tube

SLEEVE - 1/8" Tube

1шт.

8

222-110

TUBE NUT,3/8"-24

NUT - 1/8" tube

1шт.

9

G46292

TUBE,0.125" OD x 28" L

- converter oil pressure

1шт.

15

A31169

GAUGE

ASSY. - engine oil pressure, Includes: Ref. 16 and 17

1шт.

16

G46227

BRACKET - gauge mounting

1шт.

17

129-18

NUT,#12-24

- hex., hex. #12-24

2шт.

18

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

COUPLING - tube to gauge & elbow, Includes: Ref. 19 and 20

2шт.

19

222-100

TUBE NUT,1/8" Tube

SLEEVE - 1/8" Tube

1шт.

20

222-110

TUBE NUT,3/8"-24

NUT - 1/8" tube

1шт.

21

A8112

TUBE - engine oil pressure

1шт.

22

222-520

ELBOW,90 Degree x 1/8" NPT x 5/16"-20, Fem

- 1/8" P.T. x 90 degrees

1шт.

23

221-101

PIPE,Nipple, 1/8" NPT x 3/4"

NIPPLE - str., 1/8" P.T. x 3/4" lg.

1шт.

25

A32145

LAMP BASE

LAMP - warning, converter oil temp., Includes: Ref. 26

1шт.

26

A24354

BULB

- warning lamp

1шт.

27

A37767

TACHOMETER

- engine (Includes hour meter)

1шт.

28

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 Keps (Includes lockwasher)

2шт.

29

G45121

HOUSING

CABLE ASSY. - tachometer drive, Includes: Ref. 30

1шт.

30

A24523

KIT

CABLE KIT - replacement, Serial Range: (cut-49")

1шт.

35

A22874

HOLDER

ASSY. - fuse, Includes: Ref. 36

1шт.

36

A10958

CAP

- fuse holder

1шт.

37

223-20

FUSE,20 Amp, Type SFE

- light (20 amp.)

1шт.

40

A35984

SWITCH ASSY. - starting, Includes: Ref. 41 and 42

1шт.

41

A20465

KNOB

- starting switch

1шт.

42

A20468

SCREW,Spcl, #8 - 32 x 5/16"

-, Serial Range: knob-switch

1шт.

45

A36948

SWITCH

- horn

1шт.

46

173-257

SCREW,Phil Rnd Hd, #10 - 24 x 1/2"

- mach., #10-24 x 1/2" N.C. rd. hd.

2шт.

47

129-17

NUT,Hex, #10 - 24

NUT - hex., #10-24

2шт.

48

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

50

A36139

CAPACITOR - ignition by-pass

1шт.

51

173-257

SCREW,Phil Rnd Hd, #10 - 24 x 1/2"

- mach., #10-24 x 1/2" N.C. rd. hd.

1шт.

52

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

1шт.

53

129-17

NUT,Hex, #10 - 24

NUT - hex., #10-24

1шт.
