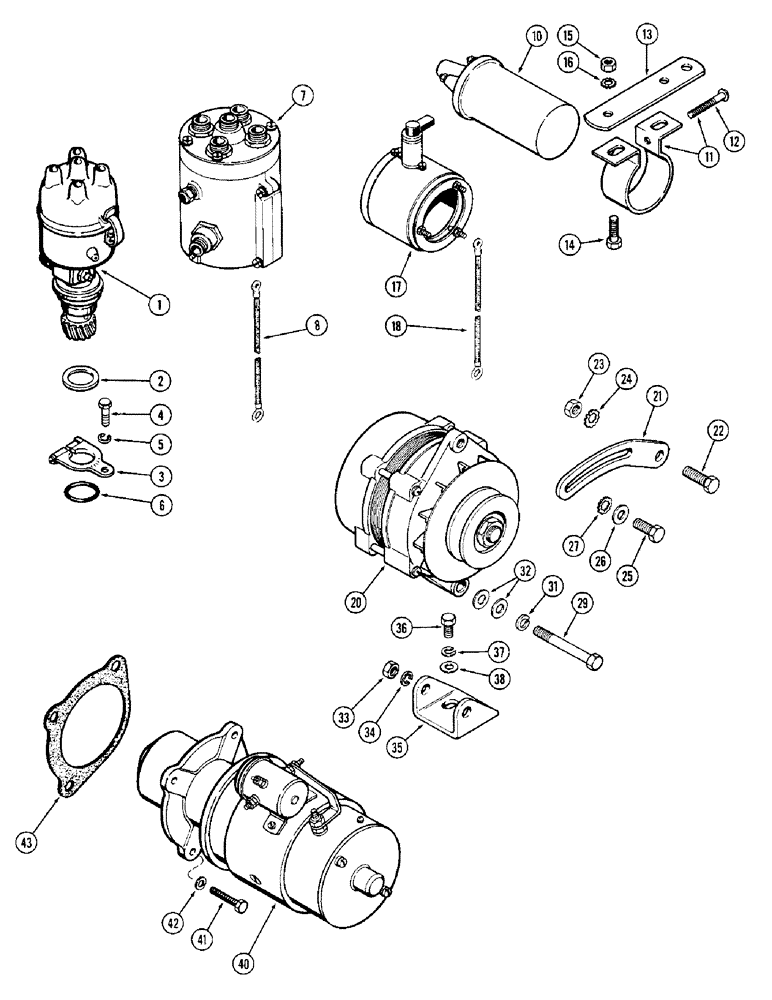

Запчасти Case IH M570AT (032) - ELECTRICAL EQUIPMENT AND HARDWARE, (159) SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

1

A39017

SPARE PART DISTRIBUTOR ASSY. - (Repairs Fig. 36)

1шт.

2

A30080

THRUST WASHER

WASHER - thrust, Serial Range: dist.-block

1шт.

3

A29989

ARM

ARM ASSY. - dist. advance

1шт.

4

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

5

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, 1/4" int. ext. Shakeproof

1шт.

6

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" RING - dist. to block

1шт.

7

A37024

SHIELD

SPARE PART SHIELD - noise suppression, distributor

1шт.

8

A39014

SPARE PART STRAP - ground, dist. shield (6")

1шт.

10

A41820

COIL

COIL - ignition

1шт.

11

G46106

BRACKET

BRACKET ASSY. - coil mounting, Includes: Ref. 12

1шт.

12

187-540

SCREW - mach., #10 x 1/2" rd. hd.

1шт.

13

G11705

BRACKET

STRAP - mounting, Serial Range: coil-engine

1шт.

14

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

2шт.

16

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

17

A39016

SPARE PART SHIELD - noise suppression, coil

1шт.

18

A39015

SPARE PART

STRAP - ground, coil shield (8")

1шт.

20

A41380

ALTERNATOR

ALTERNATOR ASSY. - (Repairs Fig. 38)

1шт.

21

A37017

STRAP

STRAP - adjusting, alternator belt

1шт.

22

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

24

193-72

LOCK WASHER

WASHER - lock, 3/8" int. - .ext. Shakeproof

1шт.

25

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

26

195-103

WASHER,5/16"

WASHER - plain, 3/8" I.D. x 7/8" O.D. x 3/32"

1шт.

27

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

1шт.

29

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

BOLT, Hex, 3/8"-16 x 3", G5

1шт.

31

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

32

195-25

WASHER,3/8"

WASHER, 3/8"

4шт.

33

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

35

A38492

BRACKET

BRACKET - alternator mounting

1шт.

36

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

37

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

38

195-21

WASHER,5/16"

WASHER, , plain (11/32" O.D. x 5/64") 5/16"

2шт.

40

A36584

STARTING MOTOR

STARTING MOTOR ASSY. - (Repairs Fig. 40)

1шт.

40

104223A1R

REMAN-STARTER

Remanufactured STARTER 12 volt Presto Inertia

1шт.

40

104223A1C

CORE-STARTER

Return Part Number, STARTER 12 volt Presto Inertia

1шт.

41

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

3шт.

42

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

43

G46873

GASKET

GASKET - starting, Serial Range: motor-block

1шт.
