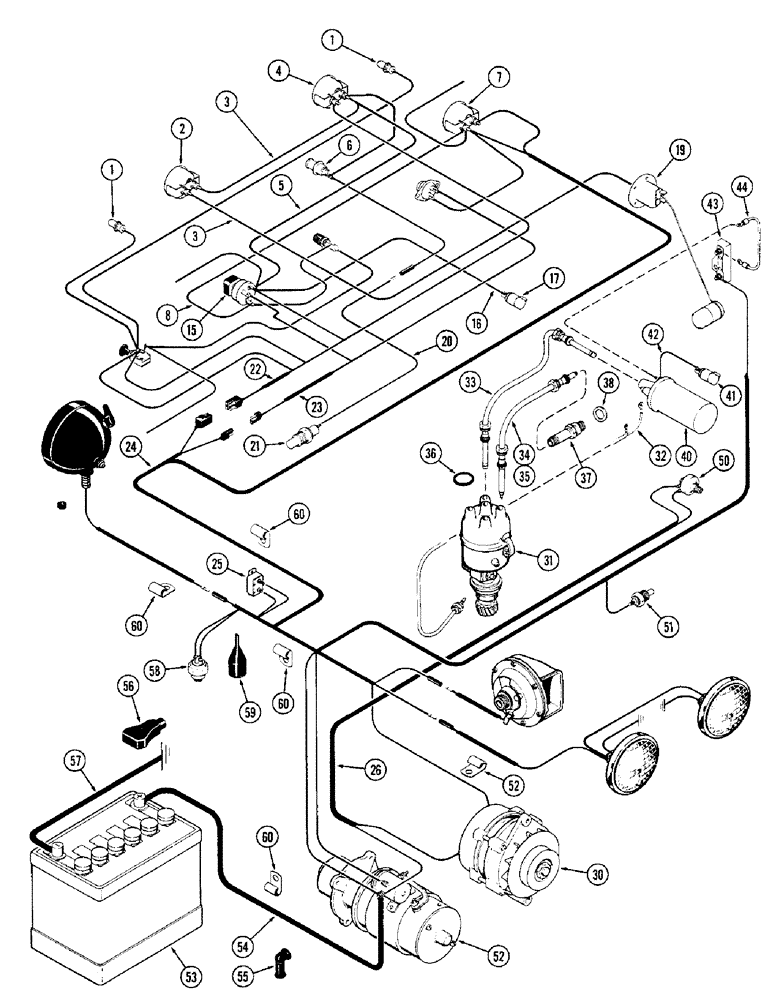

Запчасти Case IH M570AT (030) - ELECTRICAL EQUIPMENT AND WIRING, (159) SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

1

A24087

LAMP BASE

LAMP ASSY. - instrument panel (Repairs Fig. 34)

2шт.

2

A24079

GAUGE ASSY.

GAUGE ASSY. - fuel (Repairs Fig. 34)

1шт.

3

A11783

ELECTRICAL WIRE

WIRE WIRE - fuel gauge to sending unit and temperature gauge (Blue 13")

2шт.

4

A24080

GAUGE

GAUGE - engine temp. (Repairs Fig. 34)

1шт.

5

A24078

ELECTRICAL WIRE

WIRE WIRE - temp. gauge to st. switch (green 15")

1шт.

6

A32145

LAMP BASE

LAMP ASSY. - converter temp. (Repairs Fig. 34)

1шт.

7

A38046

SPARE PART GAUGE ASSY. - ammeter (Repairs Fig. 34)

1шт.

8

A38047

WIRE - ammeter to st. switch (red 14")

1шт.

15

A35984

SPARE PART SWITCH ASSY. - starting (Repairs Fig. 34)

1шт.

16

A38043

WIRE - st. switch to capacitor (black 4-1/2")

1шт.

17

A38042

COIL SPRING

CAPACITOR - ignition by-pass

1шт.

19

A23480

SENDER UNIT

ASSY. - fuel sender

1шт.

20

A36677

ELECTRICAL WIRE

WIRE WIRE - converter warning lamp (black 24")

1шт.

21

A33241

SWITCH

SENDER - converter oil temp.

1шт.

22

A21613

HARNESS

HARNESS ASSY. - panel wiring (w/black plug)

1шт.

23

A38044

SPARE PART HARNESS ASSY. - panel wiring (w/red plug)

1шт.

24

A39000

HARNESS

HARNESS ASSY. - main, engine wiring

1шт.

25

A22877

BREAKER,40A

BREAKER - circuit

1шт.

26

A38486

SPARE PART HARNESS ASSY. - regulator sensing

1шт.

30

A41380

ALTERNATOR

ALTERNATOR ASSY. - (Order from Fig. 32)

1шт.

31

A39017

SPARE PART DISTRIBUTOR ASSY. - (Order from Fig. 32)

1шт.

32

A38999

SPARE PART WIRE - shielded, coil to dist. (lo-tension)

1шт.

33

A38998

SPARE PART WIRE - shielded, coil to dist. (hi-tension)

1шт.

34

A38993

SPARE PART WIRE - shielded, #2 & 3 spark plug (13")

2шт.

35

A38992

SPARE PART WIRE - shielded, #1 & #4 spark plug (17")

2шт.

36

A30109

WASHER

RING - harness, distributor wires

1шт.

37

A31151

SPARE PART PLUG ASSY. - spark (shielded), Includes: Ref. 38

4шт.

38

G46839

GASKET

GASKET - seat, Serial Range: plug-head

1шт.

40

A41820

COIL

COIL - ignition (Order from Fig. 32)

1шт.

41

A38042

COIL SPRING

CAPACITOR - ignition by-pass

1шт.

42

A38043

WIRE - coil to capacitor (Black 4-1/2")

1шт.

43

A24504

RESISTOR

RESISTOR - ballast, distributor

1шт.

44

A39018

SPARE PART WIRE - coil to resistor (11" white)

1шт.

50

D28798

SWITCH

SWITCH ASSY. - engine oil pressure

1шт.

51

A21462

SENDER UNIT

SENDER SENDER - engine temperature

1шт.

52

A36584

STARTING MOTOR

STARTING MOTOR - (Order from Fig. 32)

1шт.

52

104223A1R

REMAN-STARTER

Remanufactured STARTER 12 volt Presto Inertia

1шт.

52

104223A1C

CORE-STARTER

Return Part Number, STARTER 12 volt Presto Inertia

1шт.

53

F22631

DRY BATTERY

BATTERY - (12 volt)

1шт.

54

A38063

SPARE PART CABLE - battery to solenoid (43")

1шт.

55

A21753

CAP

NIPPLE - solenoid terminal

1шт.

56

A27072

COVER

BOOT - battery terminal

1шт.

57

A38062

SPARE PART CABLE - battery ground (21")

1шт.

58

A20990

SWITCH

SWITCH - safety, neutral start

1шт.

59

A20991

BOOT

BOOT - neutral start switch

1шт.

60

A37179

CLIP

CLIP - harness & cable

6шт.
