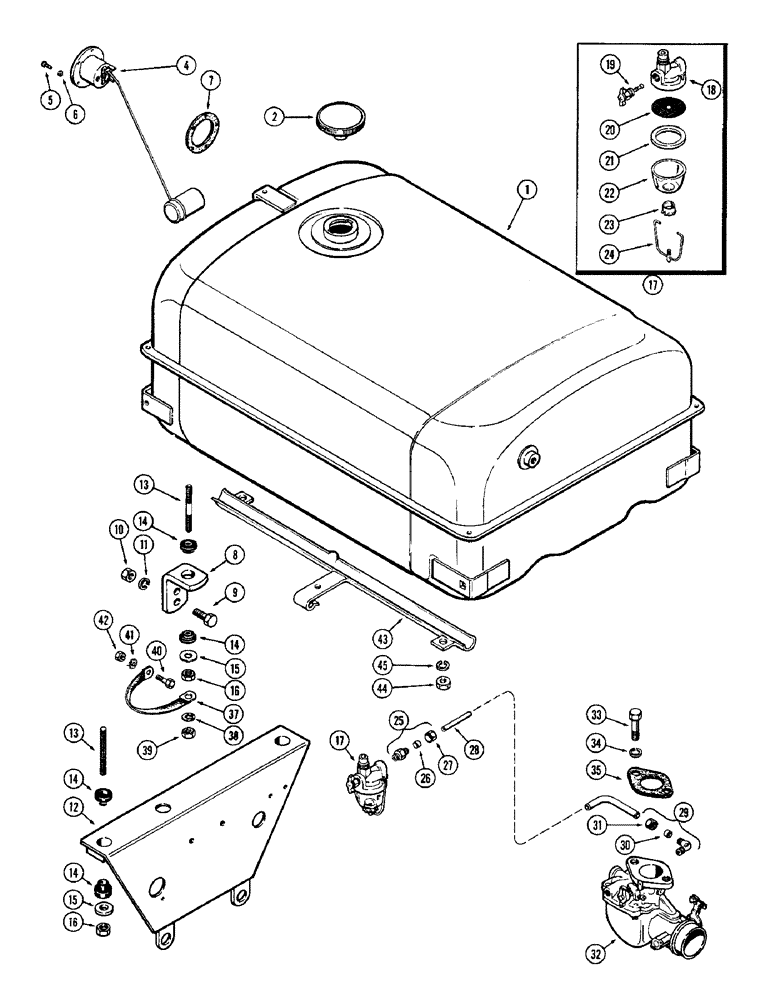

Запчасти Case IH M570AT (026) - FUEL TANK, (159) SPARK IGNITION ENGINE (03) - FUEL SYSTEM

1

A36560

TANK

- fuel

1шт.

2

A32119

CAP

- fuel tank

1шт.

4

A23480

SENDER UNIT

SENDER - fuel gauge

1шт.

5

174-96

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- #10 x 7/16" rd. hd.

5шт.

6

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

7

A11822

GASKET

-, Serial Range: sender-tank

1шт.

8

A36177

SUPPORT - rear, fuel tank

1шт.

9

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16" x 1-1/4" N.C. hex. hd.

2шт.

10

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

11

92-5

LOCK WASHER,5/16"

2шт.

12

A38818

SUPPORT - front, fuel tank

1шт.

13

A8373

STUD

- tank mtg. (3/8" x 2-7/16")

3шт.

14

A7336

CUSHION

- rubber, tank support

6шт.

15

B18261

WASHER

- stud

3шт.

16

131-5

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8" N.F. hex.

3шт.

17

A30049

STRAINER ELEMENT

STRAINER ASSY. - fuel, Includes: Ref. 18 - 24

1шт.

18

A11214

HEAD

- strainer

1шт.

19

A11205

VALVE

- shut off

1шт.

20

A11211

FILTER SCREEN

SCREEN ASSY. - filtering

1шт.

21

A11208

GASKET

- bowl

1шт.

22

A11209

BOWL

- fuel

1шт.

23

A11210

ADJUSTER

CUP & NUT - bowl centering

1шт.

24

A11212

BAIL

ASSY. - bowl retaining

1шт.

25

222-24

FITTING,9/16"-24 x 1/8" NPTF

CONNECTOR ASSY. - 5/16" tube x 1/8" P.T., Includes: Ref. 26 and 27

1шт.

26

222-103

SLEEVE,5/16" Tube

1шт.

27

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

1шт.

28

G46268

FUEL TUBE,0.312" OD x 20.5" L

TUBE - fuel, strainer to carburetor

1шт.

29

222-619

ELBOW,90 Degree, 1/2"-24 x 1/8" NPT, Comp

ASSY. - 90 degrees, 5/16" tube x 1/8" P.T., Includes: Ref. 30 and 31

1шт.

30

222-653

SLEEVE,5/16" Tube, Comp

- 5/16" tube

1шт.

31

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT - 5/16" tube

1шт.

32

A37173

CARBURETOR

ASSY. - (Repairs Fig. 28)

1шт.

33

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

34

92-6

LOCK WASHER,3/8"

2шт.

35

G46826

GASKET

-, Serial Range: carb.-manifold

1шт.

36

A36578

ROD

CONTROL - flexible choke

1шт.

37

A36137

STRAP

- ground, fuel tank

1шт.

38

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

39

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex., 3/8" N.F.

1шт.

40

114-5

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

- hex. hd., 1/4" x 3/4" N.F.

1шт.

41

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, 1/4" int. - ext. Shakeproof

1шт.

42

193-1001

NUT,Keps, w/LW, 1/4"-28

- 1/4" N.F. keps (Including lockwasher)

1шт.

43

A38438

CONDUIT - wire harness

1шт.

44

9635082

NUT,5/16" - 18, Gr 5

- hex., 5/16" N.C.

2шт.

45

92-5

LOCK WASHER,5/16"

2шт.

46

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

47

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex. jam, 3/8" N.F.

1шт.
