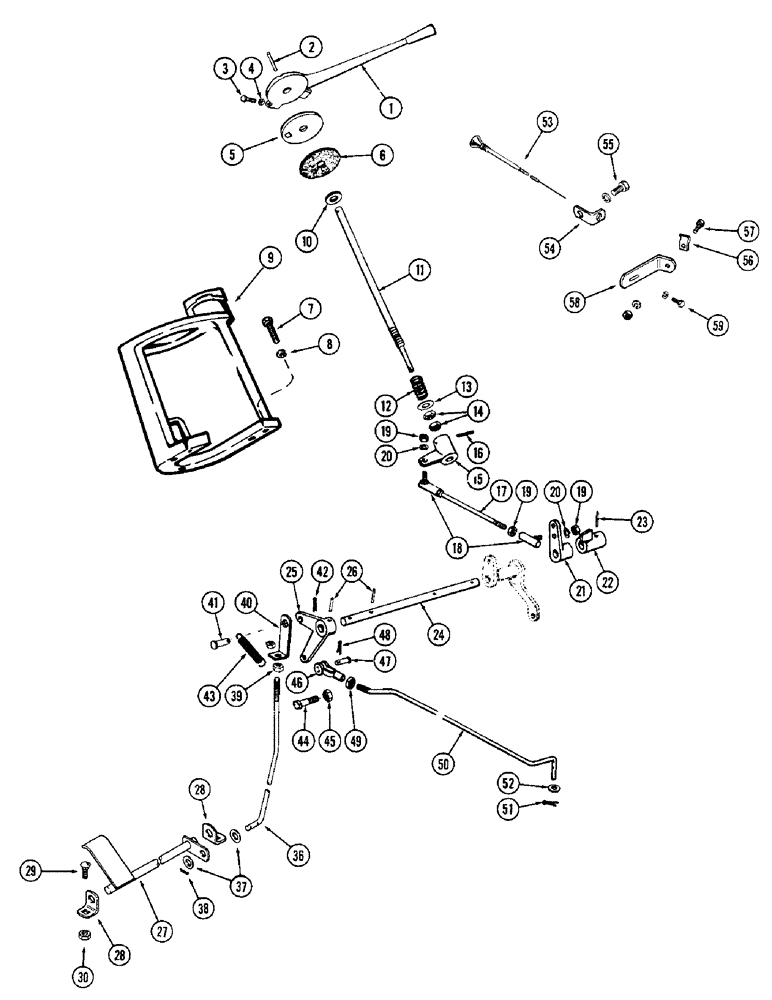

Запчасти Case IH M570AT (024) - THROTTLE LINKAGE, (159) SPARK IGNITION ENGINE (03) - FUEL SYSTEM

1

A38018

LEVER

- hand

1шт.

2

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

3

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Stop Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

4

25-104

NUT,1/4"-20, G5

2шт.

5

A57029

DISC

- friction

1шт.

6

A11969

GASKET

DISC - friction

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

8

92-6

LOCK WASHER,3/8"

3шт.

9

A38019

COIL SPRING

COLUMN - steering

1шт.

10

A32838

WASHER

- spacer

1шт.

11

A36512

SHAFT

- hand lever

1шт.

12

A34113

SPRING

- tension

1шт.

13

195-33

WASHER,1/2"

- plain 1/2"

1шт.

14

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.F. hex.

2шт.

15

A35644

LEVER - lower

1шт.

16

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

17

A35642

ROD

- intermediate

1шт.

18

A10329

BALL JOINT,1/4" - 28 x 1"

- intermediate shaft

2шт.

19

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

4шт.

20

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21

A35638

LEVER

- cross shaft

1шт.

22

A35639

LEVER

- override, foot throttle

1шт.

23

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

24

A35637

SHAFT - cross, throttle control

1шт.

25

A35633

LEVER - throttle rod

1шт.

26

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

2шт.

27

A38980

PEDAL - foot, throttle control

1шт.

28

A38982

BRACKET - pivot, foot throttle

2шт.

29

111-202

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

30

9635082

NUT,5/16" - 18, Gr 5

2шт.

36

A38977

ROD - foot throttle

1шт.

37

195-24

WASHER,5/16"

2шт.

38

132-26

COTTER PIN

PIN - split (Cotter), 3/32" x 3/4"

1шт.

39

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

40

G16898

LINK - foot throttle, Serial Range: rod-lever

1шт.

41

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Link to lever 3/8" x 1.060"

1шт.

42

132-26

COTTER PIN

PIN - split (Cotter), 3/32" x 3/4"

1шт.

43

B18277

SPRING

- return

1шт.

44

14-648

CAPSCREW,Hex, 3/8" - 24 x 3", Gr 5

BOLT - 3/8 x 3" N.F. hex. hd.

1шт.

45

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F. hex.

2шт.

46

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE - throttle rod

1шт.

47

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke

2шт.

48

132-26

COTTER PIN

PIN - split (Cotter), 3/32" x 3/4"

1шт.

49

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

1шт.

50

A35634

ROD

- throttle

1шт.

51

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

2шт.

52

95-6

WASHER,3/8"

- plain 3/8"

1шт.

53

A38458

CONTROL

- choke, carburetor

1шт.

54

A38446

BRACKET

- control to steering column

1шт.

55

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

56

A26673

CLIP

- control

1шт.

57

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

58

A38446

BRACKET

- control clip to tank support

1шт.

59

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.
