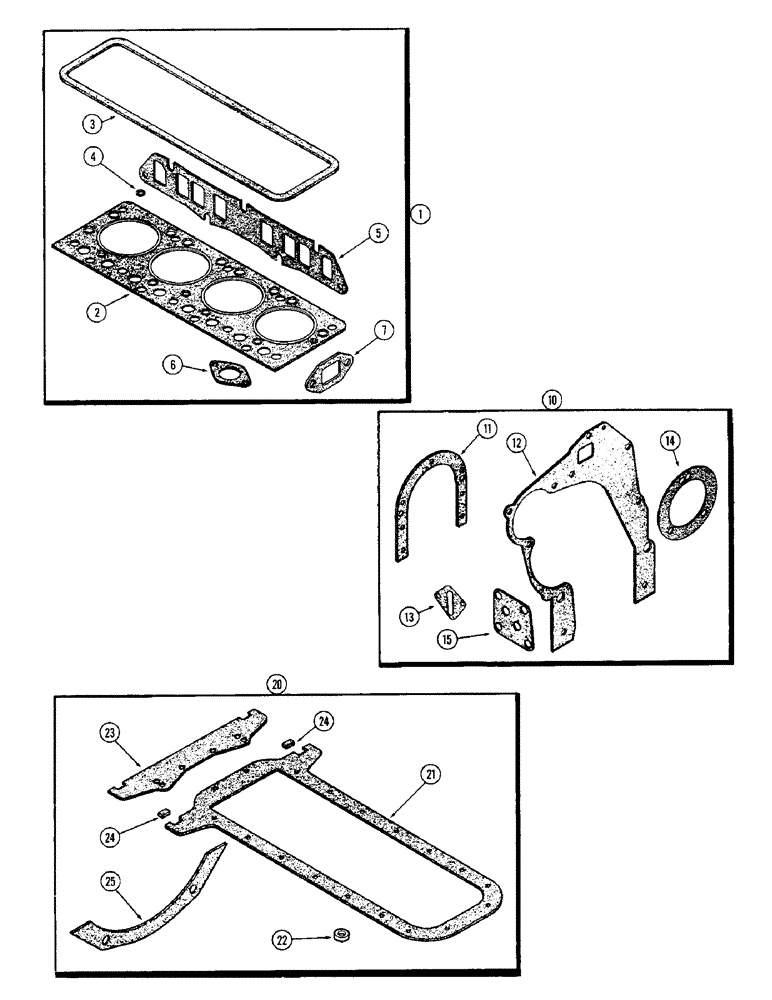

Запчасти Case IH M570AT (020) - ENGINE GASKET KITS, (159) SPARK IGNITION ENGINE (02) - ENGINE

1

G11963

GASKET

VALVE GRIND KIT - cylinder head, Includes: Ref. 2 - 7

1шт.

2

G46870

CYLINDER HEAD GASKET

-, Serial Range: head-block

1шт.

3

A30009

GASKET

- valve cover

1шт.

4

G46851

SEAL

- valve stem

4шт.

5

A30030

GASKET

- manifold

1шт.

6

G46826

GASKET

- carburetor

1шт.

7

A30003

GASKET

- water outlet elbow

1шт.

10

A41465

GASKET

CYLINDER BLOCK KIT - engine, Includes: Ref. 11 - 15

1шт.

11

A38196

GASKET

- rear oil seal retainer

1шт.

12

A38226

GASKET

- timing gear cover

1шт.

13

G46902

GASKET

- fuel pump opening

1шт.

14

A38083

GASKET

WATER - water pump

1шт.

15

G46852

GASKET

- oil pump cover

1шт.

20

A40711

GASKET KIT

OIL PAN KIT - engine, Includes: Ref. 21 - 25

1шт.

21

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A40711)

1шт.

22

A58608

GASKET

- drain plug (3/4" I.D.)

1шт.

23

A36653

GASKET

- radius rod support

1шт.

24

A11604

OIL PAN GASKET SET

- rear, oil pan support

2шт.

25

G46913

GASKET

- block to torque tube

1шт.
