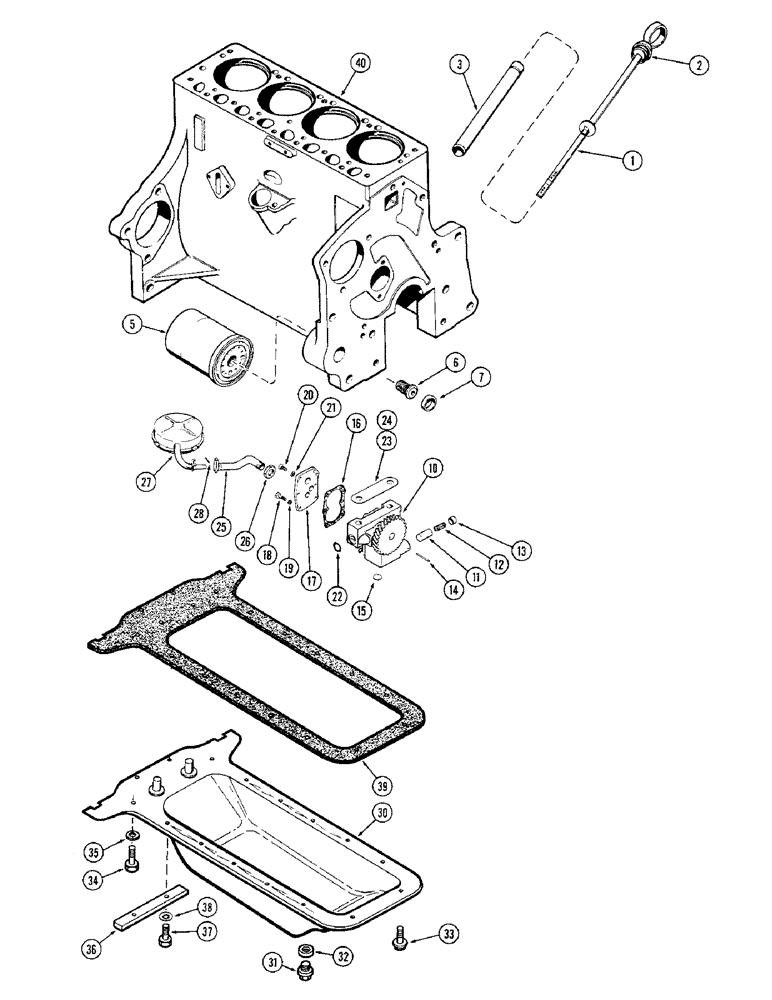

Запчасти Case IH M570AT (018) - OIL PUMP, OIL FILTER, OIL PAN, (159) SPARK IGNITION ENGINE (02) - ENGINE

1

A37148

DIPSTICK

ASSY. - oil level, Includes: Ref. 2

1шт.

2

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - seal, dipstick

2шт.

3

A37149

TUBE

- oil filler & dipstick

1шт.

5

A37189

FILTER, ELEMENT

FILTER - engine oil

1шт.

6

A153552

ADAPTER

-, Serial Range: filter-block

1шт.

7

A37207

X

PLUG - adapter opening

1шт.

10

G11844

PUMP, ENGINE OIL

PUMP ASSY. - oil, engine, Includes: Ref. 11 - 21

1шт.

11

A155144

VALVE, PRESSURE RELI

- relief

1шт.

12

G48513

VALVE SPRING

SPRING - relief valve

1шт.

13

A29260

RETAINER

- relief spring

1шт.

14

138-51

LOCK PIN,1/8" x 3/8", Slotted

PIN, 1/8" x 3/8", Slotted

1шт.

15

41-102

PLUG,Exp, 1/2"

- pump body

2шт.

16

G46852

GASKET

- pump cover

1шт.

17

NSS

NOT SOLD SEPARAT

COVER - pump body

1шт.

18

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

18

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

20

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- mach., 1/4 x 5/8" N.C. flat hd.

2шт.

21

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, Ext Csk Tooth, 1/4"

2шт.

22

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - oil port

1шт.

23

G11337

SHIM,.002" Thk

Pump to block .002" Thk

1шт.

24

G11338

SHIM,.005" Thk

Pump to block .005" Thk

1шт.

25

G45766

PIPE, EXHAUST SYSTEM

PIPE - suction

1шт.

26

223-207

LOCK NUT

NUT - lock, pipe to pump (3/8")

1шт.

27

A30126

FLOAT ASSY. (Includes screen)

1шт.

28

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

30

A38026

OIL PAN ASSY. - engine, Includes: Ref. 31 and 32

1шт.

31

221-689

DRAIN PLUG,Hex Hd, 3/4"-16

PLUG - drain, magnetic

1шт.

32

A58608

GASKET

- drain plug

1шт.

33

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - sems, oil pan (5/16 x 3/4")

12шт.

34

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Rear Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

35

195-400

WASHER

- sealing (5/16")

2шт.

36

G11372

STRIP

- reinforcing

1шт.

37

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

38

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

39

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order from Fig. 20)

1шт.

40

NSS

NOT SOLD SEPARAT

BLOCK - cylinder (Order from Fig. 8)

1шт.
