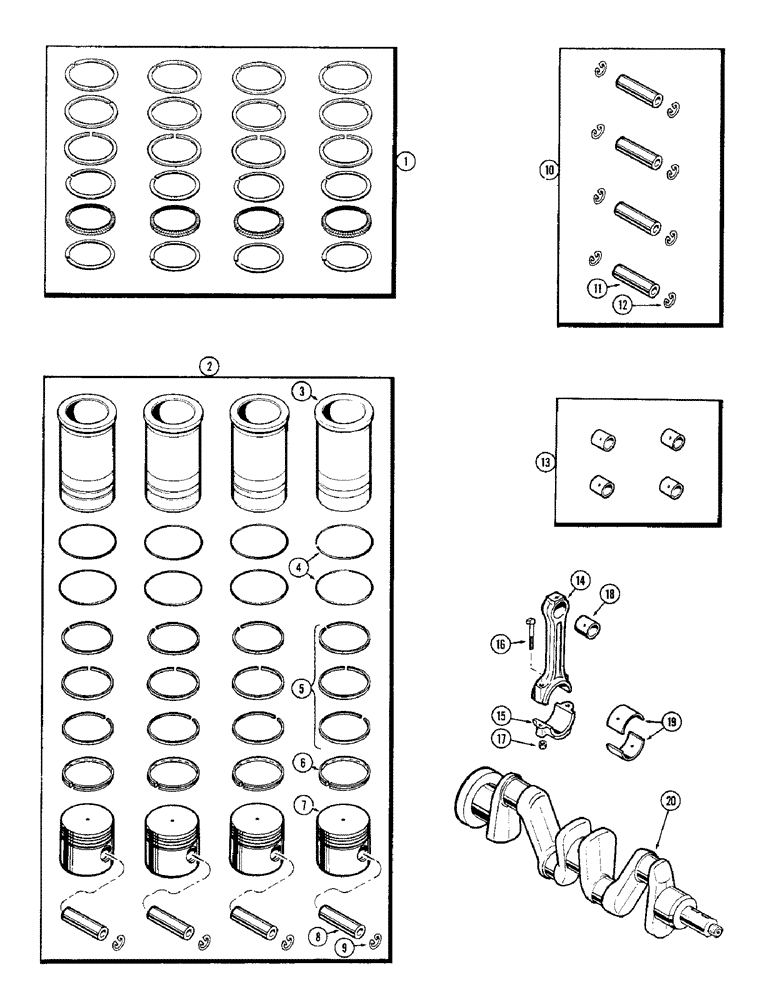

Запчасти Case IH M570AT (016) - PISTON ASSEMBLY AND CONNECTING RODS, (159) SPARK IGNITION ENGINE (02) - ENGINE

1

G11994

PACKAGE, RINGS

RING KIT - 4 pistons (2 in 1 chrome set)

1шт.

2

G11958

SET

PISTON & SLEEVE KIT - matched set of 4, Includes: Ref. 3 - 9

1шт.

3

G2104

SLEEVE CYLINDER

SLEEVE - cylinder

4шт.

4

G46909

O-RING,3.112" ID x 3.344" OD

"O" RING - sleeve packing

8шт.

5

G4810

RING, PISTON

RING - compression, piston

12шт.

6

G4811

RING, PISTON

RING - oil control, piston

4шт.

7

G2105

PISTON

- cylinder

4шт.

8

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 10)

4шт.

9

A26915

RING, SNAP

RING - retaining (See ref. 10)

8шт.

10

A36030

KIT

PIN KIT - piston, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

PIN - (Order A36030)

4шт.

12

A26915

RING, SNAP

RING - retaining

8шт.

13

G11922

BUSHING

KIT - connecting rod (Set of 4)

1шт.

14

G11172

STEM

ROD ASSY. - connecting, Includes: Ref. 15 - 18

4шт.

15

NSS

NOT SOLD SEPARAT

CAP - (Order G11172)

1шт.

16

G11701

BOLT

- cap

2шт.

17

G49060

NUT

- cap bolt

2шт.

18

NSS

NOT SOLD SEPARAT

BUSHING - (Order ref. 13)

1шт.

19

A36500

SEAL

LINER KIT - bearing, conn. rod (Std.) (Set of 2)

4шт.

19

A36501

BEARING LINER

LINER KIT - brg., conn. rod (-.002") (Set of 2)

4шт.

19

A36502

LINING

LINER KIT - brg., conn. rod (-.010") (Set of 2)

4шт.

19

A36503

BEARING LINER

LINER KIT - brg., conn. rod (-.020") (Set of 2)

4шт.

19

A36504

KIT

LINER KIT - brg., conn. rod (-.030") (Set of 2)

4шт.

20

A37210

CRANKSHAFT

- engine

1шт.
