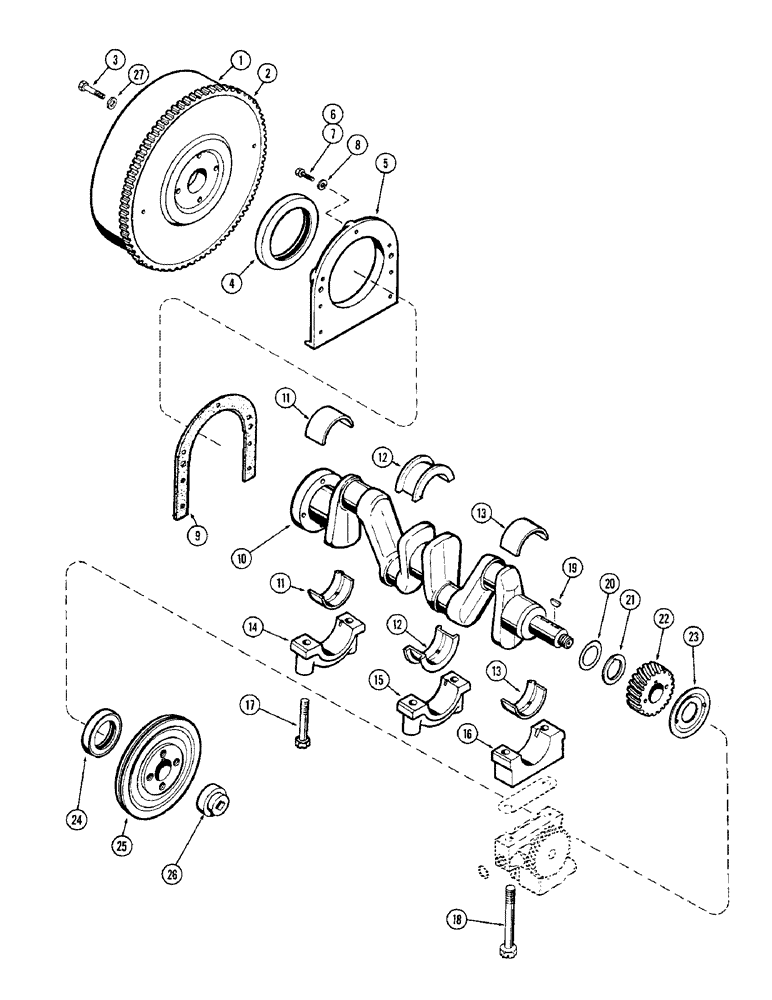

Запчасти Case IH M570AT (014) - CRANKSHAFT AND FLYWHEEL, (159) SPARK IGNITION ENGINE (02) - ENGINE

1

G11860

FLYWHEEL

ASSY. - engine crankshaft, Includes: Ref. 2

1шт.

2

G11710

GEAR

- ring (135T)

1шт.

3

121-300

LOCK BOLT,Lock Place, Hex, 7/16" - 20 x 1 1/8", Gr 8

BOLT - flywheel (7/16 x 1-1/8 N.F. place gr. 8)

4шт.

4

A36610

OIL SEAL

- oil, crankshaft rear

1шт.

5

A38390

RETAINER

- oil seal, rear

1шт.

6

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

7

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

9

A38196

GASKET

- retainer, rear oil seal

1шт.

10

A37210

CRANKSHAFT

- engine

1шт.

11

G37051

KIT

LINER KIT - rear bearing (Std.) (Set of 2)

1шт.

11

G37052

KIT

LINER KIT - rear bearing (-.002") (Set of 2)

1шт.

11

A42322

FIP KIT

LINER KIT - rear bearing (-.010") (Set of 2)

1шт.

11

G37053

KIT

LINER KIT - rear bearing (-.020") (Set of 2)

1шт.

11

G37054

KIT

LINER KIT - rear bearing (-.040") (Set of 2)

1шт.

12

G37047

KIT

LINER KIT - center bearing (Std.) (Set of 2)

1шт.

12

G37048

KIT

LINER KIT - center bearing (-.002") (Set of 2)

1шт.

12

A42321

FIP KIT

LINER KIT - center bearing (-.010") (Set of 2)

1шт.

12

G37049

KIT

LINER KIT - center bearing (-.020") (Set of 2)

1шт.

12

G37050

KIT

LINER KIT - center bearing (-.040") (Set of 2)

1шт.

13

G37043

KIT

LINER KIT - front bearing (Std.) (Set of 2)

1шт.

13

G37044

KIT

LINER KIT - front bearing (-.002") (Set of 2)

1шт.

13

A42320

BEARING LINER

LINER KIT - front bearing (-.010") (Set of 2)

1шт.

13

G37045

KIT

LINER KIT - front bearing (-.020") (Set of 2)

1шт.

13

G37046

KIT

LINER KIT - front bearing (-.040") (Set of 2)

1шт.

14

G2037

CAP

- rear bearing liners

1шт.

15

G2036

CAP

- center bearing liners

1шт.

16

G2035

CAP

- front bearing liners

1шт.

17

G49037

BOLT

- bearing cap (1/2" x 3")

4шт.

18

G49059

BOLT

- oil pump & frt. brg. cap (1/2" x 4-3/4")

2шт.

19

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley & gear to crankshaft

2шт.

20

A29293

SHIM,.010" Thk

Thrust .010" Thk

1шт.

21

A29294

BUSHING

SPACER - thrust

1шт.

22

A29263

GEAR

- crankshaft (24T)

1шт.

23

A29259

SLINGER

- oil

1шт.

24

A36609

OIL SEAL

- oil, crankshaft front

1шт.

25

G11342

X

PULLEY - fan & alternator drive

1шт.

26

A35673

NUT

-, Serial Range: pulley-crankshaft

1шт.

27

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- flywheel bolt (29/64 x 3/4 x 1/16")

4шт.
